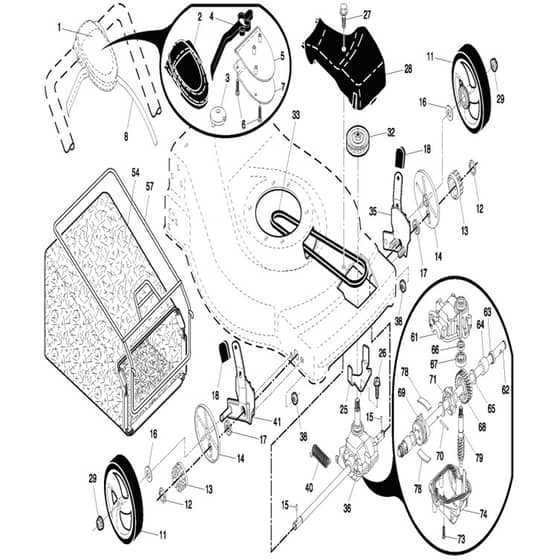

McCulloch PRE6556 - 96141009404 - 2008-02 - Drive Parts Diagram

Name: McCulloch PRE6556 - 96141009404 - 2008-02 - Drive Parts Diagram
SKU: pre6556_96141009404_2008_02_drive-group
Price: 0.49 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch PRE6556 - 96141009404 - 2008-02 - Drive Parts Diagram

Description

McCulloch PRE6556 - 96141009404 - 2008-02 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 40 62-57 Out of stock	Control.Dr.Ez.Fgd.Short.Bk/Red	£59.76 £49.80
2	HV532 41 35-42 Out of stock	Cover	£18.79 £15.66
3	HV532 40 62-62 Out of stock	Pulley	£10.43 £8.69
5	HV532 41 35-41 Out of stock	Cover	£15.85 £13.21
6	HV532 18 16-98 Out of stock	Screw	£1.39 £1.16
7	HV532 40 07-23 Out of stock	Bracket	£14.81 £12.34
8	HV532 40 62-59 In stock	Cable Assy	£46.69 £38.91
11	HV583 71 95-01 Out of stock	Wheel	£21.06 £17.55
12	HV812 00 00-58 Out of stock	E-Clip	£0.59 £0.49
13	HV532 40 38-49 Out of stock	Pinion	£8.06 £6.72
14	HV581 84 04-01 Out of stock	Dust Cover	£7.97 £6.64
15	HV532 40 48-45 Out of stock	Pawl Drive	£5.21 £4.34
16	HV532 06 77-25 Out of stock	Washer	£7.20 £6.00
17	HV587 07 02-02 Out of stock	Bearing	£19.55 £16.29
18	HV532 70 10-37 Out of stock	Knob	£4.72 £3.93
25	HV532 43 17-11 Out of stock	Guide Courroie	£8.17 £6.81
26	HV532 16 34-09 Out of stock	Screw	£1.10 £0.92
27	HV532 17 52-62 Out of stock	Screw	£1.84 £1.53
29	HV532 40 91-48 Out of stock	Nut	£2.81 £2.34
32	HV532 44 32-62 Out of stock	Pulley	£15.50 £12.92
33	HV532 19 68-57 Out of stock	Belt	£19.88 £16.57
35	HV532 43 84-85 Out of stock	Wheel Adj Kit Lh	£27.02 £22.52
35	HV532 43 84-86 Out of stock	Wheel Adj Kit Rh	£27.06 £22.55
36	HV532 40 48-34 Out of stock	Gearcase Assy Complete	£82.84 £69.03
38	HV586 66 89-01 Out of stock	Nut	£2.20 £1.83
40	HV532 40 65-58 Out of stock	Spring	£2.96 £2.47
62	HV532 41 07-28 Out of stock	Shaft	£55.52 £46.27
63	HV532 18 35-08 Out of stock	Seal Output Shaft	£7.32 £6.10
64	HV532 18 35-11 Out of stock	Bushing	£7.12 £5.93
68	HV532 41 07-29 Out of stock	Gear	£14.14 £11.78
70	HV532 41 27-46 Out of stock	Pen	£4.15 £3.46
71	HV532 41 07-30 Out of stock	Moveable Dog Clutch	£12.36 £10.30
74	HV532 41 07-34 Out of stock	Case	£10.61 £8.84
