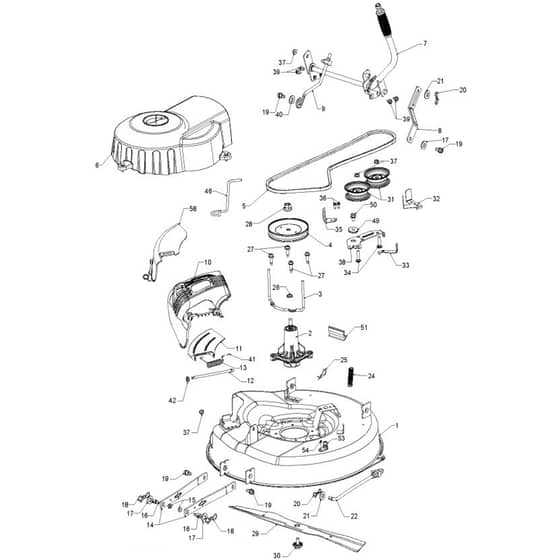

McCulloch MOWCART - 96021000801 - 2011-08 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch MOWCART - 96021000801 - 2011-08 - Mower Deck - Cutting Deck Parts Diagram
SKU: mowcart_96021000801_2011_08_mower_deck_cutting_deck-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MOWCART - 96021000801 - 2011-08 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch MOWCART - 96021000801 - 2011-08 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 19 28-70 Out of stock	Spindle	£124.66 £103.88
3	HV589 67 61-03 Out of stock	Keeper	£11.86 £9.88
4	HV532 43 25-94 Out of stock	Pulley	£23.46 £19.55
5	HV532 42 85-78 Out of stock	Belt	£49.31 £41.09
7	HV532 43 86-91 Out of stock	Lifting Lever Assy	£73.37 £61.14
12	HV595 29 70-01 Out of stock	Shaft	£13.98 £11.65
13	HV532 19 70-26 Out of stock	Torsion Spring	£10.68 £8.90
15	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
16	HV532 19 51-61 Out of stock	Stud	£2.38 £1.98
17	HV819 19 19-12 Out of stock	Washer	£4.40 £3.67
18	HV532 19 42-09 Out of stock	Spring	£4.16 £3.47
19	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
20	HV532 19 42-08 Out of stock	Pin	£1.26 £1.05
21	HV819 17 19-12 Out of stock	Washer	£3.82 £3.18
24	HV532 42 95-31 Out of stock	Spring	£13.09 £10.91
25	HV532 00 44-97 Out of stock	Retainer Ring	£1.51 £1.26
26	HV532 18 76-90 In stock	Washer	£2.96 £2.47
27	HV584 95 39-01 Out of stock	Screw	£4.74 £3.95
28	HV596 13 48-01 Out of stock	Nut	£1.19 £0.99
29	HV532 43 90-52 Out of stock	Blade	£49.93 £41.61
30	HV532 19 30-03 In stock	Screw	£15.37 £12.81
31	HV532 17 79-68 Out of stock	Pulley	£49.49 £41.24
33	HV532 19 34-14 Out of stock	Belt Guide	£5.66 £4.72
34	HV596 13 61-01 Out of stock	Bolt	£6.37 £5.31
35	HV532 40 01-30 Out of stock	Arm	£17.21 £14.34
36	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
37	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
39	HV817 49 05-08 Out of stock	Screw	£2.96 £2.47
40	HV734 11 78-01 Out of stock	Washer	£3.43 £2.86
41	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
42	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
43	HV532 12 56-31 Out of stock	Handle	£10.22 £8.52
46	HV532 43 86-10 Out of stock	Keeper	£5.93 £4.94
49	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
50	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
51	HV532 40 47-42 Out of stock	Damping Piece	£9.66 £8.05
53	HV532 15 29-27 Out of stock	Screw	£2.08 £1.73
54	HV532 41 55-98 Out of stock	Hose Coupling	£5.04 £4.20
