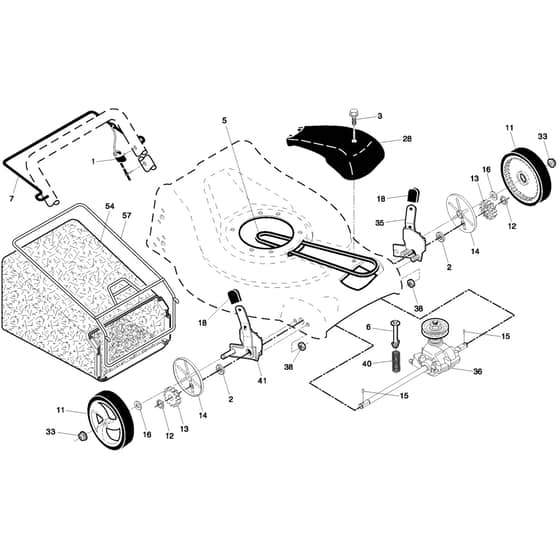

McCulloch MM53-650 CMDW - 96141021300 - 2009-01 - Drive Parts Diagram

Ref. Img. Part No. Details
  1 Control
Control
HV532 19 46-53 Out of stock
Control
£23.68 £19.73

  2 Bearing
Bearing
HV587 07 02-02 Out of stock
Bearing
£19.55 £16.29

  6 Pin Retaining Screw
Pin Retaining Screw
HV532 15 04-95 Out of stock
Pin Retaining Screw
£3.76 £3.13

  7 Bar
Bar
HV532 19 84-53 Out of stock
Bar
£19.62 £16.35

  11 Wheel
Wheel
HV583 71 95-01 Out of stock
Wheel
£21.06 £17.55

  12 E-Clip
E-Clip
HV812 00 00-58 Out of stock
E-Clip
£0.59 £0.49

  13 Pinion
Pinion
HV532 40 38-49 Out of stock
Pinion
£8.06 £6.72

  14 Dust Cover
Dust Cover
HV581 84 04-01 Out of stock
Dust Cover
£7.97 £6.64

  15 Pawl Drive
Pawl Drive
HV532 40 48-45 Out of stock
Pawl Drive
£5.21 £4.34

  16 Washer
Washer
HV532 06 77-25 Out of stock
Washer
£7.20 £6.00

  18 Knob
Knob
HV532 08 78-77 Out of stock
Knob
£4.06 £3.38

  27 Screw
Screw
HV532 17 52-62 Out of stock
Screw
£1.84 £1.53

  29 V-Belt
V-Belt
HV532 17 54-36 Out of stock
V-Belt
£21.08 £17.57

  33 Nut
Nut
HV532 40 91-48 Out of stock
Nut
£2.81 £2.34

  35 Wheel Adj Kit Lh
Wheel Adj Kit Lh
HV532 43 84-85 Out of stock
Wheel Adj Kit Lh
£27.02 £22.52

  36 Gearbox
Gearbox
HV532 41 52-25 Out of stock
Gearbox
£145.61 £121.34

  38 Nut
Nut
HV586 66 89-01 Out of stock
Nut
£2.20 £1.83

  40 Spring
Spring
HV532 13 70-90 Out of stock
Spring
£3.31 £2.76

  41 Wheel Adj Kit Rh
Wheel Adj Kit Rh
HV532 43 84-86 Out of stock
Wheel Adj Kit Rh
£27.06 £22.55

  54 Grassbag
Grassbag
HV532 41 06-67 Out of stock
Grassbag
£59.46 £49.55

  57 Frame
Frame
HV532 41 19-50 Out of stock
Frame
£65.48 £54.57
