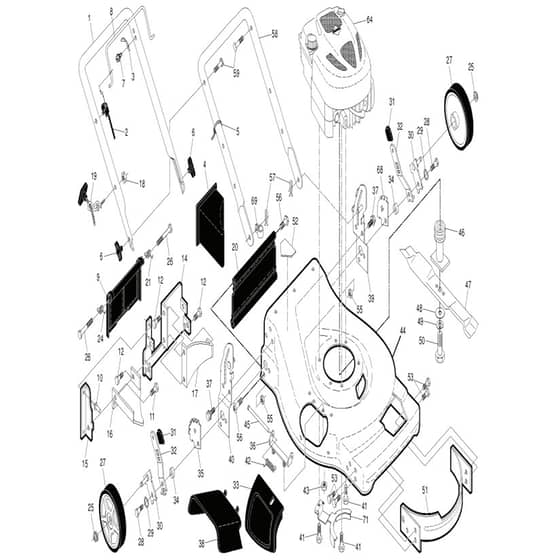

McCulloch MC625 FX - 96142009700 - 2010-11 - Frame & Engine Parts Diagram

Name: McCulloch MC625 FX - 96142009700 - 2010-11 - Frame & Engine Parts Diagram
SKU: mc625_fx_96142009700_2010_11_frame_engine-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC625 FX - 96142009700 - 2010-11 - Frame & Engine Parts Diagram

Description

McCulloch MC625 FX - 96142009700 - 2010-11 - Frame & Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 18 35-67 Out of stock	Cable	£23.84 £19.87
3	HV532 85 07-33 Out of stock	Plate	£4.96 £4.13
4	HV532 16 66-49 Out of stock	Mulcher Plug	£32.72 £27.27
6	HV532 18 55-77 Out of stock	Knob	£6.07 £5.06
7	HV532 75 06-34 Out of stock	Screw	£1.19 £0.99
10	HV532 12 84-15 Out of stock	Rivet	£2.60 £2.17
12	HV817 06 04-10 Out of stock	Screw	£1.84 £1.53
16	HV532 17 71-33 Out of stock	Plate	£12.65 £10.54
18	HV532 05 06-75 Out of stock	Nut	£1.81 £1.51
19	HV532 19 47-88 Out of stock	Guide	£3.43 £2.86
25	HV532 40 91-48 Out of stock	Nut	£2.81 £2.34
26	HV532 18 41-93 Out of stock	Bolt	£6.04 £5.03
27	HV532 41 21-73 Out of stock	Wheel	£37.37 £31.14
29	HV532 40 16-30 Out of stock	Washer	£2.69 £2.24
33	HV532 19 60-53 Out of stock	Mulcher Door	£28.39 £23.66
34	HV532 40 16-29 Out of stock	Spacer	£2.18 £1.82
36	HV532 17 57-35 Out of stock	Hinge	£6.82 £5.68
37	HV532 42 88-67 Out of stock	Bolt	£3.20 £2.67
38	HV532 40 25-74 Out of stock	Deflector	£11.68 £9.73
42	HV532 19 30-00 Out of stock	Hinge	£5.84 £4.87
43	HV586 66 89-01 Out of stock	Nut	£2.20 £1.83
45	HV532 17 56-50 Out of stock	Rod	£4.51 £3.76
46	HV532 42 11-76 Out of stock	Adapter	£30.88 £25.73
47	HV532 40 67-13 Out of stock	Blade	£28.48 £23.73
48	HV532 85 10-74 Out of stock	Washer	£4.06 £3.38
49	HV596 23 87-01 Out of stock	Washer	£2.46 £2.05
50	HV532 85 10-84 Out of stock	Screw	£6.26 £5.22
53	HV817 60 04-06 Out of stock	Screw	£1.75 £1.46
55	HV596 32 26-01 Out of stock	Nut	£3.14 £2.62
57	HV532 05 17-93 Out of stock	Pin	£3.88 £3.23
59	HV532 19 15-74 Out of stock	Screw	£4.74 £3.95
69	HV532 19 79-91 Out of stock	Clip	£0.60 £0.50
