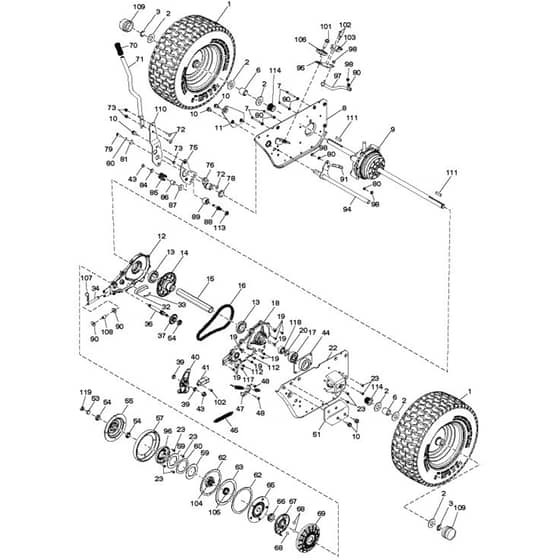

McCulloch MC30 - 96028000200 - 2011-04 - Drive Parts Diagram

Name: McCulloch MC30 - 96028000200 - 2011-04 - Drive Parts Diagram
SKU: mc30_96028000200_2011_04_drive-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC30 - 96028000200 - 2011-04 - Drive Parts Diagram

Description

McCulloch MC30 - 96028000200 - 2011-04 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 44 20-79 Out of stock	Wheel	£133.55 £111.29
2	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
3	HV812 00 00-01 Out of stock	Retainer Ring	£0.60 £0.50
10	HV532 42 88-67 Out of stock	Screw	£3.20 £2.67
11	HV532 43 67-41 Out of stock	Bracket	£6.37 £5.31
12	HV532 44 74-24 Out of stock	Case	£63.97 £53.31
20	HV532 00 62-66 Out of stock	Washer	£2.36 £1.97
41	HV539 10 10-80 Out of stock	Switch	£17.34 £14.45
43	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
51	HV532 43 67-39 Out of stock	Bracket	£6.37 £5.31
53	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
57	HV532 43 65-59 Out of stock	Wheel	£18.34 £15.28
68	HV532 44 58-17 Out of stock	Bearing	£4.38 £3.65
70	HV532 41 15-55 Out of stock	Grip	£8.47 £7.06
71	HV532 43 68-65 Out of stock	Tube	£12.12 £10.10
72	HV872 11 04-06 Out of stock	Bolt	£1.57 £1.31
73	HV873 68 04-00 Out of stock	Nut	£1.63 £1.36
76	HV532 18 35-00 Out of stock	Lever	£5.75 £4.79
80	HV596 02 98-01 Out of stock	Washer	£2.44 £2.03
81	HV734 11 54-41 Out of stock	Washer	£2.46 £2.05
90	HV734 11 65-41 Out of stock	Washer	£3.43 £2.86
101	HV817 06 06-24 Out of stock	Screw	£5.53 £4.61
106	HV532 19 43-21 Out of stock	Spacer	£11.27 £9.39
107	HV532 00 44-97 Out of stock	Retainer Ring	£1.51 £1.26
109	HV532 19 32-68 Out of stock	Hub Cap	£4.76 £3.97
110	HV532 42 84-61 Out of stock	Bracket	£13.90 £11.58
111	HV532 12 35-83 Out of stock	Key	£6.16 £5.13
113	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
114	HV532 43 62-82 Out of stock	Bushing	£20.30 £16.92
119	HV873 22 06-00 Out of stock	Nut	£2.96 £2.47
