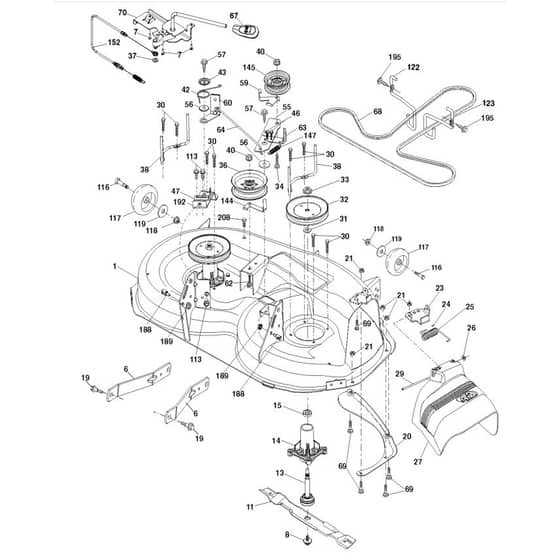

McCulloch MC195H42LT - 96042011400 - 2009-11 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch MC195H42LT - 96042011400 - 2009-11 - Mower Deck - Cutting Deck Parts Diagram
SKU: mc195h42lt_96042011400_2009_11_mower_deck_cutting_deck-group
Price: 0.87 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC195H42LT - 96042011400 - 2009-11 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch MC195H42LT - 96042011400 - 2009-11 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 19 28-70	Spindle	Out of stock	£118.68 £98.90
7	HV532 41 63-58	Screw	Out of stock	£1.67 £1.39
8	HV532 19 30-03	Screw	In stock	£16.43 £13.69
11	HV532 13 89-71	Blade For Bagging Or Discharge	Out of stock	£27.83 £23.19
11	HV532 13 41-49	Ride On Blade	In stock	£28.81 £24.01
11	HV532 42 27-19	Blade	Out of stock	£29.92 £24.93
11	HV532 13 97-75	Ride On Blade	Out of stock	£28.15 £23.46
13	HV532 19 28-72	Shaft Assy	Out of stock	£153.76 £128.13
14	HV587 81 97-01	Bearing Housing	Out of stock	£150.84 £125.70
15	HV532 11 04-85	Bearing	Out of stock	£7.69 £6.41
19	HV532 19 65-39	Bolt	Out of stock	£5.94 £4.95
20	HV532 15 97-70	Rail	Out of stock	£22.98 £19.15
23	HV532 19 25-57	Hinge	Out of stock	£11.23 £9.36
24	HV532 10 53-04	Hub Cap	Out of stock	£2.93 £2.44
25	HV532 19 70-26	Torsion Spring	Out of stock	£10.68 £8.90
26	HV532 11 04-52	Nut	Out of stock	£1.64 £1.37
27	HV532 40 30-04	Shield	Out of stock	£49.27 £41.06
29	HV595 29 70-01	Shaft	Out of stock	£13.98 £11.65
30	HV584 95 39-01	Screw	Out of stock	£5.04 £4.20
31	HV532 18 76-90	Washer	Out of stock	£3.04 £2.53
32	HV532 19 59-45	Pulley	Out of stock	£47.77 £39.81
33	HV596 13 48-01	Nut	Out of stock	£1.04 £0.87
34	HV596 13 61-01	Bolt	Out of stock	£6.54 £5.45
36	HV532 19 61-06	Pulley	Out of stock	£79.80 £66.50
40	HV532 40 91-49	Nut	Out of stock	£4.51 £3.76
42	HV532 19 84-10	Spring	Out of stock	£4.26 £3.55
43	HV532 19 72-56	Spring	Out of stock	£4.03 £3.36
46	HV532 13 77-29	Screw	Out of stock	£2.40 £2.00
47	HV532 19 72-50	Bracket	Out of stock	£7.48 £6.23
55	HV531 16 94-01	Arm	In stock	£19.13 £15.94
56	HV532 19 90-92	Spacer	Out of stock	£6.66 £5.55
57	HV817 00 06-16	Screw	Out of stock	£5.33 £4.44
62	HV872 11 06-16	Bolt	Out of stock	£5.89 £4.91
63	HV532 19 94-78	Arm	Out of stock	£19.79 £16.49
67	HV532 40 30-12	Handle	Out of stock	£11.28 £9.40
68	HV598 55 91-01	Belt	Out of stock	£58.84 £49.03
69	HV596 13 64-01	Bolt	In stock	£3.26 £2.72
70	HV532 19 83-32	Clutch	Out of stock	£45.97 £38.31
113	HV817 00 05-10	Bolt	Out of stock	£3.04 £2.53
117	HV532 18 86-06	Wheel	Out of stock	£15.25 £12.71
118	HV596 32 26-01	Nut	Out of stock	£3.24 £2.70
119	HV734 11 72-01	Washer	Out of stock	£2.02 £1.68
122	HV531 16 95-01	Belt Guide Left	Out of stock	£18.73 £15.61
123	HV531 16 97-01	Belt Guide Right	Out of stock	£12.98 £10.82
145	HV532 17 79-68	Pulley	Out of stock	£50.77 £42.31
147	HV532 40 19-71	Spring	Out of stock	£4.67 £3.89
152	HV532 43 51-11	Cable	In stock	£56.68 £47.23
188	HV532 19 51-61	Stud	Out of stock	£2.44 £2.03
189	HV873 90 05-00	Nut	Out of stock	£2.26 £1.88
195	HV817 00 06-12	Screw	Out of stock	£4.87 £4.06
208	HV817 67 06-08	Screw	Out of stock	£4.42 £3.68
