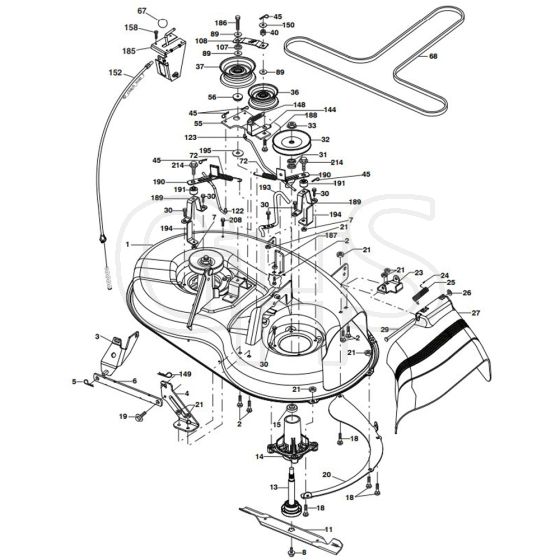

McCulloch MC13538LT - 96012010301 - 2010-06 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch MC13538LT - 96012010301 - 2010-06 - Mower Deck - Cutting Deck Parts Diagram
SKU: mc13538lt_96012010301_2010_06_mower_deck_cutting_deck-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC13538LT - 96012010301 - 2010-06 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch MC13538LT - 96012010301 - 2010-06 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 19 25-58 Out of stock	Frein De Lame Cpt. (Includes Stand+ Arm And Guard Components)	£19.57 £16.31
1	HV532 19 25-56 Out of stock	Deck Shell	£261.30 £217.75
1	HV532 19 28-70 Out of stock	Spindle (Includes Housing+ Shaft Assembly+ And Bearing -Only - Pulley/Nut/Washer And Blade	£124.66 £103.88
2	HV872 14 05-06 Out of stock	Bolt	£4.20 £3.50
3	HV532 13 80-17 Out of stock	Bracke	£16.12 £13.43
5	HV596 91 96-01 Out of stock	Retainer Ring	£3.91 £3.26
6	HV532 17 80-24 Out of stock	Lever	£19.08 £15.90
7	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
8	HV532 19 30-03 Out of stock	Screw	£15.37 £12.81
11	HV581 11 63-02 In stock	Ride On Blade	£24.16 £20.13
13	HV532 19 28-72 Out of stock	Shaft Assy	£153.76 £128.13
14	HV587 81 97-01 Out of stock	Bearing Housing	£153.76 £128.13
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
18	HV596 13 64-01 Out of stock	Bolt	£3.16 £2.63
19	HV532 13 28-27 Out of stock	Spec. Bolt	£5.46 £4.55
20	HV531 17 04-01 Out of stock	Baffle	£27.28 £22.73
23	HV532 19 25-57 Out of stock	Hinge	£10.96 £9.13
24	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
25	HV532 19 70-26 Out of stock	Torsion Spring	£10.68 £8.90
26	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
29	HV595 29 70-01 Out of stock	Shaft	£13.98 £11.65
30	HV584 95 39-01 Out of stock	Screw	£4.74 £3.95
31	HV532 18 76-90 In stock	Washer	£2.96 £2.47
32	HV532 17 34-35 Out of stock	Pulley	£28.51 £23.76
33	HV596 13 48-01 Out of stock	Nut	£1.19 £0.99
36	HV597 02 50-01 Out of stock	Pulley	£47.03 £39.19
37	HV532 19 31-98 Out of stock	Pulley	£50.26 £41.88
40	HV596 32 26-01 Out of stock	Nut	£3.14 £2.62
45	HV532 00 44-97 Out of stock	Retainer Ring	£1.51 £1.26
55	HV532 13 38-40 Out of stock	Lever	£21.78 £18.15
56	HV532 16 57-23 Out of stock	Spacer	£9.58 £7.98
67	HV532 10 69-32 Out of stock	Knob	£8.47 £7.06
68	HV532 19 32-14 In stock	Belt	£59.04 £49.20
72	HV532 19 32-16 Out of stock	Ressort Retour Frein De Lame	£6.46 £5.38
107	HV532 13 35-02 Out of stock	Spacer	£5.77 £4.81
108	HV532 13 35-03 Out of stock	Lever	£12.30 £10.25
122	HV532 41 01-89 Out of stock	Rod Lh	£11.11 £9.26
123	HV532 41 01-90 Out of stock	Rod Rh	£12.86 £10.72
144	HV532 19 34-14 Out of stock	Belt Guide	£5.66 £4.72
148	HV532 16 90-22 Out of stock	Spring	£4.15 £3.46
149	HV532 16 58-98 Out of stock	Spring	£3.14 £2.62
150	HV734 11 54-41 Out of stock	Washer	£2.46 £2.05
152	HV532 19 32-35 Out of stock	Cable	£66.37 £55.31
158	HV539 99 00-71 Out of stock	Screw	£1.75 £1.46
185	HV532 18 82-34 Out of stock	Cable	£49.96 £41.63
186	HV596 56 40-05 Out of stock	Screw	£6.28 £5.23
187	HV532 19 34-12 Out of stock	Belt Guide	£6.35 £5.29
191	HV532 19 25-61 Out of stock	Spacer	£8.87 £7.39
193	HV532 19 34-13 Out of stock	Belt Guide Rh	£11.59 £9.66
208	HV817 67 06-08 Out of stock	Screw	£4.30 £3.58
