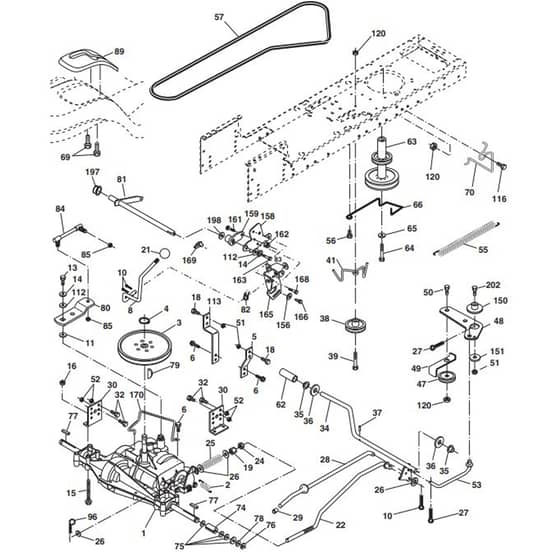

McCulloch MC13538LT - 96012010300 - 2010-06 - Drive Parts Diagram

Name: McCulloch MC13538LT - 96012010300 - 2010-06 - Drive Parts Diagram
SKU: mc13538lt_96012010300_2010_06_drive-group
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC13538LT - 96012010300 - 2010-06 - Drive Parts Diagram

Description

McCulloch MC13538LT - 96012010300 - 2010-06 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 14 66-82	Spring	Out of stock	£3.48 £2.90
3	HV532 12 36-66	Pulley	Out of stock	£72.00 £60.00
4	HV812 00 00-28	Clip	Out of stock	£0.56 £0.47
5	HV532 12 15-20	Bracket	Out of stock	£12.10 £10.08
10	HV876 02 04-16	Split Pin	Out of stock	£1.91 £1.59
14	HV596 02 98-01	Washer	Out of stock	£2.44 £2.03
15	HV874 49 05-44	Screw	Out of stock	£6.65 £5.54
16	HV596 04 05-01	Lock Nut	Out of stock	£2.06 £1.72
18	HV874 78 06-16	Bolt	Out of stock	£5.33 £4.44
21	HV532 10 69-33	Knob	Out of stock	£8.34 £6.95
22	HV532 13 08-04	Rod	Out of stock	£25.37 £21.14
24	HV873 22 06-00	Nut	Out of stock	£3.04 £2.53
25	HV532 15 13-32	Spring	Out of stock	£5.15 £4.29
28	HV532 17 57-65	Shaft	Out of stock	£10.97 £9.14
29	HV532 07 16-73	Cover	Out of stock	£3.02 £2.52
34	HV532 17 55-78	Shaft	Out of stock	£49.03 £40.86
35	HV532 12 01-83	Bearing	Out of stock	£5.96 £4.97
36	HV819 21 16-16	Washer	Out of stock	£2.41 £2.01
38	HV532 17 91-14	Pulley	Out of stock	£38.26 £31.88
39	HV872 11 06-22	Bolt	Out of stock	£6.62 £5.52
47	HV532 13 92-45	Pulley	Out of stock	£35.83 £29.86
48	HV532 15 44-07	Guide	Out of stock	£6.95 £5.79
49	HV532 12 32-05	Belt Guide	Out of stock	£5.82 £4.85
50	HV596 13 61-01	Bolt	Out of stock	£6.54 £5.45
51	HV596 32 26-01	Nut	Out of stock	£3.24 £2.70
55	HV532 10 57-09	Spring	Out of stock	£15.65 £13.04
56	HV817 06 06-20	Screw	Out of stock	£5.50 £4.58
57	HV532 13 82-55	Belt	Out of stock	£61.80 £51.50
63	HV532 17 54-10	Pulley	Out of stock	£95.40 £79.50
64	HV532 17 39-37	Bolt	Out of stock	£10.03 £8.36
65	HV810 04 07-00	Washer	Out of stock	£3.28 £2.73
66	HV531 15 10-01	Tensioner	Out of stock	£12.23 £10.19
69	HV532 14 24-32	Screw	Out of stock	£1.90 £1.58
70	HV532 13 46-83	Belt Guide	Out of stock	£10.75 £8.96
74	HV532 13 70-57	Spacer	Out of stock	£7.93 £6.61
75	HV532 12 17-49	Washer	Out of stock	£3.34 £2.78
76	HV812 00 00-01	Retainer Ring	Out of stock	£0.67 £0.56
77	HV532 12 35-83	Key	Out of stock	£6.48 £5.40
78	HV532 12 17-48	Washer	Out of stock	£5.17 £4.31
79	HV532 12 50-96	Woodruff Key	Out of stock	£6.95 £5.79
81	HV532 16 55-94	Shaft	Out of stock	£42.92 £35.77
82	HV532 16 57-11	Spring	Out of stock	£4.02 £3.35
96	HV532 00 44-97	Retainer Ring	Out of stock	£1.55 £1.29
112	HV734 11 54-41	Washer	Out of stock	£2.52 £2.10
113	HV532 12 72-85	Bracket	Out of stock	£12.92 £10.77
120	HV532 40 91-49	Nut	Out of stock	£4.51 £3.76
156	HV532 16 60-02	Washer	Out of stock	£4.15 £3.46
158	HV532 16 55-89	Bracket	Out of stock	£8.82 £7.35
159	HV532 44 43-04	Lever	Out of stock	£7.50 £6.25
161	HV872 11 04-07	Bolt	Out of stock	£2.35 £1.96
162	HV873 68 04-00	Nut	Out of stock	£2.26 £1.88
163	HV874 78 04-16	Bolt	Out of stock	£3.41 £2.84
166	HV817 49 05-10	Screw	Out of stock	£3.28 £2.73
168	HV532 16 54-92	Bolt	Out of stock	£4.19 £3.49
170	HV532 18 74-14	Keeper	Out of stock	£13.43 £11.19
197	HV532 16 96-13	Sleeve	Out of stock	£4.72 £3.93
202	HV872 11 06-14	Bolt	Out of stock	£5.80 £4.83
