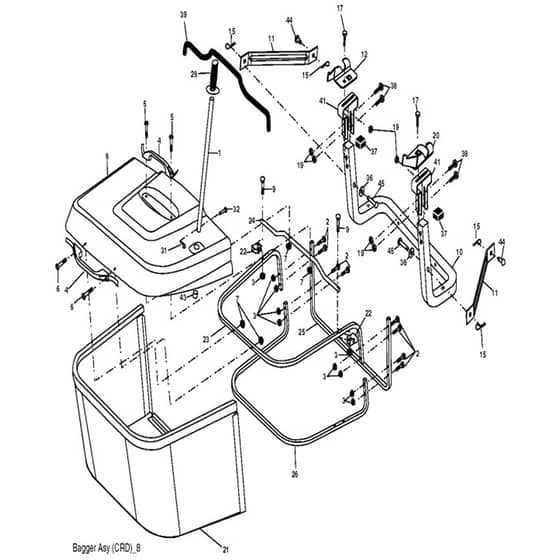

McCulloch MC1292RB - 96061001801 - 2008-11 - Bagger Parts Diagram

Name: McCulloch MC1292RB - 96061001801 - 2008-11 - Bagger Parts Diagram
SKU: mc1292rb_96061001801_2008_11_bagger-group
Price: 1.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC1292RB - 96061001801 - 2008-11 - Bagger Parts Diagram

Description

McCulloch MC1292RB - 96061001801 - 2008-11 - Bagger Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV586 66 89-01 Out of stock	Locknut	£2.20 £1.83
4	HV532 16 99-16 Out of stock	Handle	£14.69 £12.24
5	HV874 98 10-24 Out of stock	Screw	£2.96 £2.47
9	HV872 14 04-18 Out of stock	Bolt	£4.09 £3.41
11	HV532 16 57-19 Out of stock	Rod	£17.36 £14.47
12	HV532 18 88-48 Out of stock	Bracket	£12.35 £10.29
15	HV596 91 96-01 Out of stock	Retainer Ring	£3.91 £3.26
17	HV872 14 05-06 Out of stock	Bolt	£4.20 £3.50
19	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
20	HV532 18 88-47 Out of stock	Bracket	£13.15 £10.96
23	HV532 16 57-82 Out of stock	Frame	£171.71 £143.09
24	HV532 16 57-83 Out of stock	Frame	£23.58 £19.65
28	HV532 16 57-87 Out of stock	Handle	£8.17 £6.81
31	HV532 16 94-84 Out of stock	Pin	£3.89 £3.24
32	HV532 12 68-75 Out of stock	Rivet	£1.98 £1.65
37	HV532 17 54-01 Out of stock	Plug	£6.28 £5.23
38	HV872 01 05-20 Out of stock	Bolt	£5.65 £4.71
43	HV532 17 40-83 Out of stock	Plug	£7.26 £6.05
