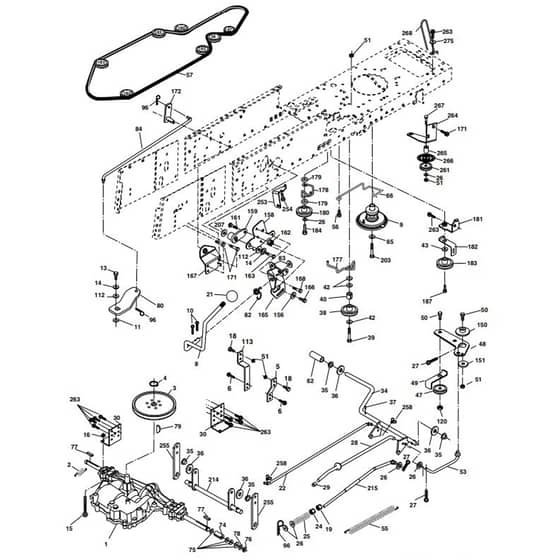

McCulloch MC1292RB - 96061001800 - 2008-11 - Drive Parts Diagram

Name: McCulloch MC1292RB - 96061001800 - 2008-11 - Drive Parts Diagram
SKU: mc1292rb_96061001800_2008_11_drive-group
Price: 0.45 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC1292RB - 96061001800 - 2008-11 - Drive Parts Diagram

Description

McCulloch MC1292RB - 96061001800 - 2008-11 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 14 66-82 Out of stock	Spring	£3.38 £2.82
3	HV584 45 07-01 Out of stock	Pulley	£91.50 £76.25
4	HV812 00 00-28 Out of stock	Clip	£0.54 £0.45
5	HV532 12 15-20 Out of stock	Bracket	£11.80 £9.83
9	HV582 21 97-01 Out of stock	Clutch	£366.49 £305.41
10	HV876 02 04-16 Out of stock	Split Pin	£1.86 £1.55
14	HV596 02 98-01 Out of stock	Washer	£2.44 £2.03
15	HV874 49 05-44 Out of stock	Screw	£6.47 £5.39
16	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
18	HV874 78 06-16 Out of stock	Bolt	£5.18 £4.32
21	HV532 10 69-33 Out of stock	Knob	£8.12 £6.77
24	HV873 22 06-00 Out of stock	Nut	£2.96 £2.47
25	HV532 15 13-32 Out of stock	Spring	£5.02 £4.18
28	HV532 17 57-65 Out of stock	Shaft	£10.69 £8.91
29	HV532 07 16-73 Out of stock	Cover	£2.94 £2.45
34	HV532 17 55-78 Out of stock	Shaft	£47.80 £39.83
35	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
36	HV819 21 16-16 Out of stock	Washer	£2.36 £1.97
38	HV532 16 59-36 Out of stock	Pulley	£34.57 £28.81
40	HV532 12 49-65 Out of stock	Spacer	£4.56 £3.80
42	HV734 11 72-01 Out of stock	Washer	£1.87 £1.56
47	HV532 13 92-45 Out of stock	Pulley	£35.83 £29.86
48	HV532 15 44-07 Out of stock	Guide	£6.78 £5.65
49	HV532 12 32-05 Out of stock	Belt Guide	£5.66 £4.72
50	HV596 13 61-01 Out of stock	Bolt	£6.37 £5.31
51	HV596 32 26-01 Out of stock	Nut	£3.14 £2.62
55	HV532 10 57-09 Out of stock	Spring	£15.65 £13.04
56	HV817 06 06-20 Out of stock	Screw	£5.36 £4.47
57	HV532 16 56-31 Out of stock	Belt	£68.16 £56.80
65	HV810 04 07-00 Out of stock	Washer	£3.20 £2.67
66	HV531 15 10-01 Out of stock	Tensioner	£11.92 £9.93
74	HV532 13 70-57 Out of stock	Spacer	£7.73 £6.44
75	HV532 12 17-49 Out of stock	Washer	£2.78 £2.32
76	HV812 00 00-01 Out of stock	Retainer Ring	£0.60 £0.50
77	HV532 12 35-83 Out of stock	Key	£6.16 £5.13
78	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
79	HV532 12 50-96 Out of stock	Woodruff Key	£6.78 £5.65
80	HV532 14 50-90 Out of stock	Lever	£8.83 £7.36
82	HV532 16 57-11 In stock	Spring	£3.91 £3.26
84	HV532 16 56-21 Out of stock	Link	£21.13 £17.61
96	HV532 00 44-97 Out of stock	Retainer Ring	£1.51 £1.26
112	HV734 11 54-41 Out of stock	Washer	£2.46 £2.05
120	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
150	HV532 16 58-50 Out of stock	Bushing	£37.15 £30.96
156	HV532 16 60-02 Out of stock	Washer	£4.06 £3.38
158	HV532 16 55-89 Out of stock	Bracket	£8.59 £7.16
159	HV532 44 43-04 Out of stock	Lever	£7.30 £6.08
161	HV872 11 04-07 Out of stock	Bolt	£2.28 £1.90
162	HV873 68 04-00 Out of stock	Nut	£1.63 £1.36
163	HV874 78 04-16 Out of stock	Bolt	£3.41 £2.84
166	HV817 49 05-10 Out of stock	Screw	£3.20 £2.67
167	HV532 16 55-88 Out of stock	Bracket	£22.13 £18.44
168	HV532 16 54-92 Out of stock	Bolt	£4.09 £3.41
171	HV817 49 06-08 Out of stock	Screw	£4.30 £3.58
177	HV532 16 59-32 Out of stock	Holder	£9.01 £7.51
178	HV532 16 59-33 Out of stock	Holder	£7.44 £6.20
179	HV532 12 09-58 Out of stock	Washer	£13.60 £11.33
180	HV532 16 56-30 Out of stock	Pulley	£36.92 £30.77
183	HV532 19 95-34 In stock	Pulley	£17.75 £14.79
184	HV596 56 40-05 Out of stock	Screw	£6.28 £5.23
187	HV817 58 05-20 Out of stock	Bolt	£4.30 £3.58
214	HV532 17 56-09 Out of stock	Lever	£37.66 £31.38
254	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
258	HV532 17 80-62 Out of stock	Clip	£0.85 £0.71
261	HV597 02 50-01 Out of stock	Pulley	£47.03 £39.19
263	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
265	HV532 18 20-13 Out of stock	Spacer	£15.71 £13.09
267	HV872 14 06-26 Out of stock	Bolt	£5.93 £4.94
