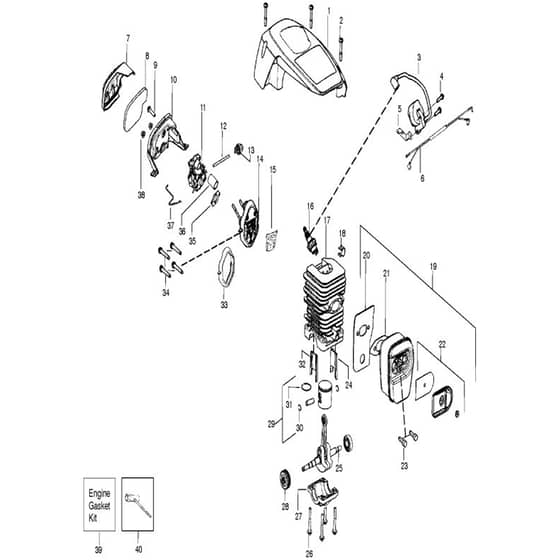

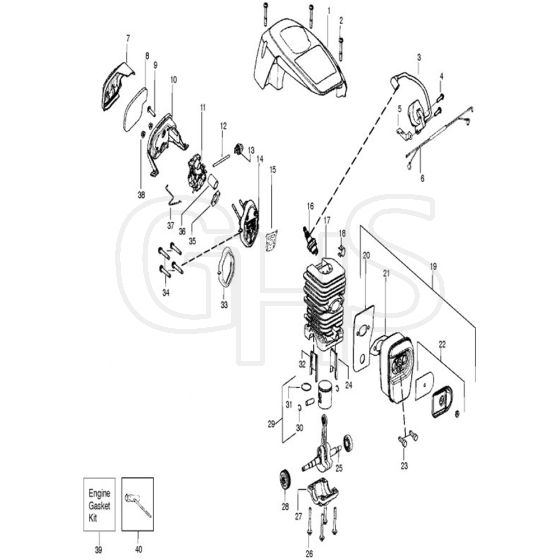

McCulloch MC 3516 - 2010-07_US - Engine Parts Diagram
McCulloch MC 3516 - 2010-07_US - Engine Parts Diagram

Description

McCulloch MC 3516 - 2010-07_US - Engine Parts Diagram

Ref. Img. Part No. Details
  2 Screw
Screw
HV530 01 61-53 Out of stock
Screw
£1.63 £1.36

  3 Ignition Module
Ignition Module
HV530 03 92-38 Out of stock
Ignition Module
£52.58 £43.82

  4 Screw
Screw
HV530 01 64-32 Out of stock
Screw
£1.63 £1.36

  5 Plate
Plate
HV530 04 74-42 Out of stock
Plate
£3.55 £2.96

  6 Assembly
Assembly
HV530 05 79-43 Out of stock
Assembly
£10.14 £8.45

  11 Carburettor Kit- (13)
Carburettor Kit- (13)
HV545 07 06-01 Out of stock
Carburettor Kit- (13)
£83.32 £69.43

  12 Hose Small
Hose Small
HV530 06 92-47 In stock
Hose Small
£6.84 £5.70

  13 Purge
Purge
HV530 04 77-21 Out of stock
Purge
£12.31 £10.26

  14 Kit (15+33+36)
Kit (15+33+36)
HV530 07 18-89 Out of stock
Kit (15+33+36)
£28.62 £23.85

  15 Kit
Kit
HV530 07 18-94 Out of stock
Kit
£19.36 £16.13

  16 Spark Plug Rcj-7Y
Spark Plug Rcj-7Y
9494 In stock
Spark Plug Rcj-7Y
£2.89 £2.41

  17 Kit (24+32)
Kit (24+32)
HV530 07 18-85 Out of stock
Kit (24+32)
£80.47 £67.06

  19 Kit Muffler Sas Non Cat (20+21+22+23)
Kit Muffler Sas Non Cat (20+21+22+23)
HV545 00 60-07 Out of stock
Kit Muffler Sas Non Cat (20+21+22+23)
£28.72 £23.93

  23 Bolt
Bolt
HV530 01 63-38 Out of stock
Bolt
£2.08 £1.73

  24 Insert Black
Insert Black
HV545 01 53-01 Out of stock
Insert Black
£4.18 £3.48

  25 Crankshaft Assy
Crankshaft Assy
HV545 11 29-01 Out of stock
Crankshaft Assy
£262.99 £219.16

  28 Bearing
Bearing
HV530 05 63-63 Out of stock
Bearing
£7.64 £6.37

  29 Piston Assy (30+31)
Piston Assy (30+31)
HV530 07 18-82 Out of stock
Piston Assy (30+31)
£38.72 £32.27

  30 Locking Ring
Locking Ring
HV530 01 56-97 Out of stock
Locking Ring
£0.54 £0.45

  31 Piston Ring
Piston Ring
HV545 16 04-01 Out of stock
Piston Ring
£5.90 £4.92

  32 Insert Gray
Insert Gray
HV545 01 54-01 Out of stock
Insert Gray
£4.20 £3.50

  34 Screw
Screw
HV530 01 64-26 Out of stock
Screw
£1.84 £1.53

  36 Tube
Tube
HV530 05 79-26 Out of stock
Tube
£7.02 £5.85

  38 Nut
Nut
HV530 01 61-01 Out of stock
Nut
£1.42 £1.18

  40 Wrench
Wrench
HV530 03 11-63 Out of stock
Wrench
£3.71 £3.09
