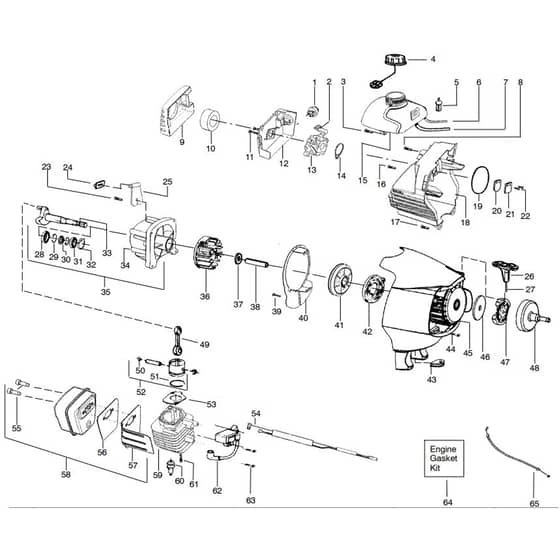

McCulloch MAC MT325 CLS GT - 2009-10 - Engine Parts Diagram

Description

McCulloch MAC MT325 CLS GT - 2009-10 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV530 04 77-21 Out of stock	Purge	£12.52 £10.43
2	HV530 07 17-17 Out of stock	Choke Control	£6.25 £5.21
3	HV530 01 58-43 Out of stock	Screw	£1.74 £1.45
4	HV578 93 16-05 Out of stock	Tank	£8.98 £7.48
5	HV530 09 56-46 In stock	Filter	£6.94 £5.78
6	HV530 06 92-47 In stock	Hose	£7.31 £6.09
7	HV530 06 92-16 Out of stock	Fuel Hose	£10.97 £9.14
9	HV545 00 05-01 Out of stock	Cover	£14.42 £12.02
10	HV545 08 23-01 Out of stock	Air Filter	£7.21 £6.01
11	HV530 01 58-49 Out of stock	Screw	£2.58 £2.15
13	HV545 00 60-17 Out of stock	Kit	£65.40 £54.50
14	HV545 03 01-02 Out of stock	Kit	£18.23 £15.19
15	HV545 07 53-05 Out of stock	Fuel Tank Assy	£63.80 £53.17
16	HV530 01 57-71 Out of stock	Screw	£2.35 £1.96
17	HV530 01 59-52 Out of stock	Screw	£1.67 £1.39
20	HV530 02 75-93 Out of stock	Reed	£1.61 £1.34
22	HV530 01 60-64 Out of stock	Screw	£1.15 £0.96
23	HV530 01 58-75 Out of stock	Screw	£1.43 £1.19
25	HV530 05 49-41 Out of stock	Ret.-Fuel Tank	£0.86 £0.72
27	HV545 05 04-09 Out of stock	Kit	£6.91 £5.76
28	HV545 08 16-01 Out of stock	Bearing	£18.50 £15.42
30	HV530 01 91-58 Out of stock	Sealing Ring	£4.88 £4.07
34	HV545 08 19-01 Out of stock	Crankcase Assy	£76.32 £63.60
37	HV530 01 64-63 Out of stock	Washer	£2.17 £1.81
39	HV530 01 57-75 Out of stock	Screw	£1.90 £1.58
40	HV545 11 52-01 Out of stock	Baffle Plate	£5.84 £4.87
41	HV545 05 04-08 Out of stock	Kit	£42.08 £35.07
42	HV545 00 80-14 Out of stock	Spring	£15.52 £12.93
44	HV530 01 63-86 Out of stock	Screw	£1.43 £1.19
45	HV530 05 52-48 Out of stock	Housing	£82.56 £68.80
46	HV530 09 41-89 Out of stock	Washer	£8.26 £6.88
47	HV530 05 51-22 Out of stock	Clutch Assy	£45.97 £38.31
48	HV530 15 02-47 Out of stock	Clutch Drum	£50.42 £42.02
49	HV530 01 09-60 Out of stock	Connecting Rod	£50.77 £42.31
50	HV530 01 51-62 Out of stock	Circlip	£1.98 £1.65
52	HV530 07 19-98 Out of stock	Kit	£61.68 £51.40
54	HV530 05 88-46 Out of stock	Assembly	£6.60 £5.50
55	HV530 01 63-87 Out of stock	Screw	£2.71 £2.26
57	HV545 03 32-01 Out of stock	Shield	£5.23 £4.36
59	HV530 01 25-86 Out of stock	Cylinder Machined 32cc	£70.08 £58.40
60	9411 In stock	Spark Plug	£3.36 £2.80
62	HV501 09 28-01 Out of stock	Ignition Coil	£49.81 £41.51
65	HV545 02 68-01 Out of stock	Assembly	£10.03 £8.36
