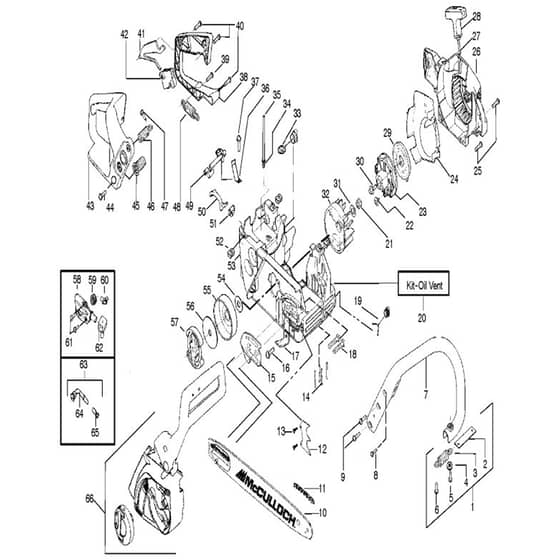

McCulloch MAC CAT 440 - 2008-05 - Chassis & Enclosures (2) Parts Diagram

Name: McCulloch MAC CAT 440 - 2008-05 - Chassis & Enclosures (2) Parts Diagram
SKU: mac_cat_440_2008_05_chassis_enclosures_2_-group
Price: 0.94 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MAC CAT 440 - 2008-05 - Chassis & Enclosures (2) Parts Diagram

Description

McCulloch MAC CAT 440 - 2008-05 - Chassis & Enclosures (2) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV545 00 60-36 Out of stock	Insulator	£23.64 £19.70
5	HV530 01 60-18 Out of stock	Screw	£2.40 £2.00
6	HV530 01 58-43 Out of stock	Screw	£1.63 £1.36
7	HV545 04 80-01 Out of stock	Front Handle	£77.95 £64.96
8	HV530 01 59-40 Out of stock	Screw	£1.84 £1.53
11	HV577 61 51-27 Out of stock	Saw Chain	£26.02 £21.68
12	HV530 01 43-81 Out of stock	Felling Dog	£10.76 £8.97
13	HV530 01 64-39 Out of stock	Screw	£1.39 £1.16
14	HV530 01 61-32 Out of stock	Bolt	£4.09 £3.41
15	HV530 03 82-38 Out of stock	Plate	£7.62 £6.35
16	HV530 01 58-14 Out of stock	Screw	£1.63 £1.36
17	HV530 02 98-50 Out of stock	Chain Catcher	£4.09 £3.41
18	HV530 01 61-33 Out of stock	Bolt	£4.70 £3.92
20	HV530 07 16-66 Out of stock	Valve	£15.17 £12.64
21	HV530 01 61-34 Out of stock	Nut	£2.02 £1.68
22	HV530 01 60-80 Out of stock	Screw	£1.19 £0.99
24	HV530 05 57-23 Out of stock	Partition	£4.98 £4.15
25	HV530 01 58-92 Out of stock	Screw	£1.39 £1.16
26	HV530 04 93-35 Out of stock	Starter Housing	£29.59 £24.66
27	HV530 06 92-32 Out of stock	Starter Rope	£4.20 £3.50
28	HV530 05 64-02 Out of stock	Handle	£4.76 £3.97
29	HV545 00 80-15 Out of stock	Spring	£13.10 £10.92
30	HV530 01 59-20 Out of stock	Screw	£1.84 £1.53
31	HV530 01 51-27 Out of stock	Washer	£2.36 £1.97
33	HV580 94 09-01 In stock	Tank	£9.05 £7.54
34	HV530 02 38-77 Out of stock	Nipple	£5.77 £4.81
35	HV530 06 92-16 Out of stock	Fuel Hose	£10.25 £8.54
36	HV530 01 61-49 Out of stock	Spring	£2.87 £2.39
37	HV530 01 57-75 Out of stock	Screw	£1.84 £1.53
38	HV530 04 75-81 Out of stock	Handle	£21.25 £17.71
39	HV530 01 58-86 Out of stock	Screw	£1.63 £1.36
40	HV530 01 59-06 Out of stock	Screw	£1.39 £1.16
42	HV530 03 60-97 Out of stock	Throttle Trigger	£6.64 £5.53
43	HV530 04 75-82 Out of stock	Handle	£23.62 £19.68
47	HV530 01 58-75 Out of stock	Screw	£1.39 £1.16
49	HV530 05 74-73 Out of stock	Lever	£8.23 £6.86
50	HV530 05 74-74 Out of stock	Lever	£3.76 £3.13
51	HV530 04 90-05 Out of stock	Guide	£3.31 £2.76
52	HV530 01 59-22 Out of stock	Nut	£1.42 £1.18
53	HV530 05 87-33 Out of stock	Kit	£143.53 £119.61
54	HV530 01 59-07 Out of stock	Washer	£2.36 £1.97
55	HV530 04 70-61 In stock	Clutch Drum Assy	£36.17 £30.14
56	HV530 01 56-11 Out of stock	Washer	£6.78 £5.65
57	HV599 58 86-01 Out of stock	Clutch	£51.79 £43.16
58	HV530 07 12-59 Out of stock	Oil Pump	£28.42 £23.68
59	HV530 03 78-20 Out of stock	Worm Gear	£6.43 £5.36
60	HV530 04 94-77 Out of stock	Elbow	£4.68 £3.90
61	HV530 01 60-64 Out of stock	Screw	£1.13 £0.94
62	HV530 01 92-06 Out of stock	Sealing	£6.22 £5.18
63	HV530 04 76-63 In stock	Hose	Was £10.97 £9.14 Special Price £8.86 £7.38
65	HV530 05 65-33 Out of stock	Screen	£7.14 £5.95
