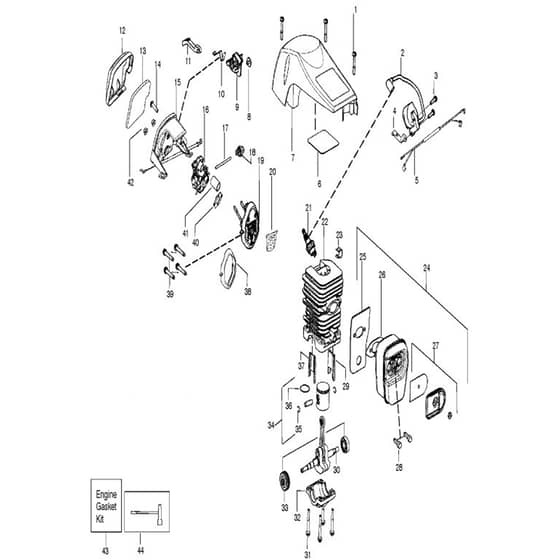

McCulloch MAC 7-38 - MAC 738 - 2011-03 - Engine Parts Diagram

Description

McCulloch MAC 7-38 - MAC 738 - 2011-03 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV545 07 06-01 Out of stock	Carburettor (18)	£83.32 £69.43
1	HV530 01 61-53 Out of stock	Screw	£1.63 £1.36
3	HV530 01 64-32 Out of stock	Screw	£1.63 £1.36
4	HV530 05 86-61 Out of stock	Plate	£2.44 £2.03
5	HV530 05 79-43 Out of stock	Assembly	£10.14 £8.45
7	HV530 05 78-72 Out of stock	Hub Cap (1+6)	£41.54 £34.62
8	HV530 01 60-80 Out of stock	Screw	£1.19 £0.99
9	HV530 05 78-91 Out of stock	Lever	£7.64 £6.37
10	HV530 05 79-08 Out of stock	Spring	£2.78 £2.32
11	HV530 05 93-99 Out of stock	Choke Control	£6.10 £5.08
12	HV530 05 90-01 In stock	Air Filter Cover	£7.86 £6.55
13	HV530 05 78-69 In stock	Air Filter	£6.76 £5.63
15	HV545 04 69-01 Out of stock	Filter Holder	£11.94 £9.95
17	HV530 06 92-47 In stock	Hose	£6.84 £5.70
18	HV530 04 77-21 Out of stock	Purge	£12.31 £10.26
19	HV530 07 18-89 Out of stock	Kit (20+38+41)	£28.62 £23.85
20	HV530 07 18-94 Out of stock	Kit	£19.36 £16.13
21	9494 In stock	Spark Plug Rcj-7Y	£2.89 £2.41
22	HV530 07 18-84 Out of stock	Kit Cylinder (29+37)	£69.76 £58.13
24	HV545 00 60-07 Out of stock	Muffler (25+26+27+28)	£28.72 £23.93
27	HV545 08 17-01 Out of stock	Spark Arrester	£6.84 £5.70
28	HV530 01 63-38 Out of stock	Bolt	£2.08 £1.73
29	HV545 01 53-01 Out of stock	Insert Left	£4.18 £3.48
33	HV530 05 63-63 Out of stock	Bearing	£7.64 £6.37
34	HV530 07 18-83 Out of stock	Kit Piston (35+36)	£58.40 £48.67
35	HV530 01 56-97 Out of stock	Locking Ring	£0.54 £0.45
36	HV545 16 04-01 Out of stock	Piston Ring	£5.90 £4.92
37	HV545 01 54-01 Out of stock	Insert Right	£4.20 £3.50
39	HV530 01 64-26 Out of stock	Screw	£1.84 £1.53
41	HV530 05 79-26 Out of stock	Tube	£7.02 £5.85
42	HV530 01 61-01 Out of stock	Nut	£1.42 £1.18
44	HV530 03 11-35 Out of stock	Wrench	£4.51 £3.76
