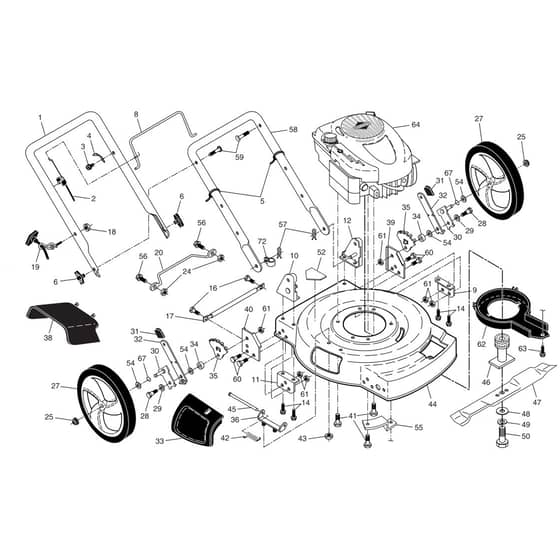

McCulloch M6556 SMD - 96121001002 - 2007-07 - Frame Parts Diagram

Name: McCulloch M6556 SMD - 96121001002 - 2007-07 - Frame Parts Diagram
SKU: m6556_smd_96121001002_2007_07_frame-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M6556 SMD - 96121001002 - 2007-07 - Frame Parts Diagram

Description

McCulloch M6556 SMD - 96121001002 - 2007-07 - Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 18 35-67 Out of stock	Cable	£23.84 £19.87
3	HV532 75 06-34 Out of stock	Screw	£1.19 £0.99
4	HV532 85 07-33 Out of stock	Plate	£4.96 £4.13
6	HV532 18 55-77 Out of stock	Knob	£6.07 £5.06
8	HV532 19 84-64 Out of stock	Control	£16.90 £14.08
18	HV532 05 06-75 Out of stock	Nut	£1.81 £1.51
19	HV532 19 47-88 Out of stock	Guide	£3.43 £2.86
20	HV532 15 41-47 Out of stock	Protector	£19.85 £16.54
24	HV532 06 91-80 Out of stock	Nut	£1.42 £1.18
25	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
27	HV532 43 31-21 Out of stock	Wheel	£27.23 £22.69
29	HV532 40 16-30 Out of stock	Washer	£2.69 £2.24
31	HV532 08 78-77 Out of stock	Knob	£4.06 £3.38
34	HV532 40 16-29 Out of stock	Spacer	£2.18 £1.82
43	HV586 66 89-01 Out of stock	Nut	£2.20 £1.83
46	HV532 42 11-76 Out of stock	Adapter	£30.88 £25.73
47	HV532 19 93-79 Out of stock	Blade	£29.04 £24.20
48	HV532 85 10-74 Out of stock	Washer	£4.06 £3.38
49	HV596 23 87-01 Out of stock	Washer	£2.46 £2.05
50	HV532 85 10-84 Out of stock	Screw	£6.26 £5.22
54	HV532 08 83-48 Out of stock	Washer	£1.93 £1.61
55	HV532 19 09-39 Out of stock	Bracket	£5.93 £4.94
57	HV532 05 17-93 Out of stock	Pin	£3.88 £3.23
59	HV532 19 15-74 Out of stock	Screw	£4.74 £3.95
60	HV874 78 06-12 Out of stock	Bolt	£5.18 £4.32
61	HV596 32 26-01 Out of stock	Locknut 3/8-16 Rl508A/B	£3.14 £2.62
62	HV585 47 26-01 Out of stock	Sheild	£32.12 £26.77
63	HV532 19 23-25 Out of stock	Screw	£1.84 £1.53
67	HV532 19 74-80 Out of stock	O-Ring	£3.06 £2.55
72	HV532 19 79-91 Out of stock	Clip	£0.60 £0.50
