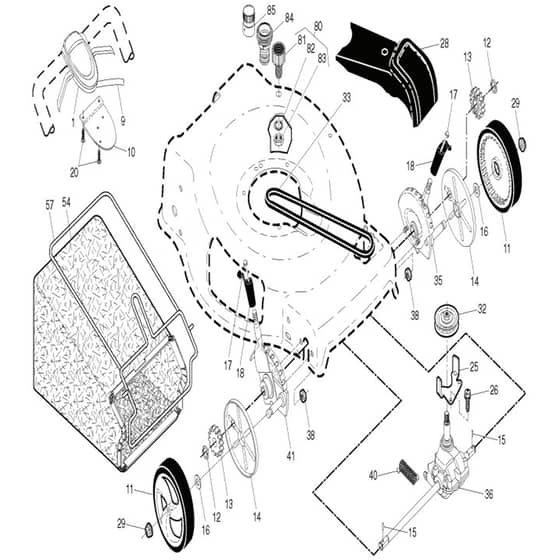

McCulloch M56-875 DWA - 96141022503 - 2010-12 - Drive Parts Diagram

Name: McCulloch M56-875 DWA - 96141022503 - 2010-12 - Drive Parts Diagram
SKU: m56_875_dwa_96141022503_2010_12_drive-group
Price: 0.49 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M56-875 DWA - 96141022503 - 2010-12 - Drive Parts Diagram

Description

McCulloch M56-875 DWA - 96141022503 - 2010-12 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
9	HV532 43 16-49 Out of stock	Cable	£45.60 £38.00
10	HV532 43 27-90 Out of stock	Bracket	£8.63 £7.19
11	HV583 71 94-01 Out of stock	Wheel	£21.06 £17.55
12	HV812 00 00-58 Out of stock	E-Clip	£0.59 £0.49
13	HV532 40 38-49 Out of stock	Pinion	£8.06 £6.72
14	HV581 84 04-01 Out of stock	Dust Cover	£7.97 £6.64
15	HV532 40 48-45 Out of stock	Pawl Drive	£5.21 £4.34
16	HV532 06 77-25 Out of stock	Washer	£7.20 £6.00
17	HV583 34 30-01 Out of stock	Nut	£1.25 £1.04
20	HV532 18 16-98 Out of stock	Screw	£1.39 £1.16
25	HV532 43 17-11 Out of stock	Bracket	£8.17 £6.81
26	HV532 16 34-09 Out of stock	Screw	£1.10 £0.92
29	HV532 40 91-48 Out of stock	Nut	£2.81 £2.34
32	HV532 44 32-62 Out of stock	Pulley	£15.50 £12.92
33	HV532 19 68-53 Out of stock	V-Belt	£19.74 £16.45
35	HV583 46 58-01 Out of stock	Adjuster	£37.93 £31.61
36	HV589 60 06-01 Out of stock	Gearbox Assy	£95.40 £79.50
38	HV532 19 17-30 Out of stock	Nut	£1.81 £1.51
40	HV532 40 65-58 Out of stock	Spring	£2.96 £2.47
54	HV532 43 15-55 Out of stock	Grassbag	£52.12 £43.43
57	HV585 05 47-02 In stock	Grassbag	£14.42 £12.02
80	HV532 42 11-14 Out of stock	Water Connector	£19.91 £16.59
