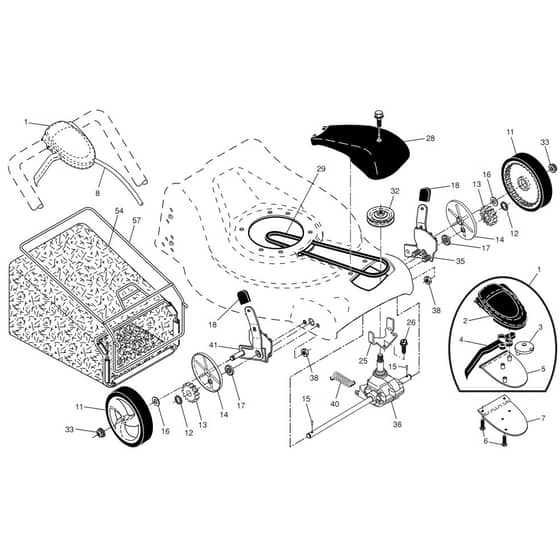

McCulloch M53-875 DWA - 96141022900 - 2010-04 - Drive Parts Diagram

Name: McCulloch M53-875 DWA - 96141022900 - 2010-04 - Drive Parts Diagram
SKU: m53_875_dwa_96141022900_2010_04_drive-group
Price: 0.49 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M53-875 DWA - 96141022900 - 2010-04 - Drive Parts Diagram

Description

McCulloch M53-875 DWA - 96141022900 - 2010-04 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV583 41 59-01 Out of stock	Drive Control	£103.24 £86.03
2	HV532 41 35-42 Out of stock	Cover	£18.79 £15.66
3	HV532 40 62-62 Out of stock	Pulley	£10.43 £8.69
4	HV532 42 56-62 Out of stock	Lever	£22.46 £18.72
5	HV532 41 35-41 Out of stock	Cover	£15.85 £13.21
6	HV532 18 16-98 Out of stock	Screw	£1.39 £1.16
7	HV532 40 07-23 Out of stock	Bracket	£14.81 £12.34
8	HV532 40 62-59 In stock	Cable Assy	£46.69 £38.91
11	HV583 71 94-01 Out of stock	Wheel	£21.06 £17.55
12	HV812 00 00-58 Out of stock	E-Clip	£0.59 £0.49
13	HV532 40 38-49 Out of stock	Pinion	£8.06 £6.72
14	HV581 84 04-01 Out of stock	Dust Cover	£7.97 £6.64
15	HV532 40 48-45 Out of stock	Pawl Drive	£5.21 £4.34
16	HV532 06 77-25 Out of stock	Washer	£7.20 £6.00
17	HV587 07 02-02 Out of stock	Bearing	£19.55 £16.29
18	HV532 08 78-77 Out of stock	Knob	£4.06 £3.38
25	HV532 43 17-11 Out of stock	Guide Courroie	£8.17 £6.81
26	HV532 16 34-09 Out of stock	Screw	£1.10 £0.92
29	HV532 19 41-49 In stock	Belt	£19.87 £16.56
32	HV532 44 32-62 Out of stock	Pulley	£15.50 £12.92
33	HV532 40 91-48 Out of stock	Nut	£2.81 £2.34
35	HV532 43 84-85 Out of stock	Adjuster	£27.02 £22.52
36	HV532 40 48-33 Out of stock	Gearcase Assembly Complete	£108.60 £90.50
38	HV586 66 89-01 Out of stock	Nut	£2.20 £1.83
40	HV532 40 65-58 Out of stock	Spring	£2.96 £2.47
41	HV532 43 84-86 Out of stock	Adjuster	£27.06 £22.55
54	HV532 41 06-67 Out of stock	Grassbag	£59.46 £49.55
57	HV532 41 19-50 Out of stock	Frame	£65.48 £54.57
