McCulloch M53-675DWA - 96141017303 - 2010-02 - Frame Parts Diagram

Description

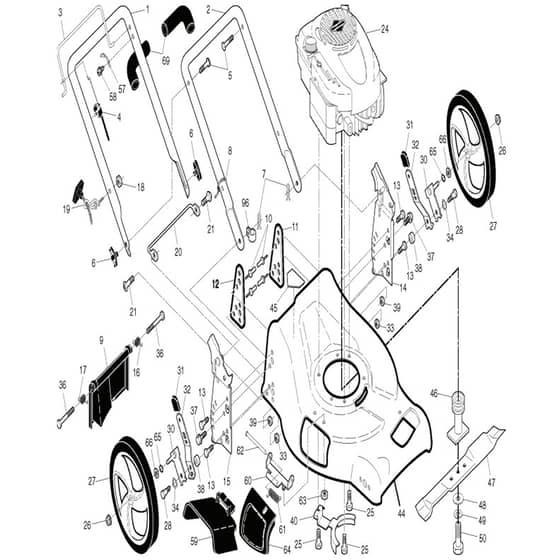

McCulloch M53-675DWA - 96141017303 - 2010-02 - Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV583 13 45-01 Out of stock	Handle Half	£47.59 £39.66
2	HV532 43 45-14 Out of stock	Handle	£49.12 £40.93
4	HV532 41 53-50 In stock	Control Cable	£19.20 £16.00
5	HV532 19 15-74 Out of stock	Screw	£5.60 £4.67
6	HV532 18 55-77 Out of stock	Knob	£7.46 £6.22
7	HV532 05 17-93 Out of stock	Pin	£4.60 £3.83
10	HV532 12 84-15 Out of stock	Rivet	£2.68 £2.23
13	HV817 06 04-10 Out of stock	Screw	£2.23 £1.86
14	HV532 43 45-13 Out of stock	Bracket	£54.08 £45.07
16	HV532 40 54-17 Out of stock	Spring	£6.01 £5.01
17	HV532 40 54-18 Out of stock	Spring	£6.01 £5.01
18	HV532 05 06-75 Out of stock	Nut	£2.23 £1.86
19	HV532 19 47-88 Out of stock	Guide	£3.52 £2.93
21	HV583 60 83-01 Out of stock	Screw	£1.74 £1.45
26	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
27	HV532 43 27-49 Out of stock	Wheel Assy	£32.24 £26.87
28	HV532 40 16-38 Out of stock	Bolt	£7.46 £6.22
30	HV532 41 31-41 Out of stock	Arm	£16.80 £14.00
31	HV532 08 78-77 Out of stock	Knob	£4.86 £4.05
32	HV532 40 16-26 Out of stock	Selector Spring	£9.34 £7.78
33	HV596 04 05-01 Out of stock	Lock Nut	£2.06 £1.72
34	HV532 40 16-30 Out of stock	Washer	£2.76 £2.30
36	HV532 18 41-93 Out of stock	Bolt	£7.46 £6.22
37	HV874 78 05-12 Out of stock	Screw	£3.04 £2.53
38	HV532 40 16-29 Out of stock	Spacer	£2.60 £2.17
39	HV532 15 53-77 Out of stock	Nut	£2.36 £1.97
40	HV532 42 57-11 Out of stock	Belt Guard	£8.20 £6.83
46	HV583 47 80-01 Out of stock	Adapter	£45.23 £37.69
47	HV532 19 93-77 In stock	Mower Blade	£33.91 £28.26
48	HV532 85 10-74 Out of stock	Washer	£4.99 £4.16
49	HV596 23 87-01 Out of stock	Washer	£2.52 £2.10
50	HV532 85 10-84 Out of stock	Screw	£6.26 £5.22
57	HV532 43 00-34 Out of stock	Bracket	£6.13 £5.11
58	HV532 75 06-34 Out of stock	Screw	£1.51 £1.26
59	HV532 17 50-71 Out of stock	Clipping Deflector	£37.92 £31.60
60	HV532 17 57-35 Out of stock	Hinge	£8.09 £6.74
61	HV532 19 30-00 Out of stock	Hinge	£6.00 £5.00
62	HV532 17 56-50 Out of stock	Rod	£5.29 £4.41
63	HV586 66 89-01 Out of stock	Nut	£2.87 £2.39
64	HV532 17 50-66 Out of stock	Plug	£11.32 £9.43
65	HV532 19 74-80 Out of stock	O-Ring	£3.71 £3.09
66	HV532 08 83-48 Out of stock	Washer	£2.23 £1.86
96	HV532 19 79-91 Out of stock	Clip	£0.74 £0.62
