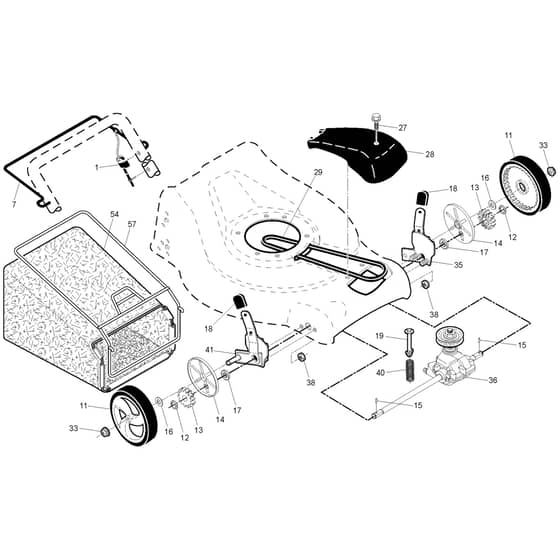

McCulloch M53-625 CMDW - 96141015705 - 2010-04 - Drive Parts Diagram

Name: McCulloch M53-625 CMDW - 96141015705 - 2010-04 - Drive Parts Diagram
SKU: m53_625_cmdw_96141015705_2010_04_drive-group
Price: 0.49 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M53-625 CMDW - 96141015705 - 2010-04 - Drive Parts Diagram

Description

McCulloch M53-625 CMDW - 96141015705 - 2010-04 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 19 46-53 Out of stock	Control	£23.68 £19.73
7	HV532 19 84-53 Out of stock	Bar	£19.62 £16.35
11	HV583 71 94-01 Out of stock	Wheel	£21.06 £17.55
12	HV812 00 00-58 Out of stock	E-Clip	£0.59 £0.49
13	HV532 40 38-49 Out of stock	Pinion	£8.06 £6.72
14	HV581 84 04-01 Out of stock	Dust Cover	£7.97 £6.64
15	HV532 40 48-45 Out of stock	Pawl Drive	£5.21 £4.34
16	HV532 06 77-25 Out of stock	Washer	£7.20 £6.00
17	HV587 07 02-02 Out of stock	Bearing	£19.55 £16.29
18	HV532 08 78-77 Out of stock	Knob	£4.06 £3.38
19	HV532 15 04-95 Out of stock	Pin Retaining Screw	£3.76 £3.13
27	HV532 17 52-62 Out of stock	Screw	£1.84 £1.53
29	HV532 17 54-36 Out of stock	V-Belt	£21.08 £17.57
33	HV532 40 91-48 Out of stock	Nut	£2.81 £2.34
35	HV532 43 84-85 Out of stock	Adjuster	£27.02 £22.52
36	HV532 41 52-25 Out of stock	Gearbox	£145.61 £121.34
38	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
40	HV532 13 70-90 Out of stock	Spring	£3.31 £2.76
41	HV532 43 84-86 Out of stock	Adjuster	£27.06 £22.55
54	HV532 41 06-67 Out of stock	Bag	£59.46 £49.55
57	HV532 41 19-50 Out of stock	Frame	£65.48 £54.57
