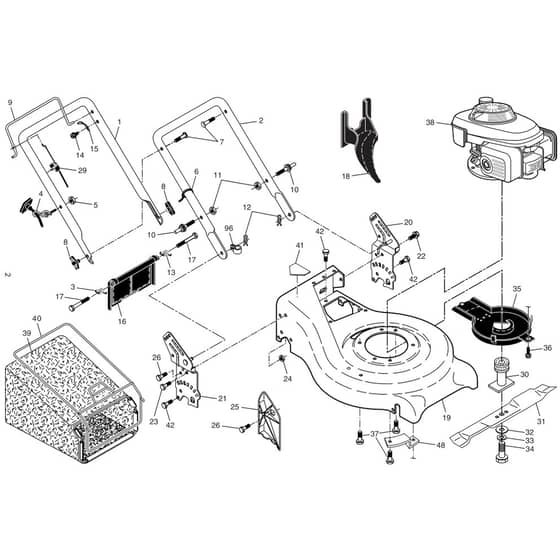

McCulloch M53-160 CMD - 96141010703 - 2008-09 - Frame Parts Diagram

Name: McCulloch M53-160 CMD - 96141010703 - 2008-09 - Frame Parts Diagram
SKU: m53_160_cmd_96141010703_2008_09_frame-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M53-160 CMD - 96141010703 - 2008-09 - Frame Parts Diagram

Description

McCulloch M53-160 CMD - 96141010703 - 2008-09 - Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 19 60-05 Out of stock	Handle	£32.30 £26.92
3	HV532 40 54-16 Out of stock	Spring	£5.18 £4.32
4	HV532 19 47-88 Out of stock	Guide	£3.43 £2.86
5	HV532 05 06-75 Out of stock	Nut	£1.81 £1.51
7	HV532 19 15-74 Out of stock	Screw	£4.74 £3.95
8	HV532 08 76-92 Out of stock	Knob	£8.12 £6.77
9	HV532 19 84-64 Out of stock	Control	£16.90 £14.08
10	HV532 18 88-21 Out of stock	Bolt	£4.30 £3.58
11	HV532 75 11-53 Out of stock	Nut	£2.20 £1.83
12	HV532 05 17-93 Out of stock	Pin	£3.88 £3.23
13	HV532 40 54-15 Out of stock	Spring	£5.18 £4.32
14	HV532 75 06-34 Out of stock	Screw	£1.19 £0.99
15	HV532 85 07-33 Out of stock	Plate	£4.96 £4.13
16	HV532 40 18-15 Out of stock	Deflector	£18.70 £15.58
17	HV532 18 41-93 Out of stock	Bolt	£6.04 £5.03
18	HV532 19 81-70 Out of stock	Plug	£38.10 £31.75
22	HV532 42 88-67 Out of stock	Screw	£3.20 £2.67
23	HV532 16 31-83 Out of stock	Bolt	£2.96 £2.47
24	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
25	HV532 16 13-33 Out of stock	Plate	£8.23 £6.86
26	HV532 16 34-09 Out of stock	Screw	£1.10 £0.92
29	HV532 19 12-21 Out of stock	Cable	£24.12 £20.10
30	HV532 42 11-76 Out of stock	Adapter	£30.88 £25.73
31	HV532 19 93-77 In stock	Mower Blade	£27.04 £22.53
32	HV532 85 10-74 Out of stock	Washer	£4.06 £3.38
33	HV596 23 87-01 Out of stock	Washer	£2.46 £2.05
34	HV532 85 10-84 Out of stock	Screw	£6.26 £5.22
35	HV585 47 26-01 Out of stock	Sheild	£32.12 £26.77
36	HV532 19 23-25 Out of stock	Screw	£1.84 £1.53
39	HV532 41 06-68 Out of stock	Gbag.93231916S.Blk.MccSubs/2	£70.87 £59.06
40	HV532 41 19-51 Out of stock	Frame	£38.38 £31.98
48	HV532 19 09-39 Out of stock	Bracket	£5.93 £4.94
96	HV532 19 79-91 Out of stock	Clip	£0.60 £0.50
