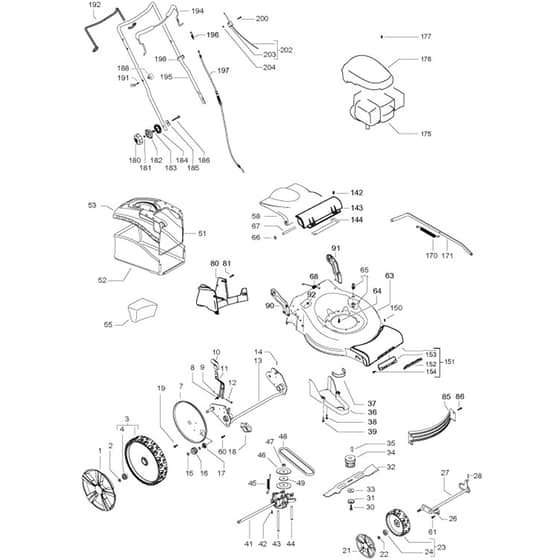

McCulloch M53-150WRP - 96708770100 - 2017-02 - Product Complete Parts Diagram

Ref. Img. Part No. Details
  1 Hub Cap D.280 HV574 39 66-01
Hub Cap D.280
Out of stock
£16.38 £13.65

  2 Nut M8+ Self Locking+ Flanged HV504 85 78-01
Nut M8+ Self Locking+ Flanged
Out of stock
£3.52 £2.93

  3 Wheel Assy D.280 HV574 45 12-02
Wheel Assy D.280
Out of stock
£30.78 £25.65

  7 Hub Cap D.280 HV504 53 99-01
Hub Cap D.280
Out of stock
£13.06 £10.88

  8 Spring HV583 95 13-02
Spring
Out of stock
£4.28 £3.57

  9 Pin Retaining Screw HV531 20 74-08
Pin Retaining Screw
Out of stock
£3.35 £2.79

  10 Knob HV580 46 24-01
Knob
Out of stock
£5.70 £4.75

  11 Lever Assy HV582 75 93-01
Lever Assy
Out of stock
£12.55 £10.46

  12 Pin HV587 19 82-01
Pin
Out of stock
£5.46 £4.55

  13 Rear Axle HV581 73 35-01
Rear Axle
Out of stock
£100.80 £84.00

  14 Pin HV531 20 66-53
Pin
Out of stock
£3.72 £3.10

  16 Pinion HV544 34 23-01
Pinion
Out of stock
£10.37 £8.64

  17 Bearing HV531 20 87-78
Bearing
Out of stock
£5.52 £4.60

  18 Support HV531 20 59-44
Support
Out of stock
£8.09 £6.74

  19 Screw 5x10 HV531 20 78-56
Screw 5x10
Out of stock
£1.51 £1.26

  21 Hub Cap D.190 HV574 39 64-01
Hub Cap D.190
Out of stock
£10.03 £8.36

  23 Wheel Assy D.190 HV574 45 09-02
Wheel Assy D.190
Out of stock
£24.20 £20.17

  26 Support HV577 38 42-01
Support
Out of stock
£7.64 £6.37

  27 Front Axle HV573 97 60-01
Front Axle
Out of stock
£71.88 £59.90

  30 Screw 3/8 HV531 20 80-08
Screw 3/8"
Out of stock
£6.85 £5.71

  31 Washer HV525 46 32-02
Washer
Out of stock
£2.71 £2.26

  32 Mower Blade HV581 18 86-10
Mower Blade
Out of stock
£33.72 £28.10

  33 Washer HV525 42 31-01
Washer
Out of stock
£2.47 £2.06

  34 Blade Support HV581 84 30-01
Blade Support
In stock
£19.80 £16.50

  35 Key HV505 29 09-01
Key
Out of stock
£2.33 £1.94

  37 Belt Guide HV501 18 90-02
Belt Guide
Out of stock
£22.39 £18.66

  38 Screw HV817 41 13-12
Screw
Out of stock
£5.84 £4.87

  41 Gearbox HV577 11 74-01
Gearbox
Out of stock
£114.84 £95.70

  42 Screw 4x16+ Self Threading HV510 03 75-01
Screw 4x16+ Self Threading
Out of stock
£1.51 £1.26

  43 Belt Guide HV577 92 85-01
Belt Guide
Out of stock
£6.28 £5.23

  44 Belt Guide HV544 93 43-01
Belt Guide
Out of stock
£8.09 £6.74

  45 Spring HV544 93 47-01
Spring
Out of stock
£4.37 £3.64

  46 Pulley HV544 44 44-01
Pulley
Out of stock
£19.37 £16.14

  48 Belt Z31 10x775 HV531 21 31-31
Belt Z31 10x775
Out of stock
£23.38 £19.48

  49 Washer HV538 23 52-87
Washer
Out of stock
£3.00 £2.50

  51 Bag HV531 21 35-88
Bag
Out of stock
£30.11 £25.09

  52 Grassbag HV577 58 66-06
Grassbag
Out of stock
£62.88 £52.40

  53 Bag HV577 87 67-99
Bag
Out of stock
£29.14 £24.28

  55 Plug HV579 67 94-01
Plug
Out of stock
£40.78 £33.98

  60 Screw 4.8x19+ Self Threading HV531 20 66-77
Screw 4.8x19+ Self Threading
Out of stock
£1.74 £1.45

  61 Screw 4x16+ Self Threading HV525 43 31-01
Screw 4x16+ Self Threading
Out of stock
£1.12 £0.93

  63 Chassis HV589 46 22-02
Chassis
Out of stock
£185.16 £154.30

  65 Connector 1/2 HV531 20 58-48
Connector 1/2"
Out of stock
£9.34 £7.78

  66 Lockwasher HV584 81 69-03
Lockwasher
Out of stock
£0.74 £0.62

  68 Spring HV531 21 18-40
Spring
Out of stock
£4.15 £3.46

  80 Insert HV502 09 42-01
Insert
Out of stock
£21.44 £17.87

  81 Screw HV532 19 41-89
Screw
Out of stock
£1.74 £1.45

  85 Baffle HV502 09 33-01
Baffle
Out of stock
£36.08 £30.07

  86 Bolt HV817 00 05-10
Bolt
Out of stock
£3.48 £2.90

  90 Handle Bracket Right HV582 75 14-02
Handle Bracket Right
Out of stock
£27.61 £23.01

  91 Handle Bracket Left HV582 75 12-02
Handle Bracket Left
Out of stock
£27.61 £23.01

  92 Hexagon Nut Flange M8 HV582 75 89-01
Hexagon Nut Flange M8
Out of stock
£2.60 £2.17

  143 Seal HV579 30 09-01
Seal
Out of stock
£20.33 £16.94

  152 Cover (151) HV574 37 52-01
Cover (151)
Out of stock
£6.17 £5.14

  153 Attachment Plate (151) HV574 72 17-01
Attachment Plate (151)
Out of stock
£2.87 £2.39

  154 Screw Itxpant (151) HV575 95 57-01
Screw Itxpant (151)
Out of stock
£1.42 £1.18

  170 Spring HV583 96 87-01
Spring
Out of stock
£4.39 £3.66

  171 Rod HV581 59 07-01
Rod
Out of stock
£16.32 £13.60

  176 Shroud HV580 44 56-01
Shroud
Out of stock
£26.22 £21.85

  177 Screw HV532 18 16-98
Screw
Out of stock
£1.74 £1.45

  180 Knob HV580 42 43-01
Knob
Out of stock
£10.82 £9.02

  181 Washer HV531 20 49-22
Washer
Out of stock
£2.48 £2.07

  183 Spring HV531 21 14-76
Spring
Out of stock
£3.52 £2.93

  184 Segment Inner HV531 21 14-73
Segment Inner
Out of stock
£15.18 £12.65

  185 Plate HV531 21 15-81
Plate
Out of stock
£4.72 £3.93

  186 Screw Rsqm M8x55 HV581 25 95-01
Screw Rsqm M8x55
Out of stock
£1.39 £1.16

  188 Knob HV581 91 26-01
Knob
Out of stock
£5.23 £4.36

  191 Guide HV581 90 21-01
Guide
Out of stock
£4.40 £3.67

  192 Bail HV580 65 43-01
Bail
Out of stock
£23.20 £19.33

  194 Bail Arm Assy HV587 68 93-03
Bail Arm Assy
Out of stock
£13.16 £10.97

  196 Spring HV580 76 19-01
Spring
Out of stock
£6.91 £5.76

  198 Clip HV531 20 55-81
Clip
Out of stock
£0.66 £0.55

  202 Cable Assy HV582 19 21-01
Cable Assy
Out of stock
£29.09 £24.24

  203 Bracket (202) HV531 20 80-43
Bracket (202)
In stock
£1.31 £1.09
