McCulloch M53-150WR Classic - 96708760102 - 2019-03 - Product Complete Parts Diagram

McCulloch M53-150WR Classic - 96708760102 - 2019-03 - Product Complete Parts Diagram
McCulloch M53-150WR Classic - 96708760102 - 2019-03 - Product Complete Parts Diagram

Description

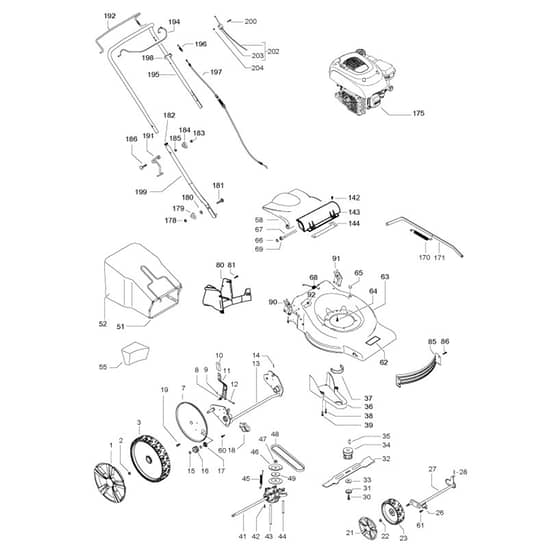

McCulloch M53-150WR Classic - 96708760102 - 2019-03 - Product Complete Parts Diagram

Ref. Img. Part No. Details
  1 Hub Cap D.280
Hub Cap D.280
HV574 39 66-01 Out of stock
Hub Cap D.280
£15.97 £13.31

  2 Nut M8+ Self Locking+ Flanged
Nut M8+ Self Locking+ Flanged
HV504 85 78-01 Out of stock
Nut M8+ Self Locking+ Flanged
£3.43 £2.86

  3 Wheel D.280
Wheel D.280
HV574 41 53-04 Out of stock
Wheel D.280
£36.00 £30.00

  7 Hub Cap D.280
Hub Cap D.280
HV504 53 99-01 Out of stock
Hub Cap D.280
£12.73 £10.61

  8 Spring
Spring
HV583 95 13-02 Out of stock
Spring
£4.18 £3.48

  9 Pin Retaining Screw
Pin Retaining Screw
HV531 20 74-08 Out of stock
Pin Retaining Screw
£3.08 £2.57

  10 Knob
Knob
HV574 61 05-01 Out of stock
Knob
£6.66 £5.55

  11 Lever Assy
Lever Assy
HV582 75 93-01 Out of stock
Lever Assy
£12.24 £10.20

  12 Pin
Pin
HV587 19 82-01 Out of stock
Pin
£4.66 £3.88

  13 Rear Axle
Rear Axle
HV581 73 35-01 Out of stock
Rear Axle
£106.28 £88.57

  14 Pin
Pin
HV531 20 66-53 Out of stock
Pin
£3.11 £2.59

  16 Pinion
Pinion
HV582 70 17-01 Out of stock
Pinion
£22.58 £18.82

  17 Bearing
Bearing
HV531 20 87-78 Out of stock
Bearing
£5.21 £4.34

  18 Support
Support
HV531 20 59-44 Out of stock
Support
£6.70 £5.58

  19 Screw 5x10
Screw 5x10
HV531 20 78-56 Out of stock
Screw 5x10
£1.19 £0.99

  21 Hub Cap D.190
Hub Cap D.190
HV574 39 64-01 Out of stock
Hub Cap D.190
£9.78 £8.15

  23 Wheel D.190
Wheel D.190
HV574 41 50-04 Out of stock
Wheel D.190
£21.16 £17.63

  26 Support
Support
HV577 38 42-01 Out of stock
Support
£7.46 £6.22

  27 Front Axle
Front Axle
HV573 97 60-01 Out of stock
Front Axle
£75.53 £62.94

  30 Screw 3/8
Screw 3/8
HV531 20 80-08 Out of stock
Screw 3/8"
£5.65 £4.71

  31 Washer
Washer
HV525 46 32-02 Out of stock
Washer
£2.62 £2.18

  32 Mower Blade
Mower Blade
HV581 18 86-10 Out of stock
Mower Blade
£32.87 £27.39

  33 Washer
Washer
HV525 42 31-01 Out of stock
Washer
£2.94 £2.45

  34 Blade Support
Blade Support
HV581 84 30-01 In stock
Blade Support
£18.92 £15.77

  35 Key
Key
HV505 29 09-01 Out of stock
Key
£2.33 £1.94

  37 Belt Guide
Belt Guide
HV501 18 90-02 Out of stock
Belt Guide
£18.66 £15.55

  38 Screw
Screw
HV817 41 13-12 Out of stock
Screw
£5.38 £4.48

  41 Gearbox
Gearbox
HV577 11 74-01 Out of stock
Gearbox
£121.19 £100.99

  42 Screw 4x16+ Self Threading
Screw 4x16+ Self Threading
HV510 03 75-01 Out of stock
Screw 4x16+ Self Threading
£1.19 £0.99

  43 Belt Guide
Belt Guide
HV577 92 85-01 Out of stock
Belt Guide
£6.11 £5.09

  44 Belt Guide
Belt Guide
HV544 93 43-01 Out of stock
Belt Guide
£6.43 £5.36

  45 Spring
Spring
HV544 93 47-01 Out of stock
Spring
£3.71 £3.09

  46 Pulley
Pulley
HV544 44 44-01 Out of stock
Pulley
£15.97 £13.31

  48 Belt Z31 10x775
Belt Z31 10x775
HV531 21 31-31 Out of stock
Belt Z31 10x775
£22.60 £18.83

  49 Washer
Washer
HV538 23 52-87 Out of stock
Washer
£2.93 £2.44

  51 Bag Frame
Bag Frame
HV531 21 32-62 Out of stock
Bag Frame
£55.49 £46.24

  52 Grassbag
Grassbag
HV589 46 26-01 Out of stock
Grassbag
£67.32 £56.10

  55 Plug
Plug
HV579 67 94-01 Out of stock
Plug
£39.76 £33.13

  60 Screw 4.8x19+ Self Threading
Screw 4.8x19+ Self Threading
HV531 20 66-77 Out of stock
Screw 4.8x19+ Self Threading
£1.39 £1.16

  61 Screw 4x16+ Self Threading
Screw 4x16+ Self Threading
HV525 43 31-01 Out of stock
Screw 4x16+ Self Threading
£1.01 £0.84

  62 Decal Mcculloch
Decal Mcculloch
HV581 02 17-01 Out of stock
Decal Mcculloch
£3.55 £2.96

  63 Chassis
Chassis
HV589 46 23-02 Out of stock
Chassis
£194.48 £162.07

  66 Lockwasher
Lockwasher
HV584 81 69-03 Out of stock
Lockwasher
£0.66 £0.55

  67 Tie Rod
Tie Rod
HV531 21 14-41 Out of stock
Tie Rod
£7.93 £6.61

  68 Spring
Spring
HV531 20 59-99 Out of stock
Spring
£3.49 £2.91

  80 Insert
Insert
HV502 09 42-01 Out of stock
Insert
£20.89 £17.41

  81 Screw
Screw
HV532 19 41-89 Out of stock
Screw
£1.39 £1.16

  85 Baffle
Baffle
HV502 09 33-01 Out of stock
Baffle
£35.17 £29.31

  86 Bolt
Bolt
HV817 00 05-10 Out of stock
Bolt
£2.96 £2.47

  90 Handle Bracket Right
Handle Bracket Right
HV582 75 11-02 Out of stock
Handle Bracket Right
£26.93 £22.44

  91 Handle Bracket Left
Handle Bracket Left
HV582 75 10-02 Out of stock
Handle Bracket Left
£26.93 £22.44

  143 Seal
Seal
HV579 30 09-01 Out of stock
Seal
£18.72 £15.60

  170 Spring
Spring
HV583 96 87-01 Out of stock
Spring
£4.27 £3.56

  171 Rod
Rod
HV581 59 07-01 Out of stock
Rod
£15.91 £13.26

  175 Engine Assy
Engine Assy
HV579 82 90-01 Out of stock
Engine Assy
£460.21 £383.51

  178 Nut M8
Nut M8
HV531 20 79-82 Out of stock
Nut M8
£2.26 £1.88

  179 Wing Nut
Wing Nut
HV531 20 49-23 Out of stock
Wing Nut
£3.38 £2.82

  180 Washer
Washer
HV531 20 49-22 Out of stock
Washer
£2.11 £1.76

  181 Screw M8x25
Screw M8x25
HV531 20 49-21 In stock
Screw M8x25
£4.09 £3.41

  182 Plug
Plug
HV531 20 89-50 Out of stock
Plug
£0.85 £0.71

  186 Screw M8x50
Screw M8x50
HV531 20 70-89 Out of stock
Screw M8x50
£5.36 £4.47

  191 Hook
Hook
HV504 70 86-01 Out of stock
Hook
£13.66 £11.38

  192 Handle
Handle
HV504 70 84-01 Out of stock
Handle
£28.80 £24.00

  194 Handle
Handle
HV504 70 83-04 Out of stock
Handle
£28.80 £24.00

  195 Handle Upper Half
Handle Upper Half
HV504 70 80-01 Out of stock
Handle Upper Half
£41.89 £34.91

  196 Spring
Spring
HV580 76 19-01 Out of stock
Spring
£6.73 £5.61

  197 Cable
Cable
HV544 90 80-02 Out of stock
Cable
£27.35 £22.79

  198 Clip
Clip
HV531 20 55-81 Out of stock
Clip
£0.66 £0.55

  199 Handle Lower Half
Handle Lower Half
HV531 20 60-71 Out of stock
Handle Lower Half
£28.74 £23.95

  202 Cable Assy
Cable Assy
HV582 19 21-02 Out of stock
Cable Assy
£26.60 £22.17

  203 Bracket (202)
Bracket (202)
HV531 20 80-43 In stock
Bracket (202)
£1.01 £0.84
