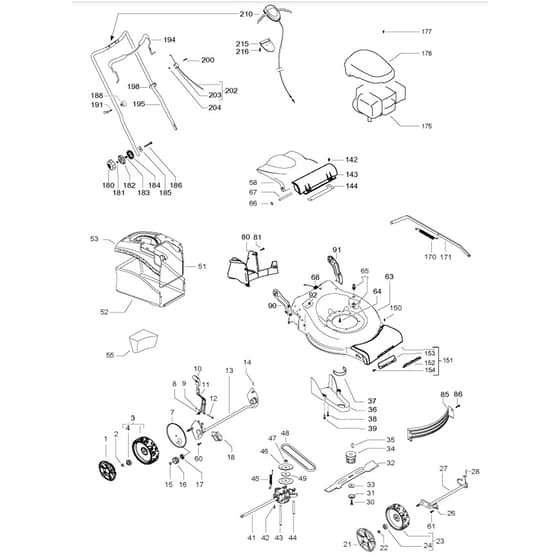

McCulloch M53-150 ARPX - 96708780100 - 2017-03 - Product Complete Parts Diagram

Name: McCulloch M53-150 ARPX - 96708780100 - 2017-03 - Product Complete Parts Diagram
SKU: m53_150_arpx_96708780100_2017_03_product_complete-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M53-150 ARPX - 96708780100 - 2017-03 - Product Complete Parts Diagram

Description

McCulloch M53-150 ARPX - 96708780100 - 2017-03 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV574 39 65-01 Out of stock	Hub Cap D.210	£11.05 £9.21
2	HV504 85 78-01 Out of stock	Nut M8+ Self Locking+ Flanged	£3.43 £2.86
7	HV504 82 73-01 Out of stock	Dust Cover	£7.88 £6.57
8	HV583 95 13-02 Out of stock	Spring	£4.18 £3.48
9	HV531 20 74-08 Out of stock	Pin Retaining Screw	£3.08 £2.57
10	HV580 46 24-01 Out of stock	Knob	£5.70 £4.75
11	HV582 75 93-01 Out of stock	Lever Assy	£12.24 £10.20
12	HV587 19 82-01 Out of stock	Pin	£4.66 £3.88
14	HV531 20 66-53 Out of stock	Pin	£3.11 £2.59
16	HV544 34 23-01 Out of stock	Pinion	£10.22 £8.52
17	HV531 20 87-78 Out of stock	Bearing	£5.21 £4.34
18	HV531 20 59-44 Out of stock	Support	£6.70 £5.58
21	HV574 39 64-01 Out of stock	Hub Cap D.190	£9.78 £8.15
23	HV574 45 09-02 Out of stock	Wheel Assy D.190	£23.59 £19.66
26	HV577 38 42-01 Out of stock	Support	£7.46 £6.22
27	HV573 97 60-01 Out of stock	Front Axle	£75.53 £62.94
30	HV531 20 80-08 Out of stock	Screw 3/8"	£5.65 £4.71
31	HV525 46 32-02 Out of stock	Washer	£2.62 £2.18
32	HV580 25 84-02 Out of stock	Mower Blade	£32.87 £27.39
33	HV525 42 31-01 Out of stock	Washer	£2.94 £2.45
34	HV581 84 30-01 In stock	Blade Support	£18.92 £15.77
35	HV505 29 09-01 Out of stock	Key	£2.33 £1.94
37	HV501 18 90-02 Out of stock	Belt Guide	£18.66 £15.55
38	HV817 41 13-12 Out of stock	Screw	£5.38 £4.48
39	HV531 20 78-56 Out of stock	Screw 5x10	£1.19 £0.99
41	HV544 34 32-03 Out of stock	Gearbox	£93.12 £77.60
42	HV510 03 75-01 Out of stock	Screw 4x16+ Self Threading	£1.19 £0.99
43	HV577 92 85-01 Out of stock	Belt Guide	£6.11 £5.09
44	HV544 93 43-01 Out of stock	Belt Guide	£6.43 £5.36
45	HV544 93 47-01 Out of stock	Spring	£3.71 £3.09
46	HV544 44 44-01 Out of stock	Pulley	£15.97 £13.31
48	HV531 21 31-31 Out of stock	Belt Z31 10x775	£22.60 £18.83
49	HV538 23 52-87 Out of stock	Washer	£2.93 £2.44
51	HV531 21 35-88 Out of stock	Bag	£29.34 £24.45
52	HV577 58 66-06 Out of stock	Grassbag	£66.23 £55.19
53	HV577 87 67-99 Out of stock	Bag	£28.39 £23.66
55	HV579 67 94-01 Out of stock	Plug	£39.76 £33.13
60	HV531 20 66-77 Out of stock	Screw 4.8x19+ Self Threading	£1.39 £1.16
61	HV525 43 31-01 Out of stock	Screw 4x16+ Self Threading	£1.01 £0.84
63	HV589 46 22-02 Out of stock	Chassis	£194.48 £162.07
65	HV531 20 58-48 Out of stock	Connector 1/2"	£7.94 £6.62
66	HV584 81 69-03 Out of stock	Lockwasher	£0.66 £0.55
68	HV531 21 18-40 Out of stock	Spring	£4.06 £3.38
80	HV502 09 42-01 Out of stock	Insert	£20.89 £17.41
81	HV532 19 41-89 Out of stock	Screw	£1.39 £1.16
85	HV502 09 33-01 Out of stock	Baffle	£35.17 £29.31
86	HV817 00 05-10 Out of stock	Bolt	£2.96 £2.47
90	HV582 75 14-02 Out of stock	Handle Bracket Right	£26.93 £22.44
91	HV582 75 12-02 Out of stock	Handle Bracket Left	£26.93 £22.44
92	HV582 75 89-01 Out of stock	Hexagon Nut Flange M8	£1.24 £1.03
143	HV579 30 09-01 Out of stock	Seal	£18.72 £15.60
152	HV574 37 52-01 Out of stock	Cover (151)	£6.01 £5.01
153	HV574 72 17-01 Out of stock	Attachment Plate (151)	£2.81 £2.34
154	HV575 95 57-01 Out of stock	Screw Itxpant (151)	£1.37 £1.14
170	HV583 96 87-01 Out of stock	Spring	£4.27 £3.56
171	HV581 59 07-01 Out of stock	Rod	£15.91 £13.26
176	HV580 44 56-01 Out of stock	Shroud	£25.55 £21.29
177	HV532 18 16-98 Out of stock	Screw	£1.39 £1.16
180	HV580 42 43-01 Out of stock	Knob	£10.55 £8.79
181	HV531 20 49-22 Out of stock	Washer	£2.11 £1.76
183	HV531 21 14-76 Out of stock	Spring	£3.43 £2.86
184	HV531 21 14-73 Out of stock	Segment Inner	£14.36 £11.97
185	HV531 21 15-81 Out of stock	Plate	£4.60 £3.83
186	HV581 25 95-01 Out of stock	Screw Rsqm M8x55	£1.36 £1.13
188	HV581 91 26-01 Out of stock	Knob	£4.38 £3.65
191	HV581 90 21-01 Out of stock	Guide	£3.44 £2.87
194	HV587 68 93-03 Out of stock	Bail Arm Assy	£12.83 £10.69
195	HV580 33 36-02 Out of stock	Handle	£65.46 £54.55
198	HV531 20 55-81 Out of stock	Clip	£0.66 £0.55
202	HV582 19 21-01 Out of stock	Cable Assy	£27.53 £22.94
203	HV531 20 80-43 In stock	Bracket (202)	£1.01 £0.84
215	HV587 24 93-02 Out of stock	Backplate	£10.01 £8.34
