McCulloch M51-675 CMD alu - 2008-03 - Product Complete Parts Diagram

Description

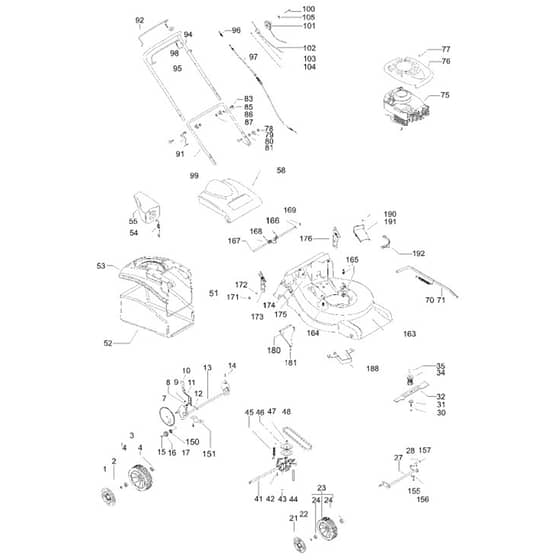

McCulloch M51-675 CMD alu - 2008-03 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV544 44 62-04 Out of stock	Hub Cap	£8.33 £6.94
2	HV504 85 78-01 Out of stock	Nut	£3.43 £2.86
3	HV544 91 69-01 Out of stock	Wheel Assy	£19.44 £16.20
4	HV538 00 53-62 Out of stock	Ball Bearing	£6.01 £5.01
7	HV504 82 73-01 Out of stock	Dust Cover	£7.88 £6.57
8	HV583 95 13-02 Out of stock	Spring	£4.18 £3.48
9	HV531 20 84-92 Out of stock	Nut	£1.25 £1.04
10	HV574 61 05-01 Out of stock	Knob	£6.66 £5.55
11	HV581 17 86-01 Out of stock	Lifting Lever Assy	£11.54 £9.62
12	HV538 23 58-07 Out of stock	Screw	£2.64 £2.20
13	HV504 80 01-01 Out of stock	Rear Axle	£98.16 £81.80
14	HV531 20 66-53 Out of stock	Pin	£3.11 £2.59
16	HV544 34 23-01 Out of stock	Pinion	£10.22 £8.52
17	HV531 20 87-78 Out of stock	Bearing	£5.21 £4.34
23	HV544 91 73-02 Out of stock	Wheel Assy	£23.59 £19.66
27	HV504 85 65-01 Out of stock	Front Axle Assy	£61.31 £51.09
30	HV531 20 66-49 Out of stock	Screw	£6.70 £5.58
31	HV525 46 32-02 Out of stock	Washer	£2.62 £2.18
32	HV504 11 33-10 In stock	Blade	£26.54 £22.12
34	HV581 84 31-01 Out of stock	Support	£21.25 £17.71
35	HV531 20 49-07 In stock	Key	£2.30 £1.92
42	HV538 24 08-62 Out of stock	Screw	£1.36 £1.13
44	HV544 93 43-01 Out of stock	Belt Guide	£6.43 £5.36
45	HV544 93 47-01 Out of stock	Spring	£3.71 £3.09
46	HV544 44 44-01 Out of stock	Pulley	£15.97 £13.31
48	HV504 03 51-01 Out of stock	Belt	£20.23 £16.86
51	HV501 32 24-01 Out of stock	Frame	£25.90 £21.58
52	HV531 21 32-11 Out of stock	Bag	£44.94 £37.45
53	HV577 87 67-03 Out of stock	Cover	£56.45 £47.04
54	HV531 20 58-31 Out of stock	Mulch Plug	£5.02 £4.18
55	HV531 21 32-26 Out of stock	Plug	£23.71 £19.76
70	HV531 20 57-15 Out of stock	Spring	£8.89 £7.41
79	HV531 20 49-23 Out of stock	Wing Nut	£3.38 £2.82
80	HV531 20 49-22 Out of stock	Washer	£2.11 £1.76
83	HV531 20 70-89 Out of stock	Screw	£5.36 £4.47
91	HV504 70 86-01 Out of stock	Hook	£13.66 £11.38
92	HV504 70 84-01 Out of stock	Handle	£28.80 £24.00
94	HV504 70 83-04 Out of stock	Handle	£28.80 £24.00
95	HV504 70 80-01 Out of stock	Handle	£41.89 £34.91
97	HV544 90 80-02 Out of stock	Cable	£27.35 £22.79
98	HV531 20 55-81 Out of stock	Clip	£0.66 £0.55
101	HV531 20 62-10 Out of stock	Throttle Lever	£23.11 £19.26
102	HV582 19 21-02 Out of stock	Brake Wire	£26.60 £22.17
103	HV531 20 80-43 In stock	Bracket	£1.01 £0.84
104	HV531 20 84-91 Out of stock	Nut	£1.63 £1.36
105	HV531 20 66-66 Out of stock	Washer	£1.90 £1.58
150	HV531 20 73-85 Out of stock	Screw	£1.63 £1.36
155	HV531 20 78-56 Out of stock	Screw	£1.19 £0.99
156	HV531 20 55-36 Out of stock	Support	£0.88 £0.73
165	HV531 20 58-48 Out of stock	Connector	£7.94 £6.62
167	HV531 21 33-44 Out of stock	Shaft	£5.12 £4.27
168	HV501 32 25-01 Out of stock	Spring	£4.48 £3.73
169	HV584 81 69-03 Out of stock	Retainer Ring	£0.66 £0.55
171	HV531 20 79-82 Out of stock	Nut	£2.26 £1.88
172	HV531 20 79-81 Out of stock	Washer	£1.93 £1.61
175	HV531 20 49-21 In stock	Screw	£4.09 £3.41
180	HV501 96 60-01 Out of stock	Deflector	£30.61 £25.51
188	HV544 46 86-01 Out of stock	Belt Guide	£11.80 £9.83
191	HV531 21 32-25 Out of stock	Cover	£5.51 £4.59
192	HV531 20 63-08 Out of stock	Pawl	£11.47 £9.56
