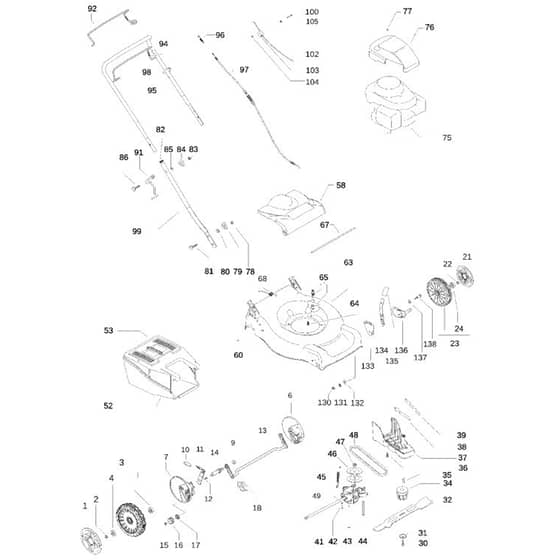

McCulloch M46-500 CD - 96690620101 - 2009-05 - Product Complete Parts Diagram

Name: McCulloch M46-500 CD - 96690620101 - 2009-05 - Product Complete Parts Diagram
SKU: m46_500_cd_96690620101_2009_05_product_complete-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M46-500 CD - 96690620101 - 2009-05 - Product Complete Parts Diagram

Description

McCulloch M46-500 CD - 96690620101 - 2009-05 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV504 85 78-01 Out of stock	Nut	£3.43 £2.86
3	HV516 02 65-05 Out of stock	Wheel Assy	£23.59 £19.66
6	HV531 20 51-95 Out of stock	Cover	£14.46 £12.05
7	HV531 20 51-94 Out of stock	Cover	£15.00 £12.50
9	HV510 07 13-01 Out of stock	Nut Locking	£3.43 £2.86
10	HV574 61 05-01 Out of stock	Knob	£6.66 £5.55
12	HV531 20 82-16 Out of stock	Screw	£1.19 £0.99
13	HV540 06 86-01 Out of stock	Rear Axle Assy	£55.14 £45.95
14	HV510 07 12-01 Out of stock	Bolt	£8.18 £6.82
16	HV544 34 23-01 Out of stock	Pinion	£10.22 £8.52
17	HV531 20 87-78 Out of stock	Bearing	£5.21 £4.34
18	HV531 20 59-44 Out of stock	Support	£6.70 £5.58
23	HV505 43 57-01 Out of stock	Wheel Assy	£22.14 £18.45
24	HV538 00 53-62 Out of stock	Ball Bearing	£6.01 £5.01
30	HV531 20 80-08 Out of stock	Screw	£5.65 £4.71
31	HV525 46 32-02 Out of stock	Washer	£2.62 £2.18
32	HV581 18 89-10 In stock	Mower Blade	£30.46 £25.38
34	HV581 84 30-01 In stock	Adapter	£18.92 £15.77
35	HV505 29 09-01 Out of stock	Key	£2.33 £1.94
36	HV531 20 78-56 Out of stock	Screw	£1.19 £0.99
37	HV544 46 22-02 In stock	Belt Guard	£24.48 £20.40
38	HV504 04 61-01 Out of stock	Wear Protection	£5.09 £4.24
39	HV544 46 25-01 Out of stock	Wear Protection	£4.56 £3.80
41	HV544 34 32-03 Out of stock	Gearbox	£93.12 £77.60
42	HV538 24 08-62 Out of stock	Screw	£1.36 £1.13
43	HV544 93 44-01 Out of stock	Belt Guide	£7.70 £6.42
44	HV544 93 43-01 Out of stock	Belt Guide	£6.43 £5.36
45	HV544 93 47-01 Out of stock	Spring	£3.71 £3.09
46	HV544 44 44-01 Out of stock	Pulley	£15.97 £13.31
48	HV504 03 48-01 Out of stock	Belt	£18.25 £15.21
52	HV531 20 83-13 In stock	Bag	£33.94 £28.28
53	HV531 20 82-96 In stock	Cover	Was £50.26 £41.88 Special Price £35.45 £29.54
58	HV531 21 26-46 Out of stock	Paratoia Mp400/Mp546 Flymo 04	£45.74 £38.12
60	HV531 20 66-77 Out of stock	Screw	£1.39 £1.16
64	HV532 15 04-06 Out of stock	Screw	£4.66 £3.88
65	HV531 20 58-48 Out of stock	Connector	£7.94 £6.62
67	HV531 20 50-60 Out of stock	Shaft	£15.82 £13.18
68	HV531 20 59-99 Out of stock	Spring	£3.49 £2.91
77	HV531 21 27-10 Out of stock	Screw	£2.40 £2.00
78	HV531 20 79-82 Out of stock	Nut	£2.26 £1.88
79	HV531 20 49-23 Out of stock	Wing Nut	£3.38 £2.82
80	HV531 20 49-22 Out of stock	Washer	£2.11 £1.76
81	HV531 20 49-21 In stock	Screw	£4.09 £3.41
82	HV531 20 89-50 Out of stock	Plug	£0.85 £0.71
86	HV531 20 70-89 Out of stock	Screw	£5.36 £4.47
91	HV504 70 86-01 Out of stock	Hook	£13.66 £11.38
92	HV504 70 84-01 Out of stock	Handle	£28.80 £24.00
94	HV504 70 83-04 Out of stock	Handle	£28.80 £24.00
95	HV504 70 80-01 Out of stock	Handle	£41.89 £34.91
98	HV531 20 55-81 Out of stock	Clip	£0.66 £0.55
99	HV531 20 60-71 Out of stock	Handle	£28.74 £23.95
100	HV531 20 63-46 Out of stock	Screw	£2.40 £2.00
102	HV582 19 21-02 Out of stock	Brake Wire	£26.60 £22.17
103	HV531 20 80-43 In stock	Bracket	£1.01 £0.84
104	HV531 20 52-13 Out of stock	Nut	£1.66 £1.38
105	HV531 20 66-66 Out of stock	Washer	£1.90 £1.58
130	HV531 20 79-78 Out of stock	Nut	£2.96 £2.47
131	HV531 20 89-74 Out of stock	Washer	£1.93 £1.61
132	HV531 20 79-89 Out of stock	Washer	£4.24 £3.53
133	HV574 41 32-09 Out of stock	Bracket	£4.09 £3.41
134	HV544 45 25-01 Out of stock	Lever	£8.11 £6.76
137	HV531 20 60-20 Out of stock	Washer	£2.10 £1.75
138	HV531 20 49-12 Out of stock	Screw	£5.46 £4.55
