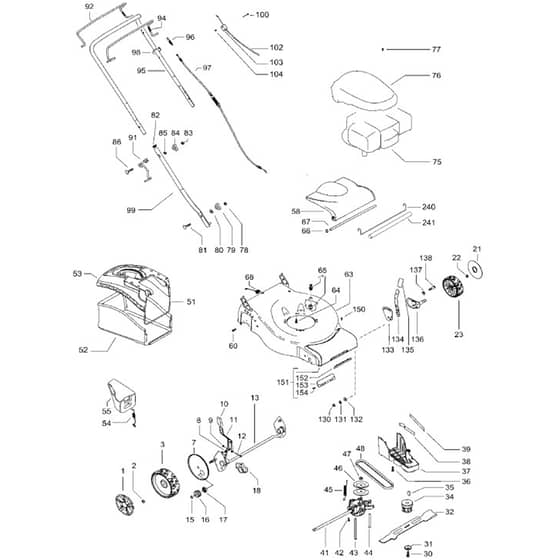

McCulloch M46-450 CMD - 96671170100 - 96671170101 - 96671170102 - 2010-09 - Product Complete Parts Diagram

Ref. Img. Part No. Details
  1 Hub Cap
Hub Cap
HV574 39 65-01 Out of stock
Hub Cap
£11.05 £9.21

  2 Nut
Nut
HV504 85 78-01 Out of stock
Nut
£3.43 £2.86

  3 Wheel
Wheel
HV574 41 52-04 Out of stock
Wheel
£25.01 £20.84

  7 Dust Cover
Dust Cover
HV504 82 73-01 Out of stock
Dust Cover
£7.88 £6.57

  8 Spring
Spring
HV583 95 13-02 Out of stock
Spring
£4.18 £3.48

  9 Nut
Nut
HV531 20 84-92 Out of stock
Nut
£1.25 £1.04

  10 Knob
Knob
HV574 61 05-01 Out of stock
Knob
£6.66 £5.55

  11 Lifting Lever Assy
Lifting Lever Assy
HV581 17 86-01 Out of stock
Lifting Lever Assy
£11.54 £9.62

  12 Screw
Screw
HV538 23 58-07 Out of stock
Screw
£2.64 £2.20

  13 Rear Axle
Rear Axle
HV504 80 01-01 Out of stock
Rear Axle
£98.16 £81.80

  16 Pinion
Pinion
HV544 34 23-01 Out of stock
Pinion
£10.22 £8.52

  17 Bearing
Bearing
HV531 20 87-78 Out of stock
Bearing
£5.21 £4.34

  18 Support
Support
HV531 20 59-44 Out of stock
Support
£6.70 £5.58

  21 Hub Cap
Hub Cap
HV574 39 64-01 Out of stock
Hub Cap
£9.78 £8.15

  23 Wheel
Wheel
HV574 41 50-04 Out of stock
Wheel
£21.16 £17.63

  30 Screw
Screw
HV531 20 80-08 Out of stock
Screw
£5.65 £4.71

  31 Washer
Washer
HV525 46 32-02 Out of stock
Washer
£2.62 £2.18

  32 Mower Blade
Mower Blade
HV581 18 89-10 In stock
Mower Blade
£30.46 £25.38

  34 Adapter
Adapter
HV581 84 30-01 In stock
Adapter
£18.92 £15.77

  35 Key
Key
HV505 29 09-01 Out of stock
Key
£2.33 £1.94

  36 Screw
Screw
HV531 20 78-56 Out of stock
Screw
£1.19 £0.99

  37 Belt Guard
Belt Guard
HV544 46 22-02 In stock
Belt Guard
£24.48 £20.40

  38 Wear Protection
Wear Protection
HV504 04 61-01 Out of stock
Wear Protection
£5.09 £4.24

  39 Wear Protection
Wear Protection
HV544 46 25-01 Out of stock
Wear Protection
£4.56 £3.80

  41 Gearbox
Gearbox
HV544 34 32-03 Out of stock
Gearbox
£93.12 £77.60

  42 Screw
Screw
HV510 03 75-01 Out of stock
Screw
£1.19 £0.99

  43 Belt Guide
Belt Guide
HV544 93 44-01 Out of stock
Belt Guide
£7.70 £6.42

  44 Belt Guide
Belt Guide
HV544 93 43-01 Out of stock
Belt Guide
£6.43 £5.36

  45 Spring
Spring
HV544 93 47-01 Out of stock
Spring
£3.71 £3.09

  46 Pulley
Pulley
HV544 44 44-01 Out of stock
Pulley
£15.97 £13.31

  48 Belt
Belt
HV504 03 48-01 Out of stock
Belt
£18.25 £15.21

  51 Frame
Frame
HV574 86 94-01 Out of stock
Frame
£15.56 £12.97

  52 Grassbag
Grassbag
HV574 86 96-01 Out of stock
Grassbag
£43.68 £36.40

  53 Grassbag
Grassbag
HV574 61 03-01 Out of stock
Grassbag
£38.60 £32.17

  54 Spring
Spring
HV522 85 77-01 Out of stock
Spring
£5.02 £4.18

  55 Mulch Plug
Mulch Plug
HV531 21 06-17 Out of stock
Mulch Plug
£48.35 £40.29

  58 Hatch
Hatch
HV574 61 02-01 Out of stock
Hatch
£35.26 £29.38

  64 Screw
Screw
HV532 15 04-06 Out of stock
Screw
£4.66 £3.88

  65 Connector
Connector
HV531 20 58-48 Out of stock
Connector
£7.94 £6.62

  66 Retainer Ring
Retainer Ring
HV584 81 69-03 Out of stock
Retainer Ring
£0.66 £0.55

  67 Shaft
Shaft
HV531 20 50-60 Out of stock
Shaft
£15.82 £13.18

  68 Spring
Spring
HV531 20 59-99 Out of stock
Spring
£3.49 £2.91

  77 Screw
Screw
HV531 21 27-10 Out of stock
Screw
£2.40 £2.00

  78 Nut
Nut
HV531 20 79-82 Out of stock
Nut
£2.26 £1.88

  79 Wing Nut
Wing Nut
HV531 20 49-23 Out of stock
Wing Nut
£3.38 £2.82

  80 Washer
Washer
HV531 20 49-22 Out of stock
Washer
£2.11 £1.76

  81 Screw
Screw
HV531 20 49-21 In stock
Screw
£4.09 £3.41

  82 Plug
Plug
HV531 20 89-50 Out of stock
Plug
£0.85 £0.71

  86 Screw
Screw
HV531 20 70-89 Out of stock
Screw
£5.36 £4.47

  91 Hook
Hook
HV504 70 86-01 Out of stock
Hook
£13.66 £11.38

  92 Handle
Handle
HV504 70 84-01 Out of stock
Handle
£28.80 £24.00

  94 Handle
Handle
HV504 70 83-04 Out of stock
Handle
£28.80 £24.00

  95 Handle
Handle
HV504 70 80-01 Out of stock
Handle
£41.89 £34.91

  98 Clip
Clip
HV531 20 55-81 Out of stock
Clip
£0.66 £0.55

  99 Handle
Handle
HV531 20 60-71 Out of stock
Handle
£28.74 £23.95

  100 Screw
Screw
HV531 20 63-46 Out of stock
Screw
£2.40 £2.00

  102 Brake Wire
Brake Wire
HV582 19 21-02 Out of stock
Brake Wire
£26.60 £22.17

  103 Casing
Casing
HV531 21 26-89 Out of stock
Casing
£1.15 £0.96

  104 Nut
Nut
HV531 20 52-13 Out of stock
Nut
£1.66 £1.38

  130 Nut
Nut
HV531 20 79-78 Out of stock
Nut
£2.96 £2.47

  131 Washer
Washer
HV531 20 89-74 Out of stock
Washer
£1.93 £1.61

  132 Washer
Washer
HV531 20 79-89 Out of stock
Washer
£4.24 £3.53

  133 Kit
Kit
HV574 41 32-09 Out of stock
Kit
£4.09 £3.41

  134 Lever
Lever
HV544 45 25-01 Out of stock
Lever
£8.11 £6.76

  137 Washer
Washer
HV531 20 60-20 Out of stock
Washer
£2.10 £1.75

  138 Screw
Screw
HV531 20 49-12 Out of stock
Screw
£5.46 £4.55

  151 Front Cover Assy
Front Cover Assy
HV575 56 21-02 Out of stock
Front Cover Assy
£18.22 £15.18

  152 Cover
Cover
HV574 37 52-01 Out of stock
Cover
£6.01 £5.01

  153 Attachment Plate
Attachment Plate
HV574 72 17-01 Out of stock
Attachment Plate
£2.81 £2.34

  154 Screw Itxpant
Screw Itxpant
HV575 95 57-01 Out of stock
Screw Itxpant
£1.37 £1.14

  240 Wire
Wire
HV578 32 30-01 Out of stock
Wire
£5.09 £4.24

  241 Tube
Tube
HV578 32 18-01 Out of stock
Tube
£11.09 £9.24
