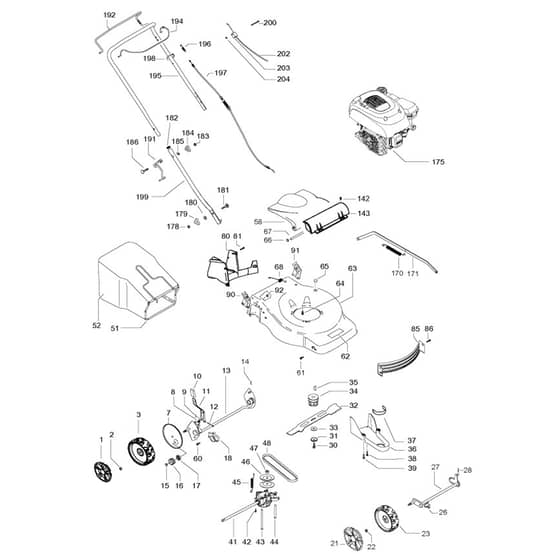

McCulloch M46-125 R CLASSIC+ - 96768370100 - 2018-01 - Product Complete Parts Diagram

Ref. Img. Part No. Details
  1 Hub Cap D.210
Hub Cap D.210
HV574 39 65-01 Out of stock
Hub Cap D.210
£11.05 £9.21

  2 Nut M8+ Self Locking+ Flanged
Nut M8+ Self Locking+ Flanged
HV504 85 78-01 Out of stock
Nut M8+ Self Locking+ Flanged
£3.43 £2.86

  3 Wheel D.210
Wheel D.210
HV574 41 52-04 Out of stock
Wheel D.210
£25.01 £20.84

  7 Dust Cover
Dust Cover
HV504 82 73-01 Out of stock
Dust Cover
£7.88 £6.57

  8 Spring
Spring
HV583 95 13-02 Out of stock
Spring
£4.18 £3.48

  9 Pin Retaining Screw
Pin Retaining Screw
HV531 20 74-08 Out of stock
Pin Retaining Screw
£3.08 £2.57

  10 Knob
Knob
HV574 61 05-01 Out of stock
Knob
£6.66 £5.55

  11 Lever Assy
Lever Assy
HV582 75 93-01 Out of stock
Lever Assy
£12.24 £10.20

  12 Pin
Pin
HV587 19 82-01 Out of stock
Pin
£4.66 £3.88

  13 Rear Axle
Rear Axle
HV504 80 01-01 Out of stock
Rear Axle
£98.16 £81.80

  14 Pin
Pin
HV531 20 66-53 Out of stock
Pin
£3.11 £2.59

  16 Pinion
Pinion
HV582 70 17-01 Out of stock
Pinion
£22.58 £18.82

  17 Bearing
Bearing
HV531 20 87-78 Out of stock
Bearing
£5.21 £4.34

  18 Support
Support
HV531 20 59-44 Out of stock
Support
£6.70 £5.58

  21 Hub Cap D.190
Hub Cap D.190
HV574 39 64-01 Out of stock
Hub Cap D.190
£9.78 £8.15

  23 Wheel D.190
Wheel D.190
HV574 41 50-04 Out of stock
Wheel D.190
£21.16 £17.63

  26 Support
Support
HV577 38 42-01 Out of stock
Support
£7.46 £6.22

  27 Front Axle Assy
Front Axle Assy
HV504 85 65-01 Out of stock
Front Axle Assy
£61.31 £51.09

  30 Screw 3/8
Screw 3/8
HV531 20 80-08 Out of stock
Screw 3/8"
£5.65 £4.71

  31 Washer
Washer
HV525 46 32-02 Out of stock
Washer
£2.62 £2.18

  32 Mower Blade
Mower Blade
HV581 18 89-10 In stock
Mower Blade
£30.46 £25.38

  33 Washer
Washer
HV525 42 31-01 Out of stock
Washer
£2.94 £2.45

  34 Blade Support
Blade Support
HV581 84 30-01 In stock
Blade Support
£18.92 £15.77

  35 Key
Key
HV505 29 09-01 Out of stock
Key
£2.33 £1.94

  36 Guard
Guard
HV589 02 31-01 Out of stock
Guard
£23.26 £19.38

  37 Belt Guide
Belt Guide
HV501 18 90-02 Out of stock
Belt Guide
£18.66 £15.55

  38 Screw
Screw
HV817 41 13-12 Out of stock
Screw
£5.38 £4.48

  39 Screw 5x10
Screw 5x10
HV531 20 78-56 Out of stock
Screw 5x10
£1.19 £0.99

  41 Gearbox
Gearbox
HV544 34 32-03 Out of stock
Gearbox
£93.12 £77.60

  42 Screw 4x16+ Self Threading
Screw 4x16+ Self Threading
HV510 03 75-01 Out of stock
Screw 4x16+ Self Threading
£1.19 £0.99

  43 Belt Guide
Belt Guide
HV544 93 44-01 Out of stock
Belt Guide
£7.70 £6.42

  44 Belt Guide
Belt Guide
HV544 93 43-01 Out of stock
Belt Guide
£6.43 £5.36

  45 Spring
Spring
HV544 93 47-01 Out of stock
Spring
£3.71 £3.09

  46 Pulley
Pulley
HV544 44 44-01 Out of stock
Pulley
£15.97 £13.31

  48 Belt Z28 10x710
Belt Z28 10x710
HV504 03 48-01 Out of stock
Belt Z28 10x710
£18.25 £15.21

  51 Frame
Frame
HV531 21 34-67 Out of stock
Frame
£43.93 £36.61

  52 Collector
Collector
HV579 81 63-01 Out of stock
Collector
£64.01 £53.34

  58 Hatch
Hatch
HV574 61 02-01 Out of stock
Hatch
£35.26 £29.38

  60 Screw
Screw
HV531 20 66-77 Out of stock
Screw
£1.39 £1.16

  61 Screw 4x16+ Self Threading
Screw 4x16+ Self Threading
HV525 43 31-01 Out of stock
Screw 4x16+ Self Threading
£1.01 £0.84

  62 Decal Mcculloch
Decal Mcculloch
HV581 02 17-01 Out of stock
Decal Mcculloch
£3.55 £2.96

  63 Chassis
Chassis
HV582 89 04-02 Out of stock
Chassis
£168.83 £140.69

  66 Lockwasher
Lockwasher
HV584 81 69-03 Out of stock
Lockwasher
£0.66 £0.55

  67 Shaft
Shaft
HV531 20 50-60 Out of stock
Shaft
£15.82 £13.18

  68 Spring
Spring
HV531 20 59-99 Out of stock
Spring
£3.49 £2.91

  80 Baffle
Baffle
HV597 00 09-01 Out of stock
Baffle
£23.46 £19.55

  85 Baffle
Baffle
HV589 00 87-01 Out of stock
Baffle
£24.08 £20.07

  86 Bolt
Bolt
HV817 00 05-10 Out of stock
Bolt
£2.96 £2.47

  90 Handle Bracket Right
Handle Bracket Right
HV582 74 98-02 Out of stock
Handle Bracket Right
£26.93 £22.44

  91 Handle Bracket Left
Handle Bracket Left
HV582 74 67-02 Out of stock
Handle Bracket Left
£26.93 £22.44

  92 Hexagon Nut Flange M8
Hexagon Nut Flange M8
HV582 75 89-01 Out of stock
Hexagon Nut Flange M8
£1.24 £1.03

  142 Screw
Screw
HV576 13 60-06 Out of stock
Screw
£1.36 £1.13

  143 Seal
Seal
HV579 30 09-01 Out of stock
Seal
£18.72 £15.60

  170 Spring
Spring
HV579 24 53-02 Out of stock
Spring
£4.27 £3.56

  171 Rod
Rod
HV580 96 33-01 Out of stock
Rod
£13.27 £11.06

  178 Nut M8
Nut M8
HV531 20 79-82 Out of stock
Nut M8
£2.26 £1.88

  179 Wing Nut
Wing Nut
HV531 20 49-23 Out of stock
Wing Nut
£3.38 £2.82

  180 Washer
Washer
HV531 20 49-22 Out of stock
Washer
£2.11 £1.76

  181 Screw M8x25
Screw M8x25
HV531 20 49-21 In stock
Screw M8x25
£4.09 £3.41

  182 Plug
Plug
HV531 20 89-50 Out of stock
Plug
£0.85 £0.71

  186 Screw M8x50
Screw M8x50
HV531 20 70-89 Out of stock
Screw M8x50
£5.36 £4.47

  191 Hook
Hook
HV504 70 86-01 Out of stock
Hook
£13.66 £11.38

  192 Handle
Handle
HV504 70 84-01 Out of stock
Handle
£28.80 £24.00

  194 Handle
Handle
HV504 70 83-04 Out of stock
Handle
£28.80 £24.00

  195 Handle Upper Half
Handle Upper Half
HV504 70 80-01 Out of stock
Handle Upper Half
£41.89 £34.91

  196 Spring
Spring
HV580 76 19-01 Out of stock
Spring
£6.73 £5.61

  198 Clip
Clip
HV531 20 55-81 Out of stock
Clip
£0.66 £0.55

  199 Handle Lower Half
Handle Lower Half
HV531 20 60-71 Out of stock
Handle Lower Half
£28.74 £23.95

  202 Cable Assy
Cable Assy
HV582 19 21-02 Out of stock
Cable Assy
£26.60 £22.17

  203 Casing
Casing
HV531 21 26-89 Out of stock
Casing
£1.15 £0.96
