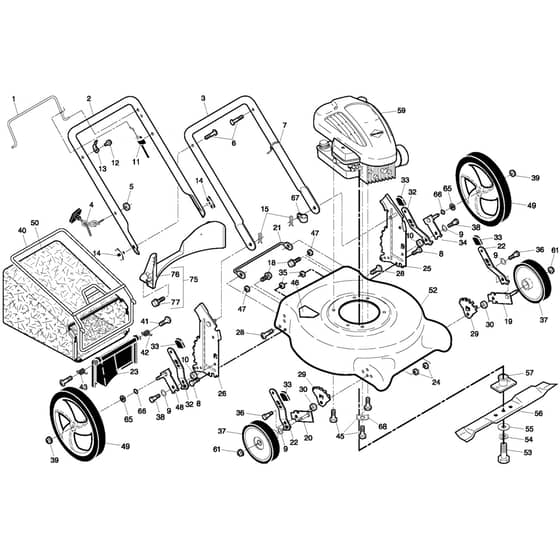

McCulloch M4053 CM - 96131001902 - 2007-06 - Product Complete Parts Diagram

Name: McCulloch M4053 CM - 96131001902 - 2007-06 - Product Complete Parts Diagram
SKU: m4053_cm_96131001902_2007_06_product_complete-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M4053 CM - 96131001902 - 2007-06 - Product Complete Parts Diagram

Description

McCulloch M4053 CM - 96131001902 - 2007-06 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV532 17 42-91 Out of stock	Handle	£42.58 £35.48
4	HV532 19 47-88 Out of stock	Guide	£3.52 £2.93
5	HV532 05 06-75 Out of stock	Nut	£1.87 £1.56
6	HV532 19 15-74 Out of stock	Screw	£4.87 £4.06
8	HV874 78 05-12 Out of stock	Screw	£3.04 £2.53
9	HV532 40 16-30 Out of stock	Washer	£2.76 £2.30
10	HV532 40 16-29 Out of stock	Spacer	£2.23 £1.86
11	HV532 17 65-56 Out of stock	Cable	£22.03 £18.36
12	HV532 75 06-34 Out of stock	Screw	£1.21 £1.01
13	HV532 43 00-34 Out of stock	Bracket	£6.13 £5.11
14	HV532 18 55-77 Out of stock	Knob	£6.24 £5.20
15	HV532 05 17-93 Out of stock	Pin	£3.97 £3.31
18	HV817 60 04-06 Out of stock	Screw	£1.80 £1.50
19	HV532 40 11-74 Out of stock	Axle	£7.99 £6.66
20	HV532 40 66-90 Out of stock	Axle	£13.62 £11.35
24	HV532 42 65-89 Out of stock	Nut	£4.02 £3.35
32	HV532 40 16-24 Out of stock	Spring	£7.51 £6.26
33	HV532 08 78-77 Out of stock	Knob	£4.15 £3.46
36	HV532 40 16-38 Out of stock	Bolt	£6.97 £5.81
40	HV532 41 19-49 Out of stock	Frame	£40.16 £33.47
41	HV532 18 41-93 Out of stock	Bolt	£6.19 £5.16
47	HV532 75 11-53 Out of stock	Nut	£2.26 £1.88
50	HV581 00 21-01 Out of stock	Grassbag	£42.90 £35.75
53	HV532 85 10-84 Out of stock	Screw	£6.26 £5.22
54	HV596 23 87-01 Out of stock	Washer	£2.52 £2.10
55	HV532 85 10-74 Out of stock	Washer	£4.15 £3.46
56	HV532 19 93-77 In stock	Mower Blade	£29.40 £24.50
57	HV581 54 79-01 Out of stock	Adapter	£17.23 £14.36
61	HV532 40 91-48 Out of stock	Nut	£2.87 £2.39
65	HV532 08 83-48 Out of stock	Washer	£1.98 £1.65
66	HV532 19 74-80 Out of stock	O-Ring	£3.16 £2.63
67	HV532 19 79-91 Out of stock	Clip	£0.64 £0.53
77	HV817 41 13-12 Out of stock	Screw	£5.84 £4.87
