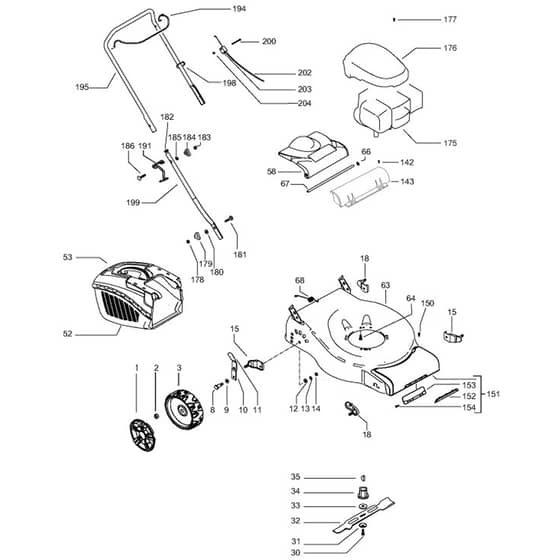

McCulloch M40-125 - 96717460107 - 2019-01 - Product Complete Parts Diagram

Description

McCulloch M40-125 - 96717460107 - 2019-01 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV504 85 78-01 Out of stock	Nut	£3.52 £2.93
3	HV574 41 49-04 Out of stock	Wheel D.170	£22.01 £18.34
8	HV531 20 49-12 Out of stock	Screw M10x26.4	£6.85 £5.71
10	HV586 93 28-01 Out of stock	Lever	£7.78 £6.48
11	HV574 61 05-01 Out of stock	Knob	£6.82 £5.68
12	HV531 20 79-89 Out of stock	Washer	£4.34 £3.62
13	HV531 20 89-74 Out of stock	Washer	£2.23 £1.86
14	HV531 20 79-78 Out of stock	Nut M10x26.4	£3.48 £2.90
15	HV504 85 16-01 Out of stock	Support Wheel	£13.56 £11.30
18	HV504 85 15-01 Out of stock	Support Wheel	£14.16 £11.80
30	HV531 20 80-08 Out of stock	Screw 3/8"	£6.85 £5.71
31	HV525 46 32-02 Out of stock	Washer	£2.71 £2.26
32	HV587 15 90-10 Out of stock	Mower Blade	£27.53 £22.94
33	HV525 42 31-01 Out of stock	Washer	£2.47 £2.06
34	HV531 20 72-42 Out of stock	Adapter	£17.42 £14.52
35	HV505 29 09-01 Out of stock	Key	£2.33 £1.94
52	HV574 61 04-01 Out of stock	Grassbag Lower Half	£48.10 £40.08
53	HV574 61 03-01 Out of stock	Grassbag Upper Half	£39.60 £33.00
58	HV574 61 02-01 Out of stock	Hatch	£36.17 £30.14
66	HV584 81 69-03 Out of stock	Lockwasher	£0.74 £0.62
67	HV531 20 50-60 Out of stock	Shaft	£18.66 £15.55
68	HV531 20 59-99 Out of stock	Spring	£4.09 £3.41
142	HV576 13 60-06 Out of stock	Screw M5x8	£1.51 £1.26
143	HV579 30 09-01 Out of stock	Seal	£20.33 £16.94
151	HV575 56 20-04 Out of stock	Front Cover Assy	£35.92 £29.93
152	HV574 37 52-01 Out of stock	Cover (151)	£6.17 £5.14
153	HV574 72 17-01 Out of stock	Attachment Plate (151)	£2.87 £2.39
154	HV575 95 57-01 Out of stock	Screw Itxpant (151)	£1.42 £1.18
176	HV580 44 56-01 Out of stock	Shroud	£26.22 £21.85
177	HV532 18 16-98 Out of stock	Screw	£1.74 £1.45
178	HV531 20 79-82 Out of stock	Nut M8	£2.33 £1.94
179	HV531 20 49-23 Out of stock	Wing Nut	£4.00 £3.33
180	HV531 20 49-22 Out of stock	Washer	£2.48 £2.07
181	HV531 20 49-21 Out of stock	Screw M8x25	£4.86 £4.05
182	HV531 20 89-50 Out of stock	Plug	£0.86 £0.72
186	HV531 20 70-89 Out of stock	Screw M8x50	£6.85 £5.71
191	HV504 70 86-01 Out of stock	Hook	£14.02 £11.68
194	HV504 70 83-04 Out of stock	Handle	£29.54 £24.62
195	HV504 70 80-01 Out of stock	Handle Upper Half	£42.97 £35.81
198	HV531 20 55-81 Out of stock	Clip	£0.66 £0.55
199	HV531 20 60-71 Out of stock	Handle Lower Half	£29.48 £24.57
202	HV582 19 21-02 Out of stock	Cable Assy	£27.29 £22.74
203	HV531 20 80-43 In stock	Bracket	£1.31 £1.09
