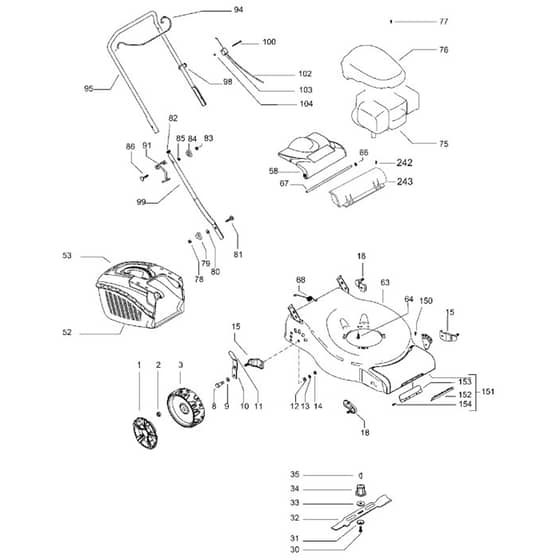

McCulloch M40–125 - 96717460103 - 2014-01 - Product Complete Parts Diagram

Name: McCulloch M40–125 - 96717460103 - 2014-01 - Product Complete Parts Diagram
SKU: m40_125_96717460103_2014_01_product_complete-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M40–125 - 96717460103 - 2014-01 - Product Complete Parts Diagram

Description

McCulloch M40–125 - 96717460103 - 2014-01 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV504 85 78-01 Out of stock	Nut	£3.43 £2.86
3	HV574 41 49-02 Out of stock	Wheel	£18.96 £15.80
8	HV531 20 49-12 Out of stock	Screw	£5.46 £4.55
9	HV531 20 66-43 Out of stock	Washer	£2.46 £2.05
10	HV586 93 28-01 Out of stock	Lever	£7.58 £6.32
11	HV574 61 05-01 Out of stock	Knob	£6.66 £5.55
12	HV531 20 79-89 Out of stock	Washer	£4.24 £3.53
13	HV531 20 89-74 Out of stock	Washer	£1.93 £1.61
14	HV531 20 79-78 Out of stock	Nut	£2.96 £2.47
15	HV504 85 16-01 Out of stock	Support Wheel	£13.21 £11.01
18	HV504 85 15-01 Out of stock	Support Wheel	£13.81 £11.51
30	HV531 20 80-08 Out of stock	Screw	£5.65 £4.71
31	HV525 46 32-02 Out of stock	Washer	£2.62 £2.18
32	HV587 15 90-10 Out of stock	Mower Blade	£26.82 £22.35
33	HV525 42 31-01 Out of stock	Washer	£2.94 £2.45
34	HV531 20 72-42 Out of stock	Adapter	£14.78 £12.32
35	HV505 29 09-01 Out of stock	Key	£2.33 £1.94
52	HV574 61 03-01 Out of stock	Grassbag	£38.60 £32.17
53	HV574 61 04-01 Out of stock	Grassbag	£46.90 £39.08
58	HV574 61 02-01 Out of stock	Hatch	£35.26 £29.38
64	HV532 15 04-06 Out of stock	Screw	£4.66 £3.88
66	HV584 81 69-03 Out of stock	Lockwasher	£0.66 £0.55
67	HV531 20 50-60 Out of stock	Shaft	£15.82 £13.18
68	HV531 20 59-99 Out of stock	Spring	£3.49 £2.91
76	HV580 44 56-01 Out of stock	Shroud	£25.55 £21.29
77	HV532 18 16-98 Out of stock	Screw	£1.39 £1.16
78	HV531 20 79-82 Out of stock	Nut	£2.26 £1.88
79	HV531 20 49-23 Out of stock	Wing Nut	£3.38 £2.82
80	HV531 20 49-22 Out of stock	Washer	£2.11 £1.76
81	HV531 20 49-21 In stock	Screw	£4.09 £3.41
82	HV531 20 89-50 Out of stock	Plug	£0.85 £0.71
86	HV531 20 70-89 Out of stock	Screw	£5.36 £4.47
91	HV504 70 86-01 Out of stock	Hook	£13.66 £11.38
94	HV504 70 83-04 Out of stock	Handle	£28.80 £24.00
95	HV504 70 80-01 Out of stock	Handle	£41.89 £34.91
98	HV531 20 55-81 Out of stock	Clip	£0.66 £0.55
99	HV531 20 60-71 Out of stock	Handle	£28.74 £23.95
102	HV582 19 21-02 Out of stock	Brake Wire	£26.60 £22.17
103	HV531 20 80-43 In stock	Bracket	£1.01 £0.84
151	HV575 56 20-04 Out of stock	Front Cover Assy	£35.02 £29.18
152	HV574 37 52-01 Out of stock	Cover	£6.01 £5.01
153	HV574 72 17-01 Out of stock	Attachment Plate	£2.81 £2.34
154	HV575 95 57-01 Out of stock	Screw Itxpant	£1.37 £1.14
243	HV579 30 09-01 Out of stock	Seal	£18.72 £15.60
