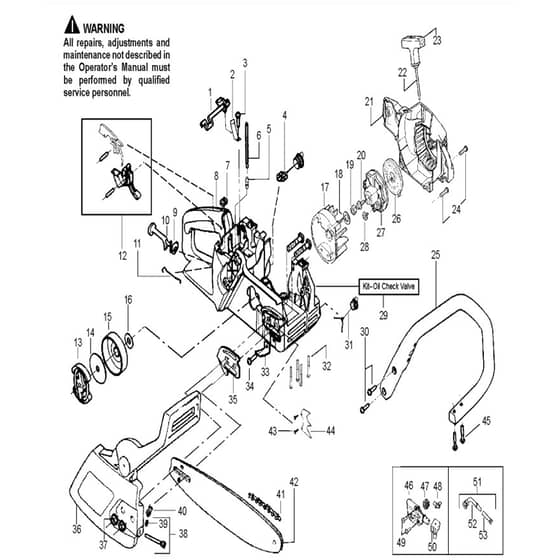

McCulloch M3416 N - 2008-06 - Chassis & Enclosures Parts Diagram

Name: McCulloch M3416 N - 2008-06 - Chassis & Enclosures Parts Diagram
SKU: m3416_n_2008_06_chassis_enclosures-group
Price: 0.94 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M3416 N - 2008-06 - Chassis & Enclosures Parts Diagram

Description

McCulloch M3416 N - 2008-06 - Chassis & Enclosures Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV530 01 61-49 Out of stock	Spring	£2.87 £2.39
3	HV530 01 57-75 Out of stock	Screw	£1.84 £1.53
4	HV580 94 09-01 In stock	Tank	£9.05 £7.54
5	HV530 02 38-77 Out of stock	Nipple	£5.77 £4.81
6	HV530 06 92-16 Out of stock	Fuel Hose	£10.25 £8.54
7	HV530 01 59-22 Out of stock	Nut	£1.42 £1.18
9	HV530 04 90-05 Out of stock	Guide	£3.31 £2.76
10	HV530 04 79-89 Out of stock	Choke Control	£5.22 £4.35
13	HV599 58 86-01 Out of stock	Clutch	£51.79 £43.16
14	HV530 01 56-11 Out of stock	Washer	£6.78 £5.65
15	HV530 04 70-61 In stock	Clutch Drum Assy	£36.17 £30.14
16	HV530 01 59-07 Out of stock	Washer	£2.36 £1.97
18	HV530 01 51-27 Out of stock	Washer	£2.36 £1.97
19	HV530 01 61-34 Out of stock	Nut	£2.02 £1.68
20	HV530 01 59-20 Out of stock	Screw	£1.84 £1.53
22	HV530 06 92-32 Out of stock	Starter Rope	£4.20 £3.50
23	HV530 05 64-02 Out of stock	Handle	£4.76 £3.97
24	HV530 01 58-92 Out of stock	Screw	£1.39 £1.16
26	HV545 00 80-15 Out of stock	Spring	£13.10 £10.92
28	HV530 01 60-80 Out of stock	Screw	£1.19 £0.99
29	HV530 07 16-66 Out of stock	Valve	£15.17 £12.64
30	HV530 01 58-14 Out of stock	Screw	£1.63 £1.36
32	HV530 01 61-32 Out of stock	Bolt	£4.09 £3.41
33	HV530 02 98-50 Out of stock	Chain Catcher	£4.09 £3.41
35	HV530 03 82-38 Out of stock	Plate	£7.62 £6.35
36	HV545 13 99-02 Out of stock	Chain Brake	£69.00 £57.50
37	HV530 01 59-17 Out of stock	Nut	£2.35 £1.96
38	HV530 06 96-11 Out of stock	Retainer	£5.78 £4.82
39	HV530 03 85-93 Out of stock	Retainer	£1.93 £1.61
40	HV530 01 58-26 Out of stock	Pen	£1.39 £1.16
43	HV530 01 64-39 Out of stock	Screw	£1.39 £1.16
44	HV530 01 43-81 In stock	Felling Dog	£10.76 £8.97
45	HV530 01 59-40 Out of stock	Screw	£1.84 £1.53
46	HV530 07 12-59 Out of stock	Oil Pump	£28.42 £23.68
47	HV530 03 78-20 Out of stock	Worm Gear	£6.43 £5.36
48	HV530 04 94-77 Out of stock	Elbow	£4.68 £3.90
49	HV530 01 60-64 Out of stock	Screw	£1.13 £0.94
50	HV530 01 92-06 Out of stock	Sealing	£6.22 £5.18
51	HV530 04 76-63 In stock	Hose	Was £10.97 £9.14 Special Price £8.86 £7.38
53	HV530 05 65-33 Out of stock	Screen	£7.14 £5.95
