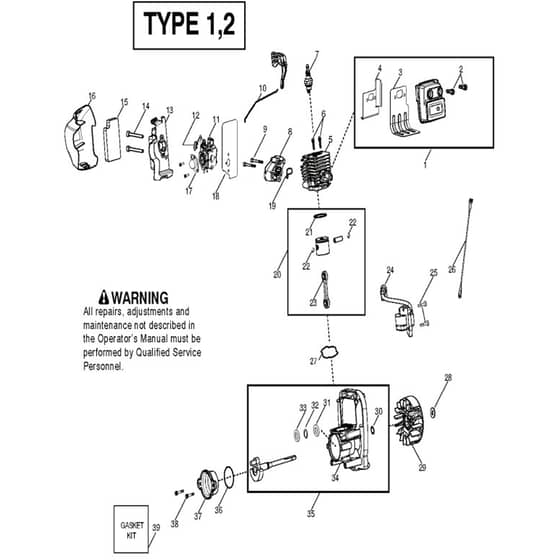

McCulloch M320 - 2010-07 - Engine Parts Diagram

McCulloch M320 - 2010-07 - Engine Parts Diagram
McCulloch M320 - 2010-07 - Engine Parts Diagram

Description

McCulloch M320 - 2010-07 - Engine Parts Diagram

Ref. Img. Part No. Details
  2 Bolt
Bolt
HV530 05 89-82 Out of stock
Bolt
£2.08 £1.73

  5 Cylinder
Cylinder
HV545 11 53-01 Out of stock
Cylinder
£62.69 £52.24

  6 Screw
Screw
HV530 01 59-53 Out of stock
Screw
£2.08 £1.73

  7 Spark Plug
Spark Plug
9411 In stock
Spark Plug
£2.52 £2.10

  8 Adapter Carburetor
Adapter Carburetor
HV545 08 49-01 Out of stock
Adapter Carburetor
£13.21 £11.01

  10 Linkage Throttle W
Linkage Throttle W
HV545 11 55-01 Out of stock
Linkage Throttle W
£3.89 £3.24

  11 Carburettor Kit
Carburettor Kit
HV545 08 18-55 Out of stock
Carburettor Kit
£58.31 £48.59

  12 Lever Choke Wt-875
Lever Choke Wt-875
HV545 15 71-03 Out of stock
Lever Choke Wt-875
£9.04 £7.53

  13 Base Airbox Red
Base Airbox Red
HV545 11 26-03 Out of stock
Base Airbox Red
£9.50 £7.92

  14 Screw
Screw
HV530 01 64-29 Out of stock
Screw
£2.52 £2.10

  15 Air Filter Foam
Air Filter Foam
HV545 11 68-01 Out of stock
Air Filter Foam
£7.04 £5.87

  16 Cover
Cover
HV545 11 27-02 Out of stock
Cover
£7.44 £6.20

  17 Purge Bulb-188-16
Purge Bulb-188-16
HV530 03 54-97 Out of stock
Purge Bulb-188-16
£14.34 £11.95

  18 Gasket Kit
Gasket Kit
HV545 08 18-32 Out of stock
Gasket Kit
£18.55 £15.46

  20 Piston Assy
Piston Assy
HV545 08 18-64 Out of stock
Piston Assy
£62.66 £52.22

  21 Piston Ring
Piston Ring
HV545 15 40-09 Out of stock
Piston Ring
£12.26 £10.22

  22 Circlip
Circlip
HV530 01 51-62 Out of stock
Circlip
£1.93 £1.61

  24 Module Ign 8 Deg 1600 V
Module Ign 8 Deg 1600 V
HV501 09 28-01 Out of stock
Module Ign 8 Deg 1600 V
£48.56 £40.47

  26 Harness
Harness
HV545 12 76-01 Out of stock
Harness
£7.85 £6.54

  29 Flywheel Assy
Flywheel Assy
HV545 19 73-01 Out of stock
Flywheel Assy
£38.64 £32.20

  32 Seal
Seal
HV530 01 92-64 Out of stock
Seal
£5.06 £4.22

  33 Bearing
Bearing
HV530 03 21-25 Out of stock
Bearing
£9.24 £7.70

  34 Crankcase
Crankcase
HV530 01 25-82 Out of stock
Crankcase
£62.76 £52.30

  35 Assy Crankcase & Crankshaft
Assy Crankcase & Crankshaft
HV545 10 21-02 Out of stock
Assy Crankcase & Crankshaft
£39.47 £32.89

  37 Plug
Plug
HV530 05 79-54 Out of stock
Plug
£6.01 £5.01

  38 Screw
Screw
HV530 01 63-86 Out of stock
Screw
£1.39 £1.16
