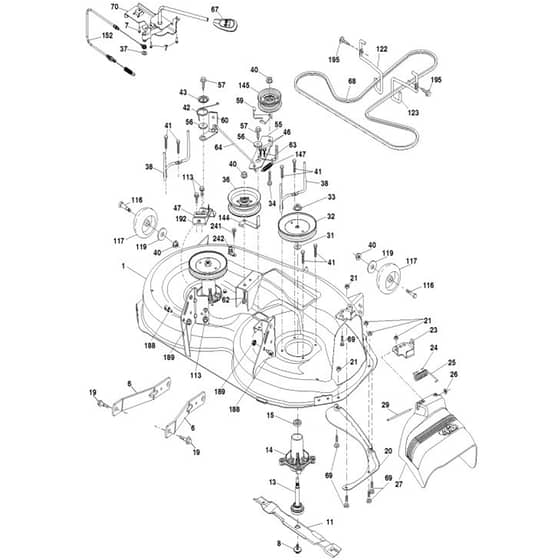

McCulloch M22042H - 96041023501 - 2012-06 - Mower Deck - Cutting Deck Parts Diagram

McCulloch M22042H - 96041023501 - 2012-06 - Mower Deck - Cutting Deck Parts Diagram
McCulloch M22042H - 96041023501 - 2012-06 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M22042H - 96041023501 - 2012-06 - Mower Deck - Cutting Deck Parts Diagram

Ref. Img. Part No. Details
  -1 Spindle (--) HV532 19 28-70
Spindle (--)
Out of stock
£124.66 £103.88

  0 Cutting Deck (--) HV532 43 77-30
Cutting Deck (--)
Out of stock
£833.33 £694.44

  7 Screw HV532 41 63-58
Screw
Out of stock
£1.63 £1.36

  8 Screw HV532 19 30-03
Screw
In stock
£15.37 £12.81

  11 Blade HV532 13 89-71
Blade
Out of stock
£27.13 £22.61

  13 Shaft Assy HV532 19 28-72
Shaft Assy
Out of stock
£153.76 £128.13

  14 Bearing Housing HV587 81 97-01
Bearing Housing
Out of stock
£153.76 £128.13

  15 Bearing HV532 11 04-85
Bearing
Out of stock
£7.69 £6.41

  19 Bolt HV532 19 65-39
Bolt
Out of stock
£5.94 £4.95

  20 Rail HV532 15 97-70
Rail
Out of stock
£22.40 £18.67

  23 Hinge HV532 19 25-57
Hinge
Out of stock
£10.96 £9.13

  24 Hub Cap HV532 10 53-04
Hub Cap
Out of stock
£2.87 £2.39

  25 Torsion Spring HV532 19 70-26
Torsion Spring
Out of stock
£10.68 £8.90

  26 Nut HV532 11 04-52
Nut
Out of stock
£1.64 £1.37

  27 Shield HV532 40 30-04
Shield
Out of stock
£48.02 £40.02

  29 Shaft HV595 29 70-01
Shaft
Out of stock
£13.98 £11.65

  31 Washer HV532 18 76-90
Washer
In stock
£2.96 £2.47

  32 Pulley HV532 19 59-45
Pulley
Out of stock
£45.22 £37.68

  33 Nut HV596 13 48-01
Nut
Out of stock
£1.19 £0.99

  34 Bolt HV596 13 61-01
Bolt
Out of stock
£6.37 £5.31

  36 Pulley HV532 19 61-06
Pulley
Out of stock
£81.38 £67.82

  38 Keeper HV589 67 61-03
Keeper
Out of stock
£11.86 £9.88

  40 Nut HV532 40 91-49
Nut
Out of stock
£4.51 £3.76

  41 Bolt HV584 95 39-01
Bolt
Out of stock
£4.74 £3.95

  42 Spring HV532 19 84-10
Spring
Out of stock
£4.15 £3.46

  43 Spring HV532 19 72-56
Spring
Out of stock
£4.03 £3.36

  46 Screw HV532 13 77-29
Screw
Out of stock
£2.40 £2.00

  47 Bracket HV532 19 72-50
Bracket
Out of stock
£7.28 £6.07

  55 Arm HV532 43 71-10
Arm
Out of stock
£15.19 £12.66

  56 Spacer HV532 19 90-92
Spacer
Out of stock
£6.66 £5.55

  57 Screw HV817 00 06-16
Screw
Out of stock
£5.18 £4.32

  62 Bolt HV872 11 06-16
Bolt
Out of stock
£5.75 £4.79

  63 Arm HV532 19 94-78
Arm
Out of stock
£19.30 £16.08

  67 Handle HV532 40 97-92
Handle
Out of stock
£8.81 £7.34

  68 Belt HV598 55 91-01
Belt
Out of stock
£58.84 £49.03

  69 Bolt HV596 13 64-01
Bolt
Out of stock
£3.16 £2.63

  70 Clutch HV532 19 83-32
Clutch
Out of stock
£51.76 £43.13

  113 Bolt HV817 00 05-10
Bolt
Out of stock
£2.96 £2.47

  117 Wheel HV532 18 86-06
Wheel
Out of stock
£14.87 £12.39

  119 Washer HV734 11 72-01
Washer
Out of stock
£1.87 £1.56

  122 Belt Guide HV531 16 95-01
Belt Guide
Out of stock
£18.25 £15.21

  123 Belt Guide HV531 16 97-01
Belt Guide
Out of stock
£12.98 £10.82

  145 Pulley HV532 17 79-68
Pulley
Out of stock
£49.49 £41.24

  147 Spring HV532 40 19-71
Spring
Out of stock
£4.56 £3.80

  152 Cable HV532 43 51-11
Cable
In stock
£56.68 £47.23

  188 Stud HV532 19 51-61
Stud
Out of stock
£2.38 £1.98

  189 Nut HV873 90 05-00
Nut
Out of stock
£2.20 £1.83

  195 Screw HV817 00 06-12
Screw
Out of stock
£4.74 £3.95

  241 Screw HV532 15 29-27
Screw
Out of stock
£2.08 £1.73

  242 Hose Coupling HV532 41 55-98
Hose Coupling
Out of stock
£5.04 £4.20
