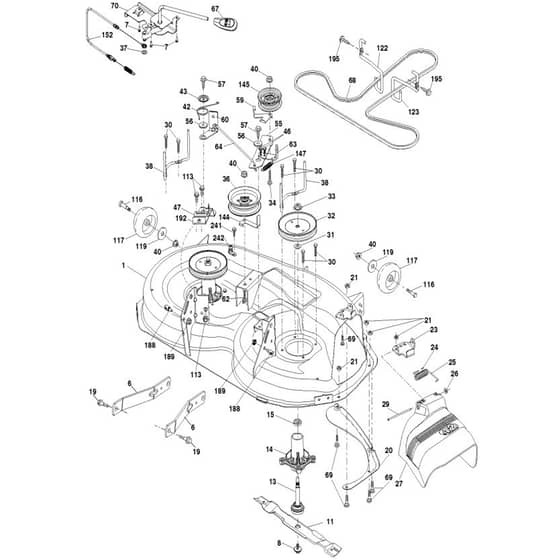

McCulloch M22042H - 96041018000 - 2010-01 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M22042H - 96041018000 - 2010-01 - Mower Deck - Cutting Deck Parts Diagram
SKU: m22042h_96041018000_2010_01_mower_deck_cutting_deck-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M22042H - 96041018000 - 2010-01 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M22042H - 96041018000 - 2010-01 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 19 28-70 Out of stock	Spindle (--)	£124.66 £103.88
0	HV532 43 77-30 Out of stock	Cutting Deck (--)	£833.33 £694.44
7	HV532 41 63-58 Out of stock	Screw	£1.63 £1.36
8	HV532 19 30-03 In stock	Screw	£15.37 £12.81
11	HV532 13 89-71 Out of stock	Blade	£27.13 £22.61
13	HV532 19 28-72 Out of stock	Shaft Assy	£153.76 £128.13
14	HV587 81 97-01 Out of stock	Bearing Housing	£153.76 £128.13
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
19	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
20	HV532 15 97-70 Out of stock	Rail	£22.40 £18.67
23	HV532 19 25-57 Out of stock	Hinge	£10.96 £9.13
24	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
25	HV532 19 70-26 Out of stock	Torsion Spring	£10.68 £8.90
26	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
27	HV532 40 30-04 Out of stock	Shield	£48.02 £40.02
29	HV595 29 70-01 Out of stock	Shaft	£13.98 £11.65
30	HV584 95 39-01 Out of stock	Screw	£4.74 £3.95
31	HV532 18 76-90 In stock	Washer	£2.96 £2.47
32	HV532 19 59-45 Out of stock	Pulley	£45.22 £37.68
33	HV596 13 48-01 Out of stock	Nut	£1.19 £0.99
34	HV596 13 61-01 Out of stock	Bolt	£6.37 £5.31
36	HV532 19 61-06 Out of stock	Pulley	£81.38 £67.82
40	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
42	HV532 19 84-10 Out of stock	Spring	£4.15 £3.46
43	HV532 19 72-56 Out of stock	Spring	£4.03 £3.36
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
47	HV532 19 72-50 Out of stock	Bracket	£7.28 £6.07
55	HV532 43 71-10 Out of stock	Arm	£15.19 £12.66
56	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
57	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
62	HV872 11 06-16 Out of stock	Bolt	£5.75 £4.79
63	HV532 19 94-78 Out of stock	Arm	£19.30 £16.08
67	HV532 40 30-12 Out of stock	Handle	£10.99 £9.16
68	HV598 55 91-01 Out of stock	Belt	£58.84 £49.03
69	HV596 13 64-01 Out of stock	Bolt	£3.16 £2.63
70	HV532 19 83-32 Out of stock	Clutch	£51.76 £43.13
113	HV817 00 05-10 Out of stock	Bolt	£2.96 £2.47
117	HV532 18 86-06 Out of stock	Wheel	£14.87 £12.39
118	HV596 32 26-01 Out of stock	Nut	£3.14 £2.62
119	HV734 11 72-01 Out of stock	Washer	£1.87 £1.56
122	HV531 16 95-01 Out of stock	Belt Guide	£18.25 £15.21
123	HV531 16 97-01 Out of stock	Belt Guide	£12.98 £10.82
145	HV532 17 79-68 Out of stock	Pulley	£49.49 £41.24
147	HV532 40 19-71 Out of stock	Spring	£4.56 £3.80
152	HV532 43 51-11 In stock	Cable	£56.68 £47.23
188	HV532 19 51-61 Out of stock	Stud	£2.38 £1.98
189	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
195	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
241	HV532 15 29-27 Out of stock	Screw	£2.08 £1.73
242	HV532 41 55-98 Out of stock	Hose Coupling	£5.04 £4.20
