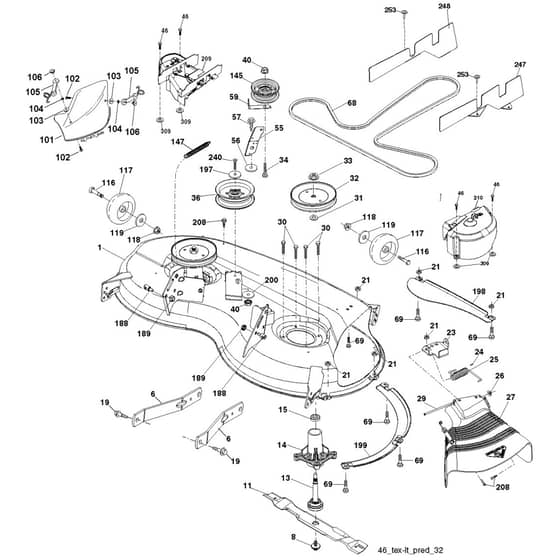

McCulloch M200117H - 96041006501 - 2010-03 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M200117H - 96041006501 - 2010-03 - Mower Deck - Cutting Deck Parts Diagram
SKU: m200117h_96041006501_2010_03_mower_deck_cutting_deck-group
Price: 1.01 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M200117H - 96041006501 - 2010-03 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M200117H - 96041006501 - 2010-03 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 19 28-70	Spindle (--)	Out of stock	£118.68 £98.90
1	HV532 40 97-82	Deck Shell	Out of stock	£281.28 £234.40
8	HV532 19 30-03	Screw	In stock	£16.43 £13.69
11	HV532 40 31-07	Ride On Blade	Out of stock	£36.43 £30.36
13	HV532 19 28-72	Shaft Assy	Out of stock	£153.76 £128.13
14	HV587 81 97-01	Bearing Housing	Out of stock	£150.84 £125.70
15	HV532 11 04-85	Bearing	Out of stock	£7.96 £6.63
19	HV532 19 65-39	Bolt	Out of stock	£5.94 £4.95
23	HV532 19 25-57	Hinge	Out of stock	£13.06 £10.88
24	HV532 10 53-04	Hub Cap	Out of stock	£3.35 £2.79
25	HV532 19 70-26	Torsion Spring	Out of stock	£10.68 £8.90
26	HV532 11 04-52	Nut	Out of stock	£1.64 £1.37
29	HV595 29 70-01	Shaft	Out of stock	£13.98 £11.65
30	HV584 95 39-01	Screw	Out of stock	£5.60 £4.67
31	HV532 18 76-90	Washer	Out of stock	£3.48 £2.90
32	HV532 19 59-45	Pulley	Out of stock	£53.26 £44.38
33	HV596 13 48-01	Nut	Out of stock	£1.24 £1.03
34	HV596 13 61-01	Bolt	Out of stock	£6.54 £5.45
36	HV532 17 79-68	Pulley	Out of stock	£58.08 £48.40
46	HV532 13 77-29	Screw	Out of stock	£2.40 £2.00
55	HV531 16 94-01	Arm	In stock	£19.13 £15.94
56	HV532 19 90-92	Spacer	Out of stock	£6.66 £5.55
57	HV817 00 06-16	Screw	Out of stock	£6.11 £5.09
68	HV584 45 31-01	Belt	Out of stock	£63.60 £53.00
69	HV596 13 64-01	Bolt	In stock	£3.26 £2.72
102	HV596 03 90-01	Screw	Out of stock	£1.21 £1.01
103	HV819 06 12-16	Washer	Out of stock	£2.75 £2.29
104	HV810 07 10-00	Washer	Out of stock	£2.48 £2.07
105	HV597 00 06-01	Latch	Out of stock	£9.14 £7.62
106	HV596 98 74-01	Nut	Out of stock	£2.77 £2.31
117	HV532 17 48-73	Wheel	Out of stock	£19.82 £16.52
118	HV532 40 91-49	Nut	Out of stock	£4.51 £3.76
145	HV532 19 61-06	Pulley	Out of stock	£89.16 £74.30
147	HV532 19 72-51	Spring	Out of stock	£18.04 £15.03
188	HV532 19 51-61	Stud	Out of stock	£2.86 £2.38
189	HV873 90 05-00	Nut	Out of stock	£2.60 £2.17
197	HV734 11 72-01	Washer	Out of stock	£2.02 £1.68
198	HV532 40 31-49	Plate	Out of stock	£29.83 £24.86
199	HV532 40 31-50	Plate	Out of stock	£32.32 £26.93
200	HV532 41 35-24	Washer	Out of stock	£8.71 £7.26
208	HV817 67 06-08	Screw	Out of stock	£5.09 £4.24
309	HV532 42 30-62	Nut	Out of stock	£1.21 £1.01
