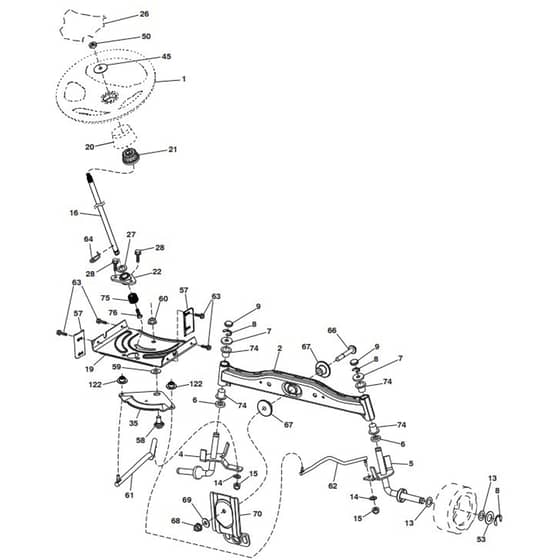

McCulloch M200-117T - 96041039200 - 2016-03 - Steering Parts Diagram

Name: McCulloch M200-117T - 96041039200 - 2016-03 - Steering Parts Diagram
SKU: m200_117t_96041039200_2016_03_steering-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M200-117T - 96041039200 - 2016-03 - Steering Parts Diagram

Description

McCulloch M200-117T - 96041039200 - 2016-03 - Steering Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 42 45-51 Out of stock	Steering Wheel	£47.17 £39.31
2	HV531 17 11-01 Out of stock	Axle	£123.32 £102.77
4	HV596 87 36-01 Out of stock	Spindle	£67.32 £56.10
5	HV538 69 12-01 Out of stock	Spindle	£67.44 £56.20
6	HV532 00 62-66 Out of stock	Washer	£2.36 £1.97
7	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
8	HV812 00 00-29 Out of stock	Retainer Ring	£0.78 £0.65
9	HV532 12 12-32 Out of stock	Hub Cap	£4.56 £3.80
13	HV532 12 17-49 Out of stock	Washer	£2.78 £2.32
16	HV587 01 60-02 Out of stock	Shaft	£7.88 £6.57
19	HV532 19 47-29 Out of stock	Plate	£65.40 £54.50
20	HV532 42 47-40 Out of stock	Boot	£9.36 £7.80
22	HV587 73 89-01 Out of stock	Bearing	£10.31 £8.59
26	HV532 42 45-53 Out of stock	Insert	£16.45 £13.71
27	HV819 21 16-16 Out of stock	Washer	£2.36 £1.97
28	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
35	HV532 19 47-32 Out of stock	Plate	£65.46 £54.55
50	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
53	HV532 18 89-67 Out of stock	Washer	£4.24 £3.53
58	HV532 19 47-47 Out of stock	Bolt	£10.69 £8.91
59	HV532 19 47-48 Out of stock	Washer	£4.06 £3.38
61	HV597 04 78-02 Out of stock	Link	£63.56 £52.97
62	HV597 04 79-02 Out of stock	Link	£57.04 £47.53
63	HV532 42 88-67 Out of stock	Screw	£3.20 £2.67
64	HV532 19 98-49 Out of stock	Spring Retainer	£2.87 £2.39
66	HV871 02 07-48 Out of stock	Bolt	£7.52 £6.27
67	HV532 19 47-37 Out of stock	Bushing	£17.21 £14.34
68	HV873 90 07-00 Out of stock	Nut	£4.14 £3.45
69	HV532 19 91-62 Out of stock	Washer	£7.62 £6.35
70	HV585 33 88-01 Out of stock	Bracket	£26.28 £21.90
74	HV532 00 33-66 Out of stock	Bearing	£5.46 £4.55
75	HV587 73 89-06 Out of stock	Pinion	£3.41 £2.84
76	HV580 68 36-01 Out of stock	Screw	£1.51 £1.26
