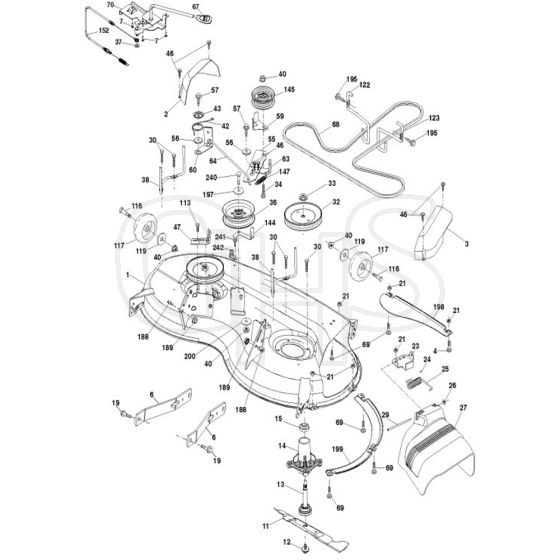

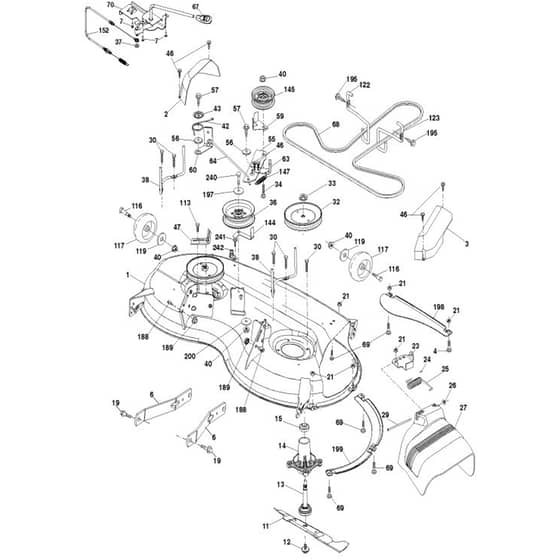

McCulloch M200-117T - 96041035700 - 2013-06 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M200-117T - 96041035700 - 2013-06 - Mower Deck - Cutting Deck Parts Diagram
SKU: m200_117t_96041035700_2013_06_mower_deck_cutting_deck-group
Price: 1.03 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M200-117T - 96041035700 - 2013-06 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M200-117T - 96041035700 - 2013-06 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
14	HV587 81 97-01	Mandrel Assembly (Includes Housing (Key # 14)+ Shaft Assembly (Key # 13) And (Key # 15) - Pulley/Nut/ Washer And Blade Bolt/Washers Not Included (--)	Out of stock	£150.84 £125.70
1	HV532 40 97-82	Deck Shell	Out of stock	£281.28 £234.40
2	HV532 40 55-07	Cover	Out of stock	£11.32 £9.43
3	HV532 40 55-06	Cover	Out of stock	£11.32 £9.43
7	HV532 41 63-58	Screw	Out of stock	£1.99 £1.66
11	HV532 40 53-80	Ride On Blade	Out of stock	£36.43 £30.36
12	HV584 30 93-01	Screw	In stock	£8.53 £7.11
15	HV532 11 04-85	Bearing	Out of stock	£7.96 £6.63
19	HV532 19 65-39	Bolt	Out of stock	£5.94 £4.95
23	HV532 19 25-57	Hinge	Out of stock	£13.06 £10.88
24	HV532 10 53-04	Hub Cap	Out of stock	£3.35 £2.79
25	HV532 19 70-26	Torsion Spring	Out of stock	£10.68 £8.90
26	HV532 11 04-52	Nut	Out of stock	£1.64 £1.37
27	HV532 40 53-57	Deflector	Out of stock	£109.08 £90.90
29	HV595 29 70-01	Shaft	Out of stock	£13.98 £11.65
30	HV584 95 39-01	Screw	Out of stock	£5.60 £4.67
32	HV532 19 59-45	Pulley	Out of stock	£53.26 £44.38
33	HV596 13 48-01	Nut	Out of stock	£1.24 £1.03
34	HV596 13 61-01	Bolt	Out of stock	£6.54 £5.45
36	HV532 17 79-68	Pulley	Out of stock	£58.08 £48.40
38	HV589 67 61-03	Keeper	Out of stock	£10.51 £8.76
40	HV532 40 91-49	Nut	Out of stock	£4.51 £3.76
42	HV532 19 84-10	Spring	Out of stock	£4.86 £4.05
43	HV532 19 72-56	Spring	Out of stock	£4.03 £3.36
46	HV532 13 77-29	Screw	Out of stock	£2.40 £2.00
47	HV532 19 72-50	Bracket	Out of stock	£8.71 £7.26
56	HV532 19 90-92	Spacer	Out of stock	£6.66 £5.55
57	HV817 00 06-16	Screw	Out of stock	£6.11 £5.09
63	HV532 19 94-78	Arm	Out of stock	£24.26 £20.22
67	HV532 40 30-12	Handle	Out of stock	£13.06 £10.88
68	HV584 45 31-01	Belt	Out of stock	£63.60 £53.00
69	HV596 13 64-01	Bolt	Out of stock	£3.26 £2.72
113	HV817 00 05-10	Bolt	Out of stock	£3.48 £2.90
117	HV532 17 48-73	Wheel	Out of stock	£19.82 £16.52
122	HV531 16 95-01	Belt Guide	Out of stock	£18.73 £15.61
123	HV531 16 97-01	Belt Guide	Out of stock	£12.98 £10.82
145	HV532 19 61-06	Pulley	Out of stock	£89.16 £74.30
147	HV532 40 18-72	Spring	Out of stock	£7.39 £6.16
152	HV532 43 51-11	Cable	In stock	£65.28 £54.40
188	HV532 19 51-61	Stud	Out of stock	£2.86 £2.38
189	HV873 90 05-00	Nut	Out of stock	£2.60 £2.17
195	HV817 00 06-12	Screw	Out of stock	£5.60 £4.67
197	HV734 11 72-01	Washer	Out of stock	£2.02 £1.68
198	HV532 40 31-49	Plate	Out of stock	£29.83 £24.86
199	HV532 40 31-50	Plate	Out of stock	£32.32 £26.93
200	HV532 41 35-24	Washer	Out of stock	£8.71 £7.26
241	HV532 15 29-27	Screw	Out of stock	£2.48 £2.07
242	HV532 41 55-98	Hose Coupling	Out of stock	£5.96 £4.97
