McCulloch M200-117T - 96041033901 - 2014-04 - Mower Deck - Cutting Deck Parts Diagram

Description

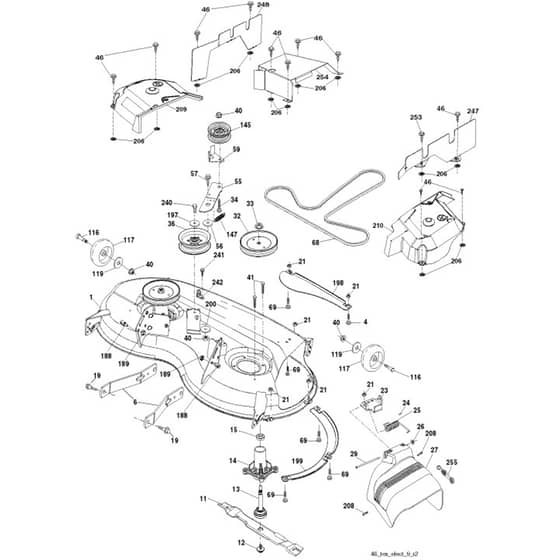

McCulloch M200-117T - 96041033901 - 2014-04 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 40 97-82	Deck	Out of stock	£242.88 £202.40
14	HV587 81 97-01	Mandrel Mandrel Assembly (Includes Housing (Key# 14)+ Shaft Assembly (Key# 13)+ Bearing (Key# 15) Only-Pulley/Washer And Blade Bolt/Washer Not Included.) (--)	Out of stock	£150.84 £125.70
11	HV532 40 53-80	Ride On Blade	Out of stock	£30.83 £25.69
12	HV584 30 93-01	Screw	In stock	£8.53 £7.11
15	HV532 11 04-85	Bearing	Out of stock	£7.96 £6.63
19	HV532 19 65-39	Bolt	Out of stock	£5.94 £4.95
23	HV532 19 25-57	Hinge	Out of stock	£11.23 £9.36
24	HV532 10 53-04	Hub Cap	Out of stock	£2.93 £2.44
25	HV532 19 70-26	Torsion Spring	Out of stock	£10.68 £8.90
26	HV532 11 04-52	Nut	Out of stock	£1.64 £1.37
29	HV595 29 70-01	Shaft	Out of stock	£13.98 £11.65
32	HV532 19 59-45	Pulley	Out of stock	£47.77 £39.81
33	HV596 13 48-01	Nut	Out of stock	£1.04 £0.87
34	HV596 13 61-01	Bolt	Out of stock	£6.54 £5.45
36	HV532 19 61-06	Pulley	Out of stock	£79.80 £66.50
40	HV532 40 91-49	Nut	Out of stock	£4.51 £3.76
41	HV584 95 39-01	Bolt	Out of stock	£5.04 £4.20
46	HV532 13 77-29	Screw	Out of stock	£2.40 £2.00
56	HV532 19 90-92	Spacer	Out of stock	£6.66 £5.55
57	HV817 00 06-16	Screw	Out of stock	£5.33 £4.44
68	HV584 45 31-01	Belt	Out of stock	£63.60 £53.00
69	HV596 13 64-01	Bolt	In stock	£3.26 £2.72
117	HV532 17 48-73	Wheel	Out of stock	£17.64 £14.70
145	HV532 17 79-68	Pulley	Out of stock	£50.77 £42.31
147	HV532 19 72-51	Spring	Out of stock	£15.66 £13.05
188	HV532 19 51-61	Stud	Out of stock	£2.44 £2.03
189	HV873 90 05-00	Nut	Out of stock	£2.26 £1.88
197	HV734 11 72-01	Washer	Out of stock	£2.02 £1.68
198	HV532 40 31-49	Plate	Out of stock	£25.84 £21.53
199	HV532 40 31-50	Plate	Out of stock	£27.91 £23.26
200	HV532 41 35-24	Washer	Out of stock	£7.19 £5.99
206	HV532 42 30-62	Nut	Out of stock	£1.21 £1.01
208	HV817 67 06-08	Screw	Out of stock	£4.42 £3.68
209	HV588 80 88-01	Cover	Out of stock	£21.74 £18.12
241	HV532 15 29-27	Screw	Out of stock	£2.12 £1.77
242	HV532 41 55-98	Hose Coupling	In stock	£5.17 £4.31
247	HV532 43 02-63	Shield	Out of stock	£20.22 £16.85
248	HV532 43 02-62	Shield	Out of stock	£17.62 £14.68
254	HV532 43 02-64	Shield	Out of stock	£65.16 £54.30
