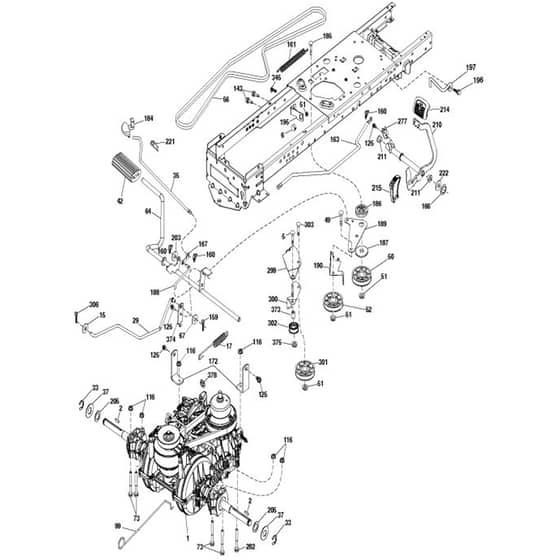

McCulloch M200-117T - 96041033901 - 2014-04 - Drive Parts Diagram

Name: McCulloch M200-117T - 96041033901 - 2014-04 - Drive Parts Diagram
SKU: m200_117t_96041033901_2014_04_drive-group
Price: 0.62 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M200-117T - 96041033901 - 2014-04 - Drive Parts Diagram

Description

McCulloch M200-117T - 96041033901 - 2014-04 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Out of stock	Key	£6.48 £5.40
17	HV501 48 71-01 Out of stock	Spring	£7.46 £6.22
29	HV584 82 31-01 Out of stock	Rod	£11.81 £9.84
33	HV812 00 00-01 Out of stock	Retainer Ring	£0.74 £0.62
35	HV583 86 45-01 Out of stock	Rod	£19.88 £16.57
37	HV532 18 89-67 In stock	Washer	£4.56 £3.80
49	HV872 11 06-14 Out of stock	Bolt	£6.85 £5.71
50	HV532 19 43-27 Out of stock	Pulley	£41.48 £34.57
51	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
52	HV532 19 43-26 Out of stock	Pulley	£40.80 £34.00
56	HV581 60 38-01 Out of stock	Belt	£61.82 £51.52
64	HV532 44 83-53 Out of stock	Shaft	£66.96 £55.80
67	HV582 58 01-01 Out of stock	Washer	£2.11 £1.76
73	HV874 49 05-44 Out of stock	Screw	£6.65 £5.54
99	HV532 43 59-35 Out of stock	Rod	£8.71 £7.26
116	HV873 90 05-00 Out of stock	Nut	£2.60 £2.17
125	HV532 42 88-67 Out of stock	Screw	£3.85 £3.21
143	HV817 49 05-08 Out of stock	Screw	£3.48 £2.90
160	HV532 16 94-84 Out of stock	Pin	£4.00 £3.33
161	HV532 10 57-09 Out of stock	Spring	£15.65 £13.04
163	HV587 84 79-01 Out of stock	Rod	£27.89 £23.24
166	HV532 42 91-64 Out of stock	Nut	£1.74 £1.45
167	HV532 40 52-57 Out of stock	Latch	£5.60 £4.67
172	HV583 97 42-01 Out of stock	Strap	£8.09 £6.74
185	HV872 11 06-22 Out of stock	Bolt	£8.09 £6.74
186	HV532 19 43-21 Out of stock	Spacer	£13.68 £11.40
188	HV582 21 70-01 Out of stock	Link	£9.95 £8.29
189	HV532 19 43-17 Out of stock	Plate	£14.29 £11.91
195	HV581 50 46-01 Out of stock	Bracket	£5.96 £4.97
196	HV817 00 06-16 Out of stock	Screw	£6.11 £5.09
197	HV585 65 86-01 Out of stock	Clutch	£11.81 £9.84
203	HV734 11 63-01 Out of stock	Washer	£2.57 £2.14
205	HV532 12 17-48 Out of stock	Washer	£5.74 £4.78
210	HV588 92 10-01 Out of stock	Pedal	£37.31 £31.09
211	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
215	HV532 44 82-54 Out of stock	Pad	£11.81 £9.84
221	HV532 40 31-87 Out of stock	Spring	£3.72 £3.10
222	HV879 21 20-10 Out of stock	Washer	£5.46 £4.55
277	HV532 44 85-00 Out of stock	Link	£8.76 £7.30
299	HV532 41 56-83 Out of stock	Bracket	£13.68 £11.40
300	HV532 41 56-81 Out of stock	Idler	£8.71 £7.26
301	HV532 41 56-80 Out of stock	Idler	£40.12 £33.43
302	HV581 42 05-01 Out of stock	Pulley	£26.96 £22.47
303	HV872 11 06-18 Out of stock	Bolt	£7.46 £6.22
306	HV876 02 04-16 Out of stock	Split Pin	£1.91 £1.59
373	HV581 46 18-01 Out of stock	Spacer	£4.37 £3.64
374	HV581 47 52-01 Out of stock	Arm	£7.46 £6.22
375	HV596 32 26-01 Out of stock	Nut	£3.24 £2.70
