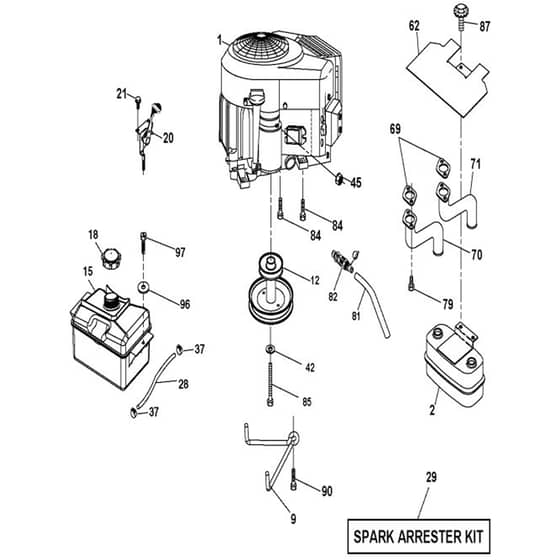

McCulloch M200-107TC - 96051011700 - 2013-06 - Engine Parts Diagram

Name: McCulloch M200-107TC - 96051011700 - 2013-06 - Engine Parts Diagram
SKU: m200_107tc_96051011700_2013_06_engine-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M200-107TC - 96051011700 - 2013-06 - Engine Parts Diagram

Description

McCulloch M200-107TC - 96051011700 - 2013-06 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 14 97-23 Out of stock	Muffler	£123.36 £102.80
9	HV596 50 15-02 Out of stock	Belt Guide	£15.68 £13.07
12	HV583 84 78-01 Out of stock	Keeper	£8.88 £7.40
15	HV581 28 99-01 In stock	Fuel Tank	£49.57 £41.31
18	HV581 07 55-01 Out of stock	Fuel Cap	£26.09 £21.74
20	HV532 42 35-02 Out of stock	Control	£14.45 £12.04
21	HV532 41 63-58 Out of stock	Screw	£1.67 £1.39
28	HV532 13 70-40 Out of stock	Hose	£15.53 £12.94
29	HV532 13 71-80 Out of stock	Spark Arrester Kit	£39.62 £33.02
37	HV532 12 34-87 Out of stock	Hose Clamp	£0.64 £0.53
42	HV810 04 07-00 Out of stock	Washer	£3.28 £2.73
62	HV532 43 40-17 Out of stock	Shield	£18.53 £15.44
69	HV532 16 53-91 Out of stock	Gasket	£5.84 £4.87
79	HV532 18 39-06 Out of stock	Screw	£3.73 £3.11
82	HV532 42 82-87 Out of stock	Plug	£13.55 £11.29
84	HV817 06 06-20 Out of stock	Screw	£5.50 £4.58
85	HV532 17 39-37 Out of stock	Bolt	£10.03 £8.36
87	HV532 17 18-77 Out of stock	Bolt	£4.19 £3.49
90	HV817 00 06-16 Out of stock	Screw	£5.33 £4.44
96	HV819 09 14-16 Out of stock	Washer	£2.60 £2.17
97	HV817 67 04-12 Out of stock	Screw	£4.42 £3.68
