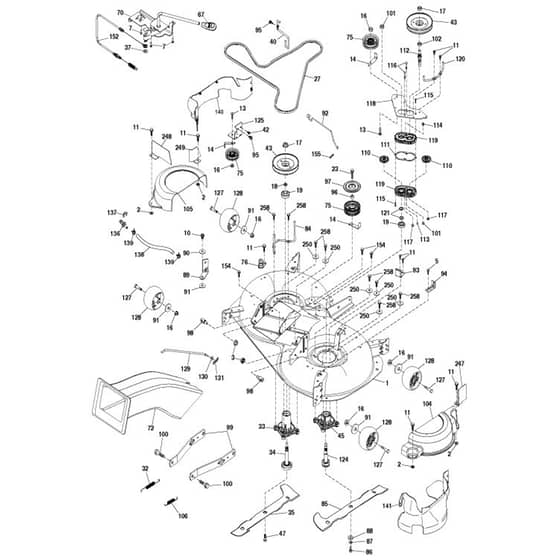

McCulloch M200-107TC - 96051006902 - 2016-01 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M200-107TC - 96051006902 - 2016-01 - Mower Deck - Cutting Deck Parts Diagram
SKU: m200_107tc_96051006902_2016_01_mower_deck_cutting_deck-group
Price: 0.80 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M200-107TC - 96051006902 - 2016-01 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M200-107TC - 96051006902 - 2016-01 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV581 96 49-01	Deck (--)	Out of stock	£948.00 £790.00
33	HV587 12 61-05	Mandrel Assembly Tall (Includes Housing (Key #33)+ (Shaft Key #34) And (Bearing Key #19) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) (--)	Out of stock	£124.32 £103.60
1	HV581 65 05-01	Mandrel Assembly Short (Includes Housing (Key #45)+ Shaft Assembly (Key #124)+ And Bearing (Key #19) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) (--)	Out of stock	£98.52 £82.10
2	HV532 42 30-62	Nut	Out of stock	£1.21 £1.01
3	HV873 90 05-00	Nut	Out of stock	£2.60 £2.17
5	HV817 00 05-10	Bolt	Out of stock	£3.48 £2.90
7	HV532 41 63-58	Screw	Out of stock	£1.99 £1.66
10	HV817 00 06-16	Screw	Out of stock	£6.11 £5.09
11	HV532 13 77-29	Screw	Out of stock	£2.40 £2.00
13	HV596 13 61-01	Bolt	Out of stock	£6.54 £5.45
16	HV532 40 91-49	Nut	Out of stock	£4.51 £3.76
17	HV596 13 48-01	Nut	Out of stock	£1.24 £1.03
18	HV532 18 76-90	Washer	Out of stock	£3.48 £2.90
19	HV532 11 04-85	Bearing	Out of stock	£7.96 £6.63
23	HV817 49 06-28	Screw	Out of stock	£7.46 £6.22
27	HV583 58 16-01	Belt	In stock	£59.78 £49.82
32	HV532 40 18-72	Spring	Out of stock	£7.39 £6.16
35	HV581 51 79-01	Blade	Out of stock	£44.28 £36.90
40	HV531 16 95-01	Belt Guide	Out of stock	£18.73 £15.61
42	HV532 42 88-67	Screw	Out of stock	£3.85 £3.21
43	HV583 56 82-01	Pulley	Out of stock	£54.62 £45.52
47	HV584 30 93-01	Screw	In stock	£8.53 £7.11
67	HV532 40 30-12	Handle	Out of stock	£13.06 £10.88
75	HV597 02 50-01	Pulley	Out of stock	£48.25 £40.21
85	HV581 51 80-02	Blade	Out of stock	£66.00 £55.00
86	HV583 11 70-01	Bolt	Out of stock	£7.21 £6.01
88	HV532 14 02-96	Washer	Out of stock	£8.09 £6.74
90	HV532 19 90-92	Spacer	Out of stock	£6.66 £5.55
94	HV532 19 72-50	Bracket	Out of stock	£8.71 £7.26
95	HV817 00 06-12	Screw	Out of stock	£5.60 £4.67
98	HV532 19 51-61	Stud	Out of stock	£2.86 £2.38
100	HV532 19 65-39	Bolt	Out of stock	£5.94 £4.95
102	HV532 40 25-11	Spacer	Out of stock	£6.85 £5.71
104	HV581 71 40-01	Cover	Out of stock	£28.60 £23.83
105	HV532 44 47-55	Cover	Out of stock	£34.80 £29.00
106	HV532 19 32-16	Ressort Retour Frein De Lame	Out of stock	£8.09 £6.74
110	HV587 93 48-01	Gear	Out of stock	£52.55 £43.79
111	HV583 51 40-01	Gasket	Out of stock	£7.64 £6.37
114	HV588 17 05-01	Breather	Out of stock	£14.92 £12.43
117	HV586 66 89-01	Nut	Out of stock	£2.87 £2.39
119	HV583 52 76-01	Gearcase	Out of stock	£59.40 £49.50
128	HV532 17 48-73	Wheel	Out of stock	£19.82 £16.52
130	HV734 11 72-01	Washer	Out of stock	£2.02 £1.68
131	HV532 19 42-08	Pin	Out of stock	£1.67 £1.39
137	HV812 00 00-29	Retainer Ring	In stock	£0.96 £0.80
139	HV532 44 07-42	Clamp	Out of stock	£1.00 £0.83
140	HV501 58 00-01	Guard	Out of stock	£68.64 £57.20
141	HV501 57 96-02	Guard	Out of stock	£68.64 £57.20
152	HV583 59 17-01	Cable	Out of stock	£17.40 £14.50
154	HV532 19 98-55	Screw	Out of stock	£1.63 £1.36
155	HV532 00 44-97	Retainer Ring	Out of stock	£1.74 £1.45
247	HV581 26 34-02	Guard	Out of stock	£16.32 £13.60
249	HV581 26 35-02	Guard	Out of stock	£15.56 £12.97
258	HV584 95 39-01	Bolt	Out of stock	£5.60 £4.67
