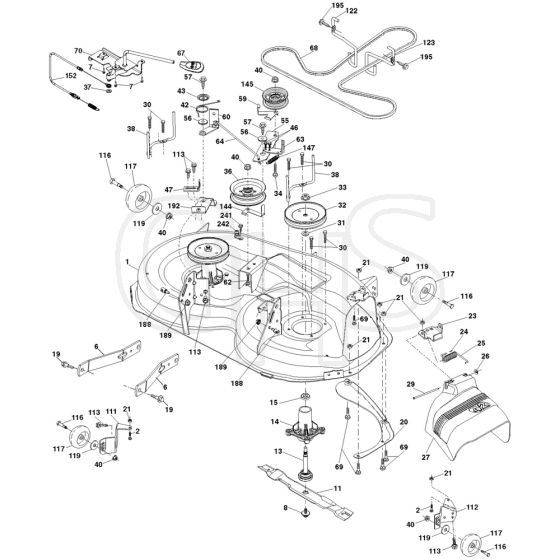

McCulloch M20-42T - 290820 - 2013-01 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M20-42T - 290820 - 2013-01 - Mower Deck - Cutting Deck Parts Diagram
SKU: m20_42t_290820_2013_01_mower_deck_cutting_deck-group
Price: 1.03 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M20-42T - 290820 - 2013-01 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M20-42T - 290820 - 2013-01 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 19 28-70	Spindle Mandrel Assembly (Includes Housing (Key# 14)+ Shaft Assembly (Key# 13)+ Bearing (Key# 15) And Nut (Key#33) Only - Pulley/Washer And Blade Bolt/Washer Not Included) (--)	Out of stock	£118.68 £98.90
2	HV595 90 16-01	Bolt	Out of stock	£4.30 £3.58
7	HV532 41 63-58	Screw	Out of stock	£1.99 £1.66
8	HV532 19 30-03	Screw	In stock	£16.43 £13.69
11	HV532 13 89-71	Blade	Out of stock	£31.91 £26.59
13	HV532 19 28-72	Shaft Assy	Out of stock	£153.76 £128.13
14	HV587 81 97-01	Bearing Housing	Out of stock	£150.84 £125.70
15	HV532 11 04-85	Bearing	Out of stock	£7.96 £6.63
19	HV532 19 65-39	Bolt	Out of stock	£5.94 £4.95
20	HV532 15 97-70	Rail	Out of stock	£26.74 £22.28
23	HV532 19 25-57	Hinge	Out of stock	£13.06 £10.88
24	HV532 10 53-04	Hub Cap	Out of stock	£3.35 £2.79
25	HV532 19 70-26	Torsion Spring	Out of stock	£10.68 £8.90
26	HV532 11 04-52	Nut	Out of stock	£1.64 £1.37
27	HV532 40 30-04	Shield	Out of stock	£56.57 £47.14
29	HV595 29 70-01	Shaft	Out of stock	£13.98 £11.65
30	HV584 95 39-01	Screw	Out of stock	£5.60 £4.67
31	HV532 18 76-90	Washer	Out of stock	£3.48 £2.90
32	HV532 19 59-45	Pulley	Out of stock	£53.26 £44.38
33	HV596 13 48-01	Nut	Out of stock	£1.24 £1.03
34	HV596 13 61-01	Bolt	Out of stock	£6.54 £5.45
36	HV532 19 61-06	Pulley	Out of stock	£89.16 £74.30
38	HV589 67 61-03	Keeper	Out of stock	£10.51 £8.76
40	HV532 40 91-49	Nut	Out of stock	£4.51 £3.76
42	HV532 19 84-10	Spring	Out of stock	£4.86 £4.05
43	HV532 19 72-56	Spring	Out of stock	£4.03 £3.36
46	HV532 13 77-29	Screw	Out of stock	£2.40 £2.00
47	HV532 19 72-50	Bracket	Out of stock	£8.71 £7.26
55	HV532 43 71-10	Arm	Out of stock	£18.04 £15.03
56	HV532 19 90-92	Spacer	Out of stock	£6.66 £5.55
57	HV817 00 06-16	Screw	Out of stock	£6.11 £5.09
62	HV872 11 06-16	Bolt	Out of stock	£6.85 £5.71
63	HV532 19 94-78	Arm	Out of stock	£24.26 £20.22
67	HV532 40 30-12	Handle	Out of stock	£13.06 £10.88
68	HV598 55 91-01	Belt	Out of stock	£63.96 £53.30
69	HV596 13 64-01	Bolt	In stock	£3.26 £2.72
113	HV817 00 05-10	Bolt	Out of stock	£3.48 £2.90
117	HV532 18 86-06	Wheel	Out of stock	£15.25 £12.71
119	HV734 11 72-01	Washer	Out of stock	£2.02 £1.68
122	HV531 16 95-01	Belt Guide	Out of stock	£18.73 £15.61
123	HV531 16 97-01	Belt Guide	Out of stock	£12.98 £10.82
145	HV532 17 79-68	Pulley	Out of stock	£58.08 £48.40
147	HV532 40 19-71	Spring	Out of stock	£5.34 £4.45
152	HV532 43 51-11	Cable	In stock	£65.28 £54.40
188	HV532 19 51-61	Stud	Out of stock	£2.86 £2.38
189	HV873 90 05-00	Nut	Out of stock	£2.60 £2.17
195	HV817 00 06-12	Screw	Out of stock	£5.60 £4.67
241	HV532 15 29-27	Screw	Out of stock	£2.48 £2.07
242	HV532 41 55-98	Hose Coupling	Out of stock	£5.96 £4.97
