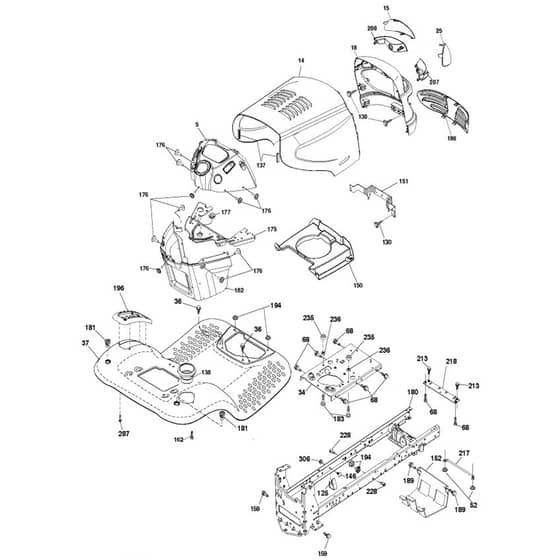

McCulloch M19542 - 96041027401 - 2012-12 - Chassis & Enclosures Parts Diagram

Name: McCulloch M19542 - 96041027401 - 2012-12 - Chassis & Enclosures Parts Diagram
SKU: m19542_96041027401_2012_12_chassis_enclosures-group
Price: 0.72 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M19542 - 96041027401 - 2012-12 - Chassis & Enclosures Parts Diagram

Description

McCulloch M19542 - 96041027401 - 2012-12 - Chassis & Enclosures Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
15	HV532 18 97-54 Out of stock	Lens Grille Lh	£14.53 £12.11
25	HV532 18 97-55 Out of stock	Lens Grille Rh	£22.39 £18.66
34	HV580 91 08-01 Out of stock	Chassis	£110.76 £92.30
68	HV817 49 05-08 Out of stock	Screw	£3.48 £2.90
125	HV581 68 48-01 Out of stock	Clip	£0.86 £0.72
130	HV532 41 63-58 Out of stock	Screw	£1.99 £1.66
137	HV532 18 49-21 Out of stock	Bumper	£6.94 £5.78
146	HV581 85 79-01 Out of stock	Bolt	£2.76 £2.30
151	HV532 40 78-07 Out of stock	Bracket	£49.72 £41.43
152	HV532 19 95-35 Out of stock	Shield	£46.63 £38.86
159	HV817 00 06-12 Out of stock	Screw	£5.60 £4.67
162	HV532 14 24-32 Out of stock	Screw	£2.23 £1.86
176	HV532 40 07-76 Out of stock	Screw	£1.99 £1.66
177	HV532 19 52-28 Out of stock	Bushing	£10.33 £8.61
183	HV874 52 05-20 Out of stock	Bolt	£4.58 £3.82
189	HV532 42 88-67 Out of stock	Screw	£3.85 £3.21
194	HV873 90 05-00 Out of stock	Nut	£2.60 £2.17
207	HV532 18 38-33 Out of stock	Support De Phare Droit	£28.74 £23.95
208	HV532 18 38-32 Out of stock	Support De Phare Gauche	£29.57 £24.64
228	HV532 19 51-61 Out of stock	Stud	£2.86 £2.38
235	HV532 40 61-29 Out of stock	Spacer	£9.43 £7.86
236	HV873 93 05-00 Out of stock	Nut	£2.23 £1.86
287	HV817 60 04-06 Out of stock	Screw	£1.80 £1.50
306	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
