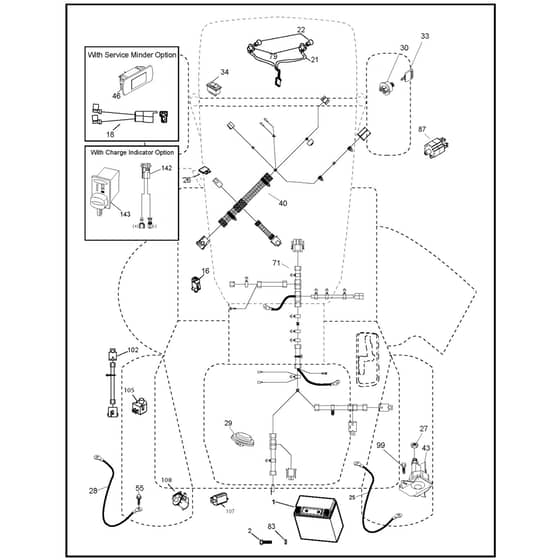

McCulloch M185107TC - 96051006700 - 2012-11 - Electrical Parts Diagram

Name: McCulloch M185107TC - 96051006700 - 2012-11 - Electrical Parts Diagram
SKU: m185107tc_96051006700_2012_11_electrical-group
Price: 1.38 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M185107TC - 96051006700 - 2012-11 - Electrical Parts Diagram

Description

McCulloch M185107TC - 96051006700 - 2012-11 - Electrical Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV583 51 67-01 Out of stock	Battery	£91.64 £76.37
2	HV532 44 09-23 Out of stock	Screw	£5.45 £4.54
16	HV532 17 61-38 Out of stock	Micro Switch	£14.38 £11.98
21	HV532 40 02-52 Out of stock	Harness	£22.45 £18.71
22	HV532 00 41-52 Out of stock	Bulb	£4.04 £3.37
25	HV583 51 69-01 Out of stock	Cable	£7.20 £6.00
26	HV532 17 51-58 Out of stock	Fuse	£4.66 £3.88
28	HV583 55 65-01 Out of stock	Cable	£16.12 £13.43
29	HV532 40 15-45 Out of stock	Switch	£19.24 £16.03
30	HV532 19 33-50 Out of stock	Ignition Module	£29.44 £24.53
33	HV532 41 19-35 Out of stock	Key	£8.57 £7.14
34	HV532 11 07-12 Out of stock	Switch	£13.60 £11.33
43	HV582 04 28-02 In stock	Solenoid	£20.44 £17.03
71	HV581 02 33-01 Out of stock	Harness	£72.59 £60.49
83	HV532 43 67-74 Out of stock	Nut	£1.66 £1.38
87	HV583 38 57-01 Out of stock	Switch	£18.67 £15.56
99	HV539 99 00-71 Out of stock	Screw	£1.75 £1.46
102	HV581 02 35-01 Out of stock	Harness	£13.10 £10.92
105	HV532 40 75-68 Out of stock	Switch	£16.60 £13.83
107	HV583 10 07-01 Out of stock	Switch Fbi	£14.82 £12.35
108	HV532 42 10-62 Out of stock	Switch	£14.10 £11.75
