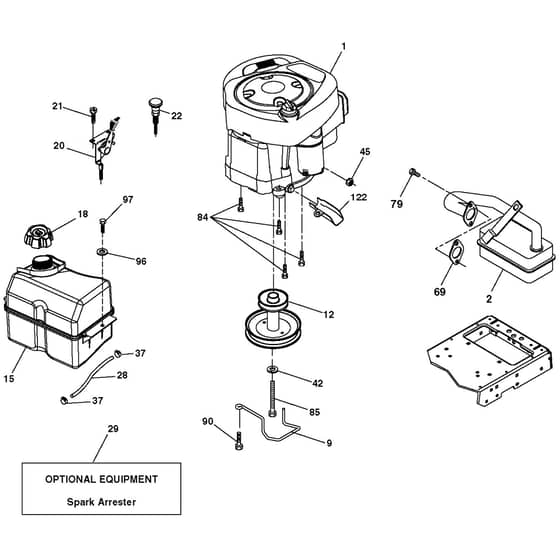

McCulloch M185107TC - 96051006602 - 2013-07 - Engine Parts Diagram

Name: McCulloch M185107TC - 96051006602 - 2013-07 - Engine Parts Diagram
SKU: m185107tc_96051006602_2013_07_engine-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M185107TC - 96051006602 - 2013-07 - Engine Parts Diagram

Description

McCulloch M185107TC - 96051006602 - 2013-07 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 13 73-52 Out of stock	Muffler	£87.25 £72.71
9	HV596 50 15-02 Out of stock	Belt Guide	£15.29 £12.74
12	HV586 47 85-01 In stock	Pulley	£20.44 £17.03
15	HV581 28 99-01 In stock	Fuel Tank	£48.32 £40.27
18	HV581 07 55-01 Out of stock	Fuel Cap	£25.43 £21.19
20	HV532 40 15-08 Out of stock	Throttle Control	£29.36 £24.47
21	HV532 41 63-58 Out of stock	Screw	£1.63 £1.36
28	HV532 13 70-40 Out of stock	Hose	£15.14 £12.62
29	HV532 13 71-80 Out of stock	Spark Arrester Kit	£38.62 £32.18
37	HV532 12 34-87 Out of stock	Hose Clamp	£0.60 £0.50
42	HV810 04 07-00 Out of stock	Washer	£3.20 £2.67
69	HV532 27 22-93 Out of stock	Gasket	£5.36 £4.47
79	HV596 13 42-01 Out of stock	Screw	£3.70 £3.08
84	HV817 06 06-20 Out of stock	Screw	£5.36 £4.47
85	HV532 17 39-37 Out of stock	Bolt	£9.78 £8.15
90	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
96	HV819 09 14-16 Out of stock	Washer	£2.54 £2.12
97	HV817 67 04-12 Out of stock	Screw	£4.30 £3.58
122	HV532 42 19-22 Out of stock	Extension Pipe	£6.48 £5.40
