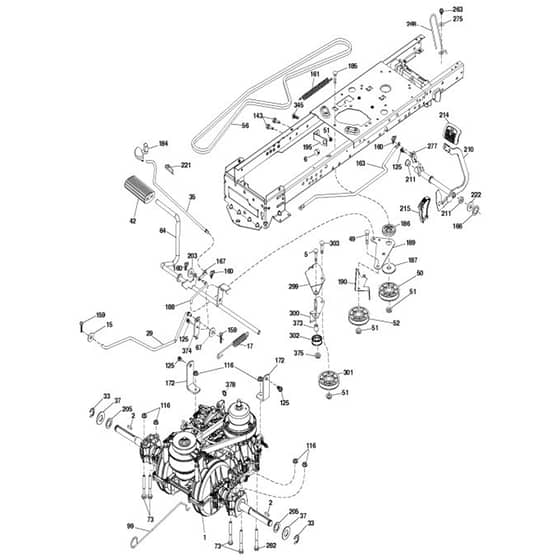

McCulloch M185-117T - 96041035600 - 2013-06 - Drive Parts Diagram

Name: McCulloch M185-117T - 96041035600 - 2013-06 - Drive Parts Diagram
SKU: m185_117t_96041035600_2013_06_drive-group
Price: 0.56 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M185-117T - 96041035600 - 2013-06 - Drive Parts Diagram

Description

McCulloch M185-117T - 96041035600 - 2013-06 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83	Key	Out of stock	£6.48 £5.40
29	HV584 82 31-01	Rod	Out of stock	£10.13 £8.44
33	HV812 00 00-01	Retainer Ring	Out of stock	£0.67 £0.56
35	HV583 86 45-01	Rod	Out of stock	£17.05 £14.21
37	HV532 18 89-67	Washer	Out of stock	£4.34 £3.62
49	HV872 11 06-14	Bolt	Out of stock	£5.80 £4.83
50	HV532 19 43-27	Pulley	Out of stock	£36.06 £30.05
52	HV532 19 43-26	Pulley	Out of stock	£36.78 £30.65
56	HV581 60 38-01	Belt	Out of stock	£53.96 £44.97
64	HV532 44 83-53	Shaft	Out of stock	£63.06 £52.55
67	HV734 11 72-01	Washer	Out of stock	£2.02 £1.68
73	HV874 49 05-44	Screw	Out of stock	£6.65 £5.54
99	HV532 43 59-35	Rod	Out of stock	£7.08 £5.90
116	HV873 90 05-00	Nut	Out of stock	£2.26 £1.88
125	HV532 42 88-67	Screw	Out of stock	£3.28 £2.73
143	HV817 49 05-08	Screw	Out of stock	£3.04 £2.53
160	HV532 16 94-84	Pin	Out of stock	£4.00 £3.33
161	HV532 10 57-09	Spring	Out of stock	£15.65 £13.04
163	HV583 97 13-01	Rod	Out of stock	£18.20 £15.17
166	HV532 42 91-64	Nut	Out of stock	£1.45 £1.21
167	HV532 40 52-57	Latch	Out of stock	£4.87 £4.06
172	HV583 97 42-01	Strap	Out of stock	£7.06 £5.88
185	HV872 11 06-22	Bolt	Out of stock	£6.62 £5.52
186	HV532 19 43-21	Spacer	Out of stock	£11.56 £9.63
188	HV532 19 43-23	Link	Out of stock	£8.10 £6.75
189	HV532 19 43-17	Plate	Out of stock	£12.43 £10.36
195	HV581 50 46-01	Bracket	Out of stock	£5.21 £4.34
203	HV734 11 63-01	Washer	Out of stock	£2.57 £2.14
205	HV532 12 17-48	Washer	Out of stock	£5.17 £4.31
210	HV532 44 82-70	Pedal	Out of stock	£56.29 £46.91
211	HV532 12 01-83	Bearing	Out of stock	£5.96 £4.97
215	HV532 44 82-54	Pad	Out of stock	£10.34 £8.62
221	HV532 40 31-87	Spring	Out of stock	£3.24 £2.70
222	HV879 21 20-10	Washer	Out of stock	£4.78 £3.98
263	HV817 00 06-12	Screw	Out of stock	£4.87 £4.06
277	HV532 44 85-00	Link	Out of stock	£8.76 £7.30
299	HV532 41 56-83	Bracket	Out of stock	£11.53 £9.61
300	HV532 41 56-81	Idler	Out of stock	£7.30 £6.08
301	HV532 41 56-80	Idler	Out of stock	£35.11 £29.26
302	HV581 42 05-01	Pulley	Out of stock	£23.59 £19.66
303	HV872 11 06-18	Bolt	Out of stock	£6.19 £5.16
373	HV581 46 18-01	Spacer	Out of stock	£3.80 £3.17
374	HV581 47 52-01	Arm	Out of stock	£6.08 £5.07
375	HV596 32 26-01	Nut	Out of stock	£3.24 £2.70
378	HV584 28 77-01	Nut	Out of stock	£1.28 £1.07
