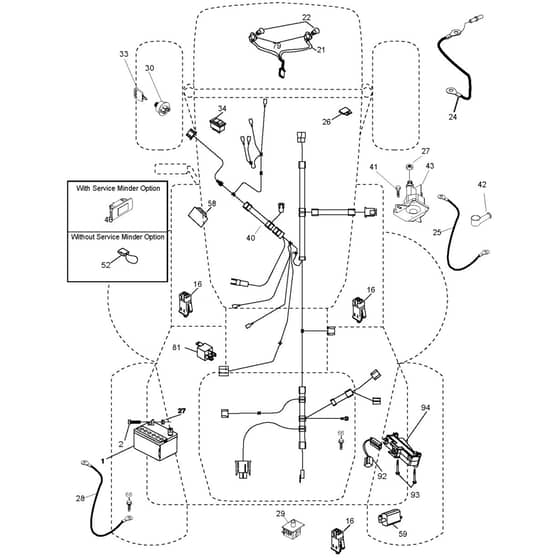

McCulloch M175H38RB - 96061030701 - 2011-05 - Electrical Parts Diagram

Name: McCulloch M175H38RB - 96061030701 - 2011-05 - Electrical Parts Diagram
SKU: m175h38rb_96061030701_2011_05_electrical-group
Price: 1.73 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M175H38RB - 96061030701 - 2011-05 - Electrical Parts Diagram

Description

McCulloch M175H38RB - 96061030701 - 2011-05 - Electrical Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV577 04 16-01 Out of stock	Battery	£112.02 £93.35
2	HV874 76 04-12 Out of stock	Bolt	£2.08 £1.73
16	HV532 17 61-38 Out of stock	Micro Switch	£14.38 £11.98
22	HV532 00 41-52 Out of stock	Bulb	£4.04 £3.37
24	HV532 16 59-87 Out of stock	Cable	£30.66 £25.55
25	HV532 42 12-99 Out of stock	Cable	£18.82 £15.68
26	HV532 17 51-58 Out of stock	Fuse	£4.66 £3.88
29	HV532 19 27-49 Out of stock	Switch.Seat.Dp W/Ramps	£15.31 £12.76
30	HV532 19 33-50 Out of stock	Ignition Module	£29.44 £24.53
33	HV532 41 19-33 Out of stock	Key	£8.57 £7.14
34	HV532 11 07-12 Out of stock	Switch	£13.60 £11.33
43	HV582 04 28-02 In stock	Solenoid	£20.44 £17.03
59	HV583 10 07-01 Out of stock	Switch Fbi	£14.82 £12.35
66	HV817 49 06-08 Out of stock	Screw	£4.30 £3.58
81	HV532 10 97-48 Out of stock	Relay	£12.32 £10.27
94	HV532 19 18-34 Out of stock	Module.Reverse.Ros	£18.64 £15.53
