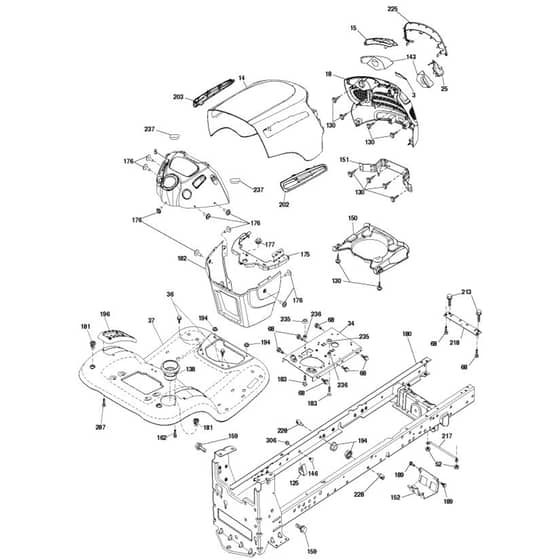

McCulloch M165-107T - 96041029401 - 2012-12 - Chassis & Enclosures Parts Diagram

Name: McCulloch M165-107T - 96041029401 - 2012-12 - Chassis & Enclosures Parts Diagram
SKU: m165_107t_96041029401_2012_12_chassis_enclosures-group
Price: 0.72 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M165-107T - 96041029401 - 2012-12 - Chassis & Enclosures Parts Diagram

Description

McCulloch M165-107T - 96041029401 - 2012-12 - Chassis & Enclosures Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV578 89 71-01	Decal	Out of stock	£6.95 £5.79
15	HV581 05 58-01	Lens	Out of stock	£1.56 £1.30
25	HV581 05 59-01	Lens	Out of stock	£15.84 £13.20
34	HV580 91 08-01	Chassis	Out of stock	£96.84 £80.70
37	HV532 42 07-96	Fender	Out of stock	£231.00 £192.50
68	HV817 49 05-08	Screw	Out of stock	£3.04 £2.53
125	HV581 68 48-01	Clip	Out of stock	£0.86 £0.72
130	HV532 41 63-58	Screw	Out of stock	£1.67 £1.39
143	HV581 05 60-02	Insert	Out of stock	£5.54 £4.62
146	HV581 85 79-01	Bolt	Out of stock	£2.76 £2.30
150	HV532 40 02-67	Air Conductor	Out of stock	£37.18 £30.98
151	HV532 18 75-68	Bracket	Out of stock	£37.50 £31.25
152	HV532 19 95-35	Shield	Out of stock	£40.72 £33.93
159	HV817 00 06-12	Screw	Out of stock	£4.87 £4.06
162	HV532 14 24-32	Screw	Out of stock	£1.90 £1.58
175	HV532 19 94-72	Plate	Out of stock	£52.55 £43.79
176	HV532 40 07-76	Screw	Out of stock	£1.67 £1.39
177	HV532 19 52-28	Bushing	Out of stock	£10.33 £8.61
182	HV532 40 71-76	Dash	Out of stock	£125.76 £104.80
183	HV874 52 05-20	Bolt	Out of stock	£4.58 £3.82
189	HV532 42 88-67	Screw	Out of stock	£3.28 £2.73
194	HV873 90 05-00	Nut	Out of stock	£2.26 £1.88
225	HV581 05 62-01	Trim	Out of stock	£20.70 £17.25
228	HV532 19 51-61	Stud	Out of stock	£2.44 £2.03
235	HV532 40 61-29	Spacer	Out of stock	£9.43 £7.86
236	HV873 93 05-00	Nut	Out of stock	£1.87 £1.56
287	HV817 60 04-06	Screw	Out of stock	£1.80 £1.50
306	HV532 40 91-49	Nut	Out of stock	£4.51 £3.76
