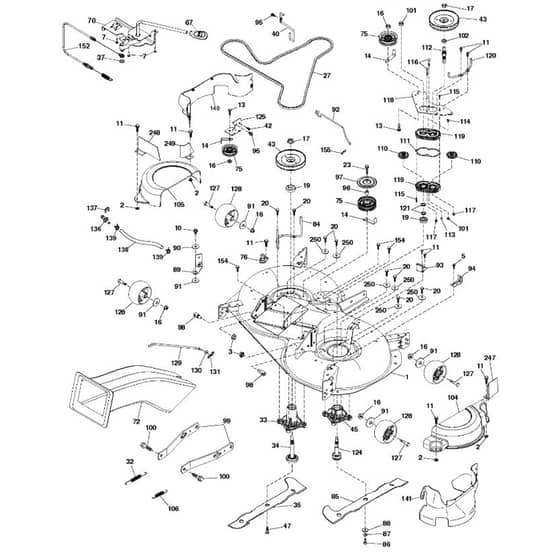

McCulloch M155-107TC - 96051006502 - 2013-07 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M155-107TC - 96051006502 - 2013-07 - Mower Deck - Cutting Deck Parts Diagram
SKU: m155_107tc_96051006502_2013_07_mower_deck_cutting_deck-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M155-107TC - 96051006502 - 2013-07 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M155-107TC - 96051006502 - 2013-07 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
33	HV587 12 61-05 Out of stock	Mandrel Assembly Tall (Includes Housing (Key #33)+ (Shaft Key #34) And (Bearing Key #19) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) (--)	£126.84 £105.70
0	HV581 96 49-01 Out of stock	Deck (--)	£1,009.67 £841.39
1	HV581 65 05-01 Out of stock	Mandrel Assembly Short (Includes Housing (Key #45)+ Shaft Assembly (Key #124)+ And Bearing (Key #19) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) (--)	£90.05 £75.04
2	HV532 42 30-62 Out of stock	Nut	£1.19 £0.99
3	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
5	HV817 00 05-10 Out of stock	Bolt	£2.96 £2.47
7	HV532 41 63-58 Out of stock	Screw	£1.63 £1.36
10	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
11	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
13	HV596 13 61-01 Out of stock	Bolt	£6.37 £5.31
16	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
17	HV596 13 48-01 Out of stock	Nut	£1.19 £0.99
19	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
20	HV584 95 39-01 Out of stock	Screw	£4.74 £3.95
23	HV817 49 06-28 Out of stock	Screw	£5.99 £4.99
27	HV583 58 16-01 In stock	Belt	£65.34 £54.45
32	HV532 40 18-72 Out of stock	Spring	£5.29 £4.41
35	HV581 51 79-01 Out of stock	Blade	£37.43 £31.19
40	HV531 16 95-01 Out of stock	Belt Guide	£18.25 £15.21
42	HV532 42 88-67 Out of stock	Screw	£3.20 £2.67
43	HV583 56 82-01 Out of stock	Pulley	£46.07 £38.39
47	HV584 30 93-01 Out of stock	Screw	£6.78 £5.65
67	HV532 40 30-12 Out of stock	Handle	£10.99 £9.16
70	HV532 40 12-46 Out of stock	Clutch	£63.95 £53.29
75	HV597 02 50-01 Out of stock	Pulley	£47.03 £39.19
85	HV581 51 80-02 Out of stock	Blade	£68.74 £57.28
86	HV583 11 70-01 Out of stock	Bolt	£5.75 £4.79
88	HV532 14 02-96 Out of stock	Washer	£7.86 £6.55
90	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
94	HV532 19 72-50 Out of stock	Bracket	£7.28 £6.07
95	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
98	HV532 19 51-61 Out of stock	Stud	£2.38 £1.98
100	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
102	HV532 40 25-11 Out of stock	Spacer	£5.45 £4.54
104	HV581 71 40-01 Out of stock	Cover	£24.29 £20.24
105	HV532 44 47-55 Out of stock	Cover	£29.48 £24.57
106	HV532 19 32-16 Out of stock	Ressort Retour Frein De Lame	£6.46 £5.38
110	HV587 93 48-01 Out of stock	Gear	£53.02 £44.18
111	HV583 51 40-01 Out of stock	Gasket	£7.19 £5.99
117	HV586 66 89-01 Out of stock	Nut	£2.20 £1.83
119	HV583 52 76-01 Out of stock	Gearcase	£54.14 £45.12
128	HV532 17 48-73 In stock	Wheel	£16.66 £13.88
130	HV734 11 72-01 Out of stock	Washer	£1.87 £1.56
131	HV532 19 42-08 Out of stock	Pin	£1.26 £1.05
137	HV812 00 00-29 Out of stock	Retainer Ring	£0.78 £0.65
139	HV532 44 07-42 Out of stock	Clamp	£0.77 £0.64
141	HV532 44 77-03 Out of stock	Guard	£42.37 £35.31
154	HV532 19 98-55 Out of stock	Screw	£1.60 £1.33
155	HV532 00 44-97 Out of stock	Retainer Ring	£1.51 £1.26
247	HV581 26 34-02 Out of stock	Guard	£15.91 £13.26
249	HV581 26 35-02 Out of stock	Guard	£13.24 £11.03
