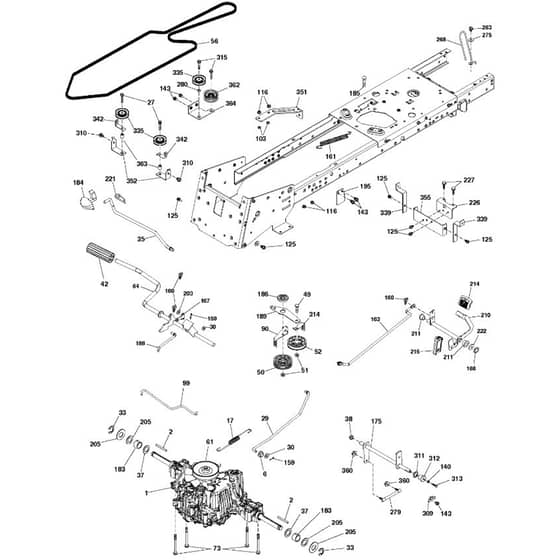

McCulloch M155-107TC - 96051006401 - 2012-12 - Drive Parts Diagram

Name: McCulloch M155-107TC - 96051006401 - 2012-12 - Drive Parts Diagram
SKU: m155_107tc_96051006401_2012_12_drive-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M155-107TC - 96051006401 - 2012-12 - Drive Parts Diagram

Description

McCulloch M155-107TC - 96051006401 - 2012-12 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Out of stock	Key	£6.16 £5.13
6	HV532 12 42-08 Out of stock	Mandrel	£237.68 £198.07
27	HV817 49 05-28 Out of stock	Screw	£4.15 £3.46
33	HV812 00 00-01 Out of stock	Retainer Ring	£0.60 £0.50
35	HV532 40 10-31 Out of stock	Rod	£10.43 £8.69
37	HV532 18 89-67 Out of stock	Washer	£4.24 £3.53
38	HV532 16 96-13 Out of stock	Sleeve	£4.60 £3.83
49	HV872 11 06-14 Out of stock	Bolt	£5.65 £4.71
50	HV532 19 43-27 Out of stock	Pulley	£35.15 £29.29
51	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
52	HV532 19 43-26 Out of stock	Pulley	£34.79 £28.99
56	HV591 06 53-10 In stock	Belt	£68.92 £57.43
73	HV874 49 05-44 Out of stock	Screw	£6.47 £5.39
116	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
125	HV532 42 88-67 Out of stock	Screw	£3.20 £2.67
140	HV596 02 98-01 Out of stock	Washer	£2.44 £2.03
143	HV817 49 05-08 Out of stock	Screw	£2.96 £2.47
160	HV532 16 94-84 Out of stock	Pin	£3.89 £3.24
161	HV532 10 57-09 Out of stock	Spring	£15.65 £13.04
166	HV532 42 91-64 Out of stock	Nut	£1.42 £1.18
167	HV532 40 52-57 Out of stock	Latch	£4.74 £3.95
175	HV532 42 93-59 Out of stock	Shaft	£34.49 £28.74
183	HV532 13 70-57 Out of stock	Spacer	£7.73 £6.44
184	HV532 44 14-07 Out of stock	Brake	£11.20 £9.33
185	HV872 11 06-22 Out of stock	Bolt	£7.48 £6.23
186	HV532 19 43-21 Out of stock	Spacer	£11.27 £9.39
188	HV532 19 43-23 Out of stock	Link	£7.91 £6.59
195	HV580 45 69-01 Out of stock	Bracket	£8.71 £7.26
203	HV734 11 63-01 Out of stock	Washer	£2.40 £2.00
205	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
210	HV532 40 09-80 Out of stock	Pedal Arm	£34.26 £28.55
211	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
221	HV532 40 31-87 Out of stock	Spring	£3.14 £2.62
222	HV879 21 20-10 Out of stock	Washer	£4.66 £3.88
263	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
312	HV532 16 56-14 Out of stock	Hub	£5.66 £4.72
313	HV874 78 04-16 Out of stock	Bolt	£3.41 £2.84
315	HV817 58 05-20 Out of stock	Bolt	£4.30 £3.58
335	HV532 19 95-34 In stock	Pulley	£17.75 £14.79
360	HV532 44 47-14 Out of stock	Nut	£1.78 £1.48
362	HV583 51 21-01 Out of stock	Idler	£22.57 £18.81
